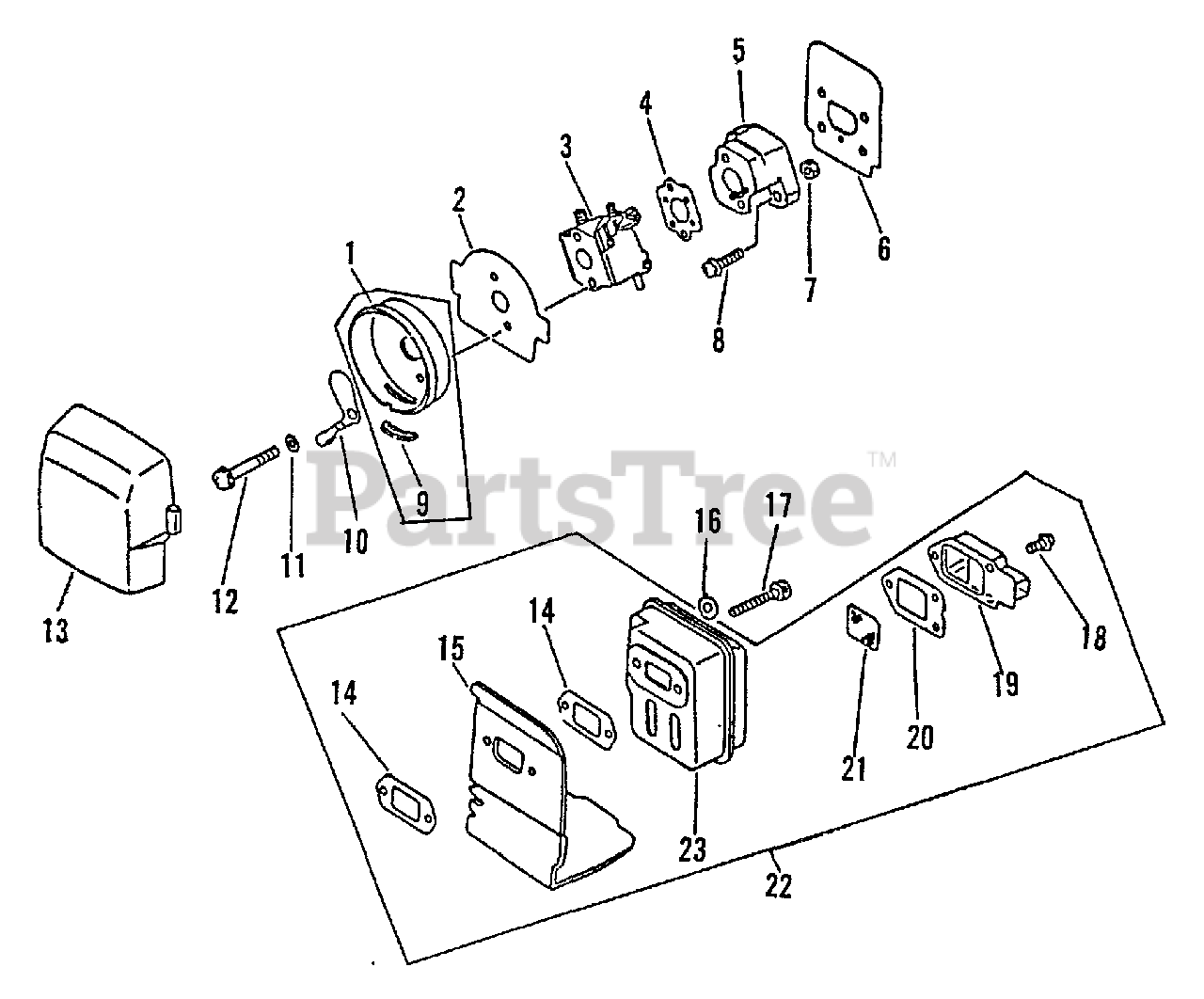

SRM-1501 - Echo String Trimmer (SN: 0083387 - 0135000) Intake, Exhaust Parts Diagram

String Trimmer

Intake, Exhaust Parts Diagram

  • Title

1

Echo 13030142030

Case, Air Cleaner

Note: Includes Item 9

$8.49

$

Usually ships in 2-4 days

0

2

Echo 13031942030

Fixture, Air Cleaner

$2.99

$

Usually ships in 2-4 days

0

3

Echo 12520044730

Carburator, C1U-K9
(Superseded to 12520044731)

$

$

Not available

4

Echo 13001642031

Gasket, Intake

$1.49

$

In Stock, Qty 20+

0

5

Echo 13001742031

Insulator

$11.99

$

In Stock, Qty 10

0

6

Echo 13001042031

Gasket, Intake
(Superseded to 13001042032)

$2.99

$

In Stock, Qty 20+

0

7

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90023805020

Screw 5x20

$0.99

$

In Stock, Qty 6

0

9

Echo 17881042030

Grommet, Choke
(Superseded to Discontinued)

Note: Included in Item 1

$

$

Not available

10

Echo 17851542030

Shutter, Choke

$2.99

$

Usually ships in 2-4 days

0

11

Echo 17851600830

Washer 5

$0.99

$

In Stock, Qty 20+

0

12

Echo 90024205057

Screw 5x57

$0.99

$

In Stock, only 3 left!

0

13

Echo 13031742030

Filter, Air
(Superseded to Discontinued)

$

$

Not available

14

Echo 14551042031

Gasket, Muffler
(Superseded to V104000160)

$2.49

$

In Stock, Qty 20+

0

15

Echo 14587144330

Cover, Muffler
(Superseded to 14587144331)

$5.99

$

In Stock, only 2 left!

0

16

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 90010505055

Bolt, H.S. 5x35

$1.99

$

In Stock, Qty 20+

0

18

Echo 90024204010

Screw 4x10

$0.99

$

In Stock, Qty 20+

0

19

Echo 14580942030

Holder, Screen

$8.99

$

Usually ships in 2-4 days

0

20

Echo 14586642031

Gasket, Muffler Lid

$2.99

$

In Stock, only 4 left!

0

21

Echo 14586240630

Screen, Muffler

$2.49

$

In Stock, Qty 17

0

22

Echo 14580042031

Muffler Asy
(Superseded to 14580642030)

Note: Includes Items 14, 15, 18-19, 23

$55.99

$

In Stock, only 2 left!

0

23

Echo 14580642030

Muffler

$55.99

$

In Stock, only 2 left!

0

Echo 88900042031

Gasket Kit
(Superseded to 88900042032)

$19.99

$

In Stock, only 2 left!

0
