SRM-1501 - Echo String Trimmer (SN: 0083387 - 0135000) Main Pipe, Support Handle, Throttle Control, Clutch Drum Parts Diagram

String Trimmer

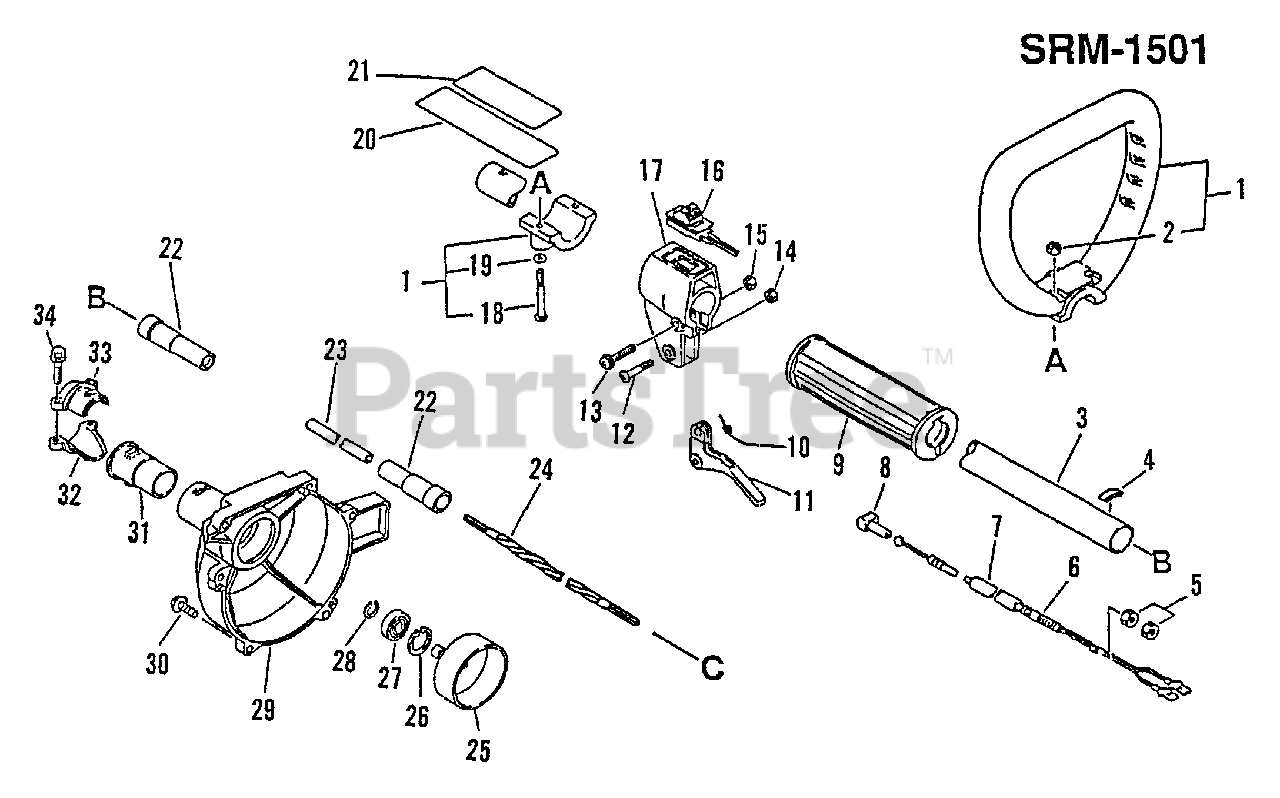

Main Pipe, Support Handle, Throttle Control, Clutch Drum Parts Diagram

  • Title

1

Echo 351201-08930

LOOP HANDLE ASSY

Note: Includes Items 2, 18, 19

$45.99

$

Usually ships in 2-4 days

0

2

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

3

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: Includes Items 20-23

$55.99

$

Usually ships in 2-4 days

0

4

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

5

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

6

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

7

Echo 178127-24030

PIPE

$0.99

$

In Stock, Qty 9

0

8

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

9

Echo 35101244730

GRIP
(Superseded to Discontinued)

$

$

Not available

10

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

11

Echo 17801024631

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

13

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

14

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

15

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

16

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

17

Echo 17802449230

BRACKET, THROTTLE CONTROL
(Superseded to Discontinued)

$

$

Not available

18

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

19

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

20

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.99

$

Usually ships in 2-4 days

0

21

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$7.49

$

Usually ships in 2-4 days

0

22

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

23

Echo 61021744730

LINER - FLEXIBLE
(Superseded to C507000260)

$

$

Not available

24

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, Qty 6

0

25

Echo 17500542030

DRUM, CLUTCH

$

$

Not available

26

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

27

Echo 90081406201

BEARING, BALL 6201-ZZ
(Superseded to 9405406201)

$14.99

$

In Stock, only 2 left!

0

28

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

29

Echo 10153548930

COVER, FAN

$

$

Not available

30

Echo 900238-04016

SCREW 4×16

$0.99

$

Usually ships in 2-4 days

0

31

Echo 61091027832

CUSHION

$9.49

$

In Stock, only 2 left!

0

32

Echo 61092327432

HOLDER

$7.49

$

Usually ships in 2-4 days

0

33

Echo 61092227432

HOLDER, MAIN PIPE - UPPER

$6.99

$

In Stock, only 2 left!

0

34

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0
