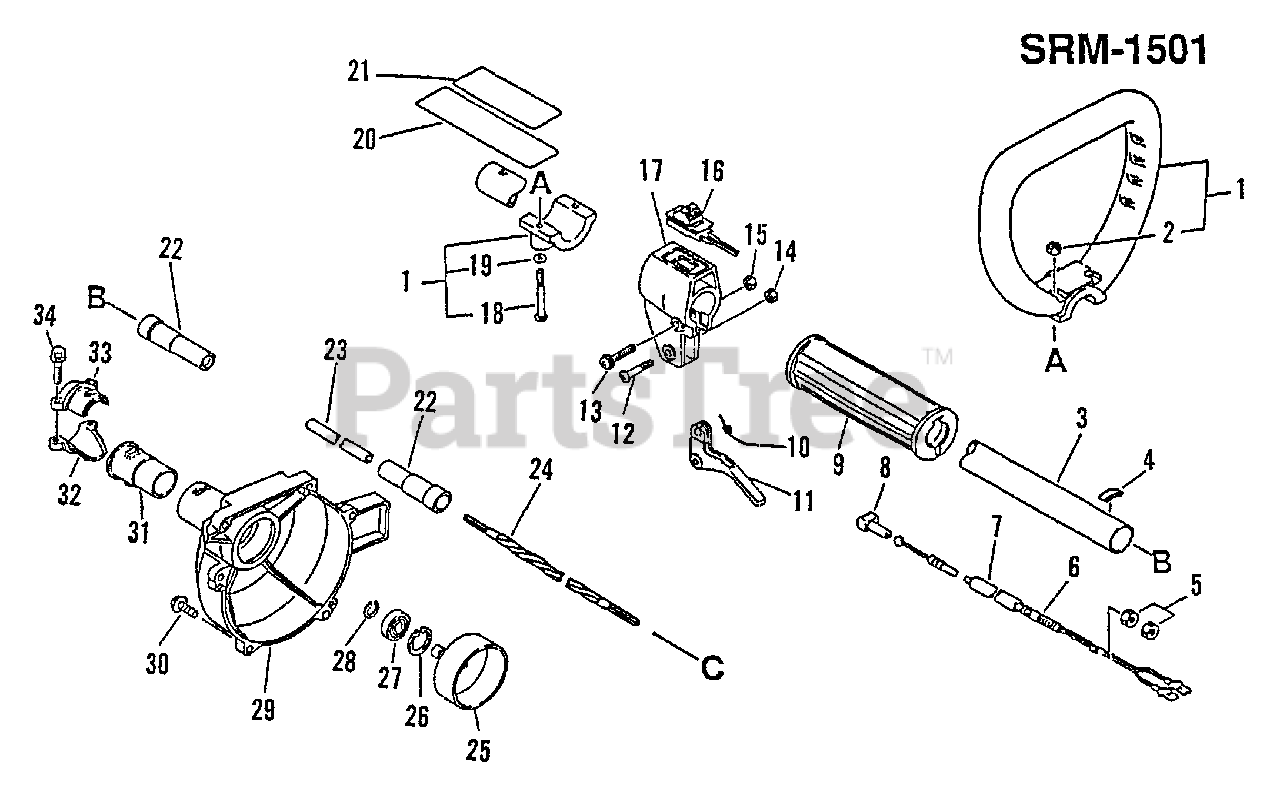

SRM-1501 - Echo String Trimmer (SN: 0083387 - 0135000) Main Pipe, Support Handle, Throttle Control, Clutch Drum Parts Diagram

String Trimmer

Main Pipe, Support Handle, Throttle Control, Clutch Drum Parts Diagram

  • Title

1

Echo 35120108930

Handle Asy, Loop

Note: Includes Items 2, 18, 19

$37.99

$

Usually ships in 2-4 days

0

2

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 61060944730

Housing, Driveshaft

Note: Includes Items 20-23

$51.99

$

In Stock, only 1 left!

0

4

Echo 89015204930

Label

$0.99

$

In Stock, Qty 9

0

5

Echo 90050200006

Nut 6 (3)

$0.99

$

In Stock, Qty 10

0

6

Echo 17800144430

Wire, Throttle

$10.99

$

In Stock, Qty 11

0

7

Echo 17812724030

Tube 10x11x160

$0.99

$

In Stock, Qty 10

0

8

Echo 17804805630

Holder, Throttle Wire

$1.99

$

In Stock, Qty 20+

0

9

Echo 35101244730

Grip, Handle
(Superseded to Discontinued)

$

$

Not available

10

Echo 17804306930

Spring, Throttle Return

$0.99

$

In Stock, Qty 20+

0

11

Echo 17801024631

Control, Throttle
(Superseded to Discontinued)

$

$

Not available

12

Echo 17811005330

Screw

$0.99

$

In Stock, Qty 17

0

13

Echo 90024205030

Screw 5x30

$0.99

$

In Stock, only 3 left!

0

14

Echo 90056000005

Locknut 5

$1.49

$

In Stock, Qty 20+

0

15

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

16

Echo 16340049230

Switch, Ignition
(Superseded to 16340155631)

$8.99

$

In Stock, Qty 13

0

17

Echo 17802449230

Bracket, Throttle
(Superseded to Discontinued)

$

$

Not available

18

Echo 90022005040

Screw 5x40

$0.99

$

In Stock, Qty 14

0

19

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

20

Echo 89016044430

Label, Caution
(Superseded to 89016052730)

$1.49

$

Usually ships in 2-4 days

0

21

Echo 89016047630

Label, Caution
(Superseded to 89016049630)

$6.49

$

Usually ships in 2-4 days

0

22

Echo 61024644730

Fixture, Liner

$1.49

$

In Stock, Qty 20+

0

23

Echo 61021744730

Liner, Flexible
(Superseded to C507000260)

$25.99

$

In Stock, Qty 20+

0

24

Echo 61001344730

Shaft, Flexible
(Superseded to C506000390)

$16.99

$

In Stock, Qty 20+

0

25

Echo 17500542030

Drum, Clutch

$

$

Not available

26

Echo 90070200028

Circlip 28

$1.49

$

In Stock, Qty 18

0

27

Echo 90081406201

Bearing, Ball 6201
(Superseded to 9405406201)

$11.99

$

Usually ships in 2-4 days

0

28

Echo 90070100012

Circlip 12

$0.99

$

In Stock, Qty 15

0

29

Echo 10153548930

Cover, Fan

$41.99

$

Usually ships in 2-4 days

0

30

Echo 90023804016

Screw 4x16
(Superseded to Discontinued)

$

$

Not available

31

Echo 61091027832

Cushion

$7.99

$

In Stock, only 1 left!

0

32

Echo 61092327432

Holder

$6.49

$

Usually ships in 2-4 days

0

33

Echo 61092227432

Holder

$5.99

$

Usually ships in 2-4 days

0

34

Echo 90014205025

Bolt 5x25

$0.99

$

In Stock, Qty 10

0
