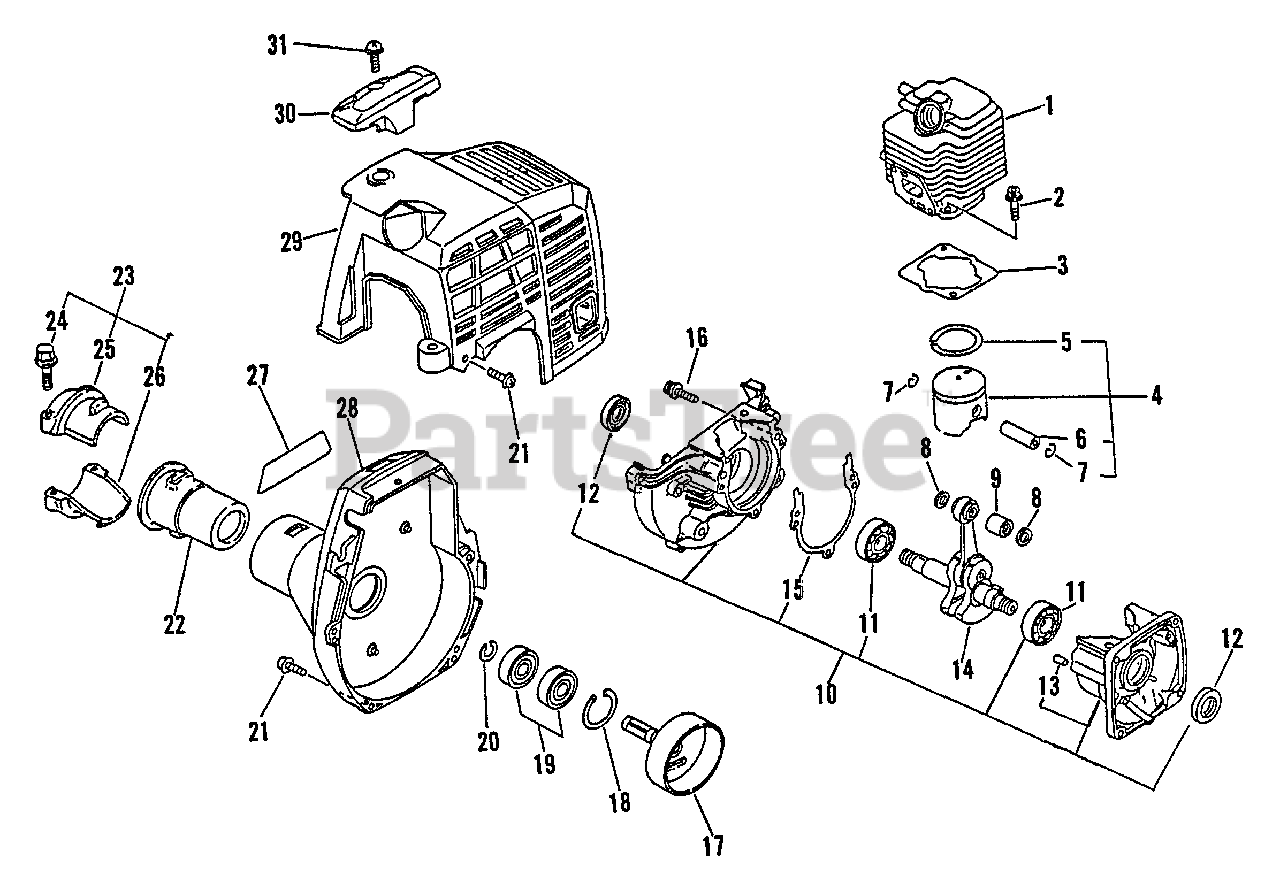

SRM-1501 - Echo String Trimmer (SN: 0135001 - 9999999) Engine, Engine Cover, Fan Case Parts Diagram

String Trimmer

Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

Echo 10101147630

Cylinder
(Superseded to 10101148730)

$151.99

$

Usually ships in 2-4 days

0

2

Echo 90016205022

Bolt, H.S. 5X22

$0.99

$

In Stock, Qty 5

0

3

Echo 10101044330

Gasket, Cylinder Base
(Superseded to 10101044331)

$4.99

$

In Stock, Qty 12

0

4

Echo 10000044330

Piston kit
(Superseded to 10000044331)

Note: Includes Items 5-8

$78.99

$

Usually ships in 2-4 days

0

5

Echo 10001105330

Ring, Piston

$10.99

$

In Stock, Qty 15

0

6

Echo 10001311520

Pin, Piston

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001504630

Circlip, Piston Pin

$0.99

$

In Stock, Qty 20+

0

8

Echo 10001411520

Spacer, Piston Pin

$3.99

$

Usually ships in 2-4 days

0

9

Echo 10001251230

Bearing, Needle
(Superseded to V553000010)

$11.99

$

In Stock, only 2 left!

0

10

Echo 10020442030

Crankcase Kit
(Superseded to 10020451030)

Note: Includes Items 11-13, 15, 16

$157.99

$

Usually ships in 2-4 days

0

11

Echo 90081036201

Bearing, Ball 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

12

Echo 10021242030

Oilseal
(Superseded to 10021242031)

$7.99

$

In Stock, Qty 5

0

13

Echo 10021503930

Pin, Dowel
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 13

0

14

Echo 10010044731

Crankshaft
(Superseded to 10010044732)

Note: Includes Items 9

$186.99

$

Usually ships in 2-4 days

0

15

Gasket, Crankcase

$

$

Not available

16

Echo 90023805028

Screw 5X28

$0.99

$

Usually ships in 2-4 days

0

17

Echo 17500548930

Drum, Clutch
(Superseded to 17500548931)

$16.99

$

In Stock, Qty 5

0

18

Echo 90070200028

Circlip 28

$1.99

$

In Stock, Qty 20+

0

19

Echo 90080706001

Bearing, Ball 6001

$13.99

$

In Stock, only 2 left!

0

20

Echo 90070100012

Circlip 12

$0.99

$

In Stock, Qty 20+

0

21

Echo 90023804016

Screw 4X16
(Superseded to Discontinued)

$

$

Not available

22

Echo 61091027832

Cushion

$9.49

$

In Stock, only 2 left!

0

23

Echo 61090327432

Holder Kit
(Superseded to P021013520)

Note: Includes Items 24-26

$11.99

$

Usually ships in 2-4 days

0

24

Echo 90014205025

Bolt 5X25

$0.99

$

In Stock, Qty 9

0

25

Echo 61092227432

Holder

$6.99

$

In Stock, only 2 left!

0

26

Echo 61092327432

Holder

$7.49

$

Usually ships in 2-4 days

0

27

Echo 89011548930

Label, Model

$3.49

$

Usually ships in 2-4 days

0

28

Echo 10150352130

Cover Asy, Fan
(Superseded to 10150452130)

$

$

Not available

29

Echo 10151448930

Cover Cylinder

$14.99

$

In Stock, only 2 left!

0

30

Echo 15991248930

Guard, Top

$7.99

$

Usually ships in 2-4 days

0

31

Echo 90023805016

Screw 5X16

$0.99

$

In Stock, Qty 20+

0

Echo 88900042031

Gasket Kit
(Superseded to 88900042032)

$19.99

$

In Stock, only 2 left!

0
