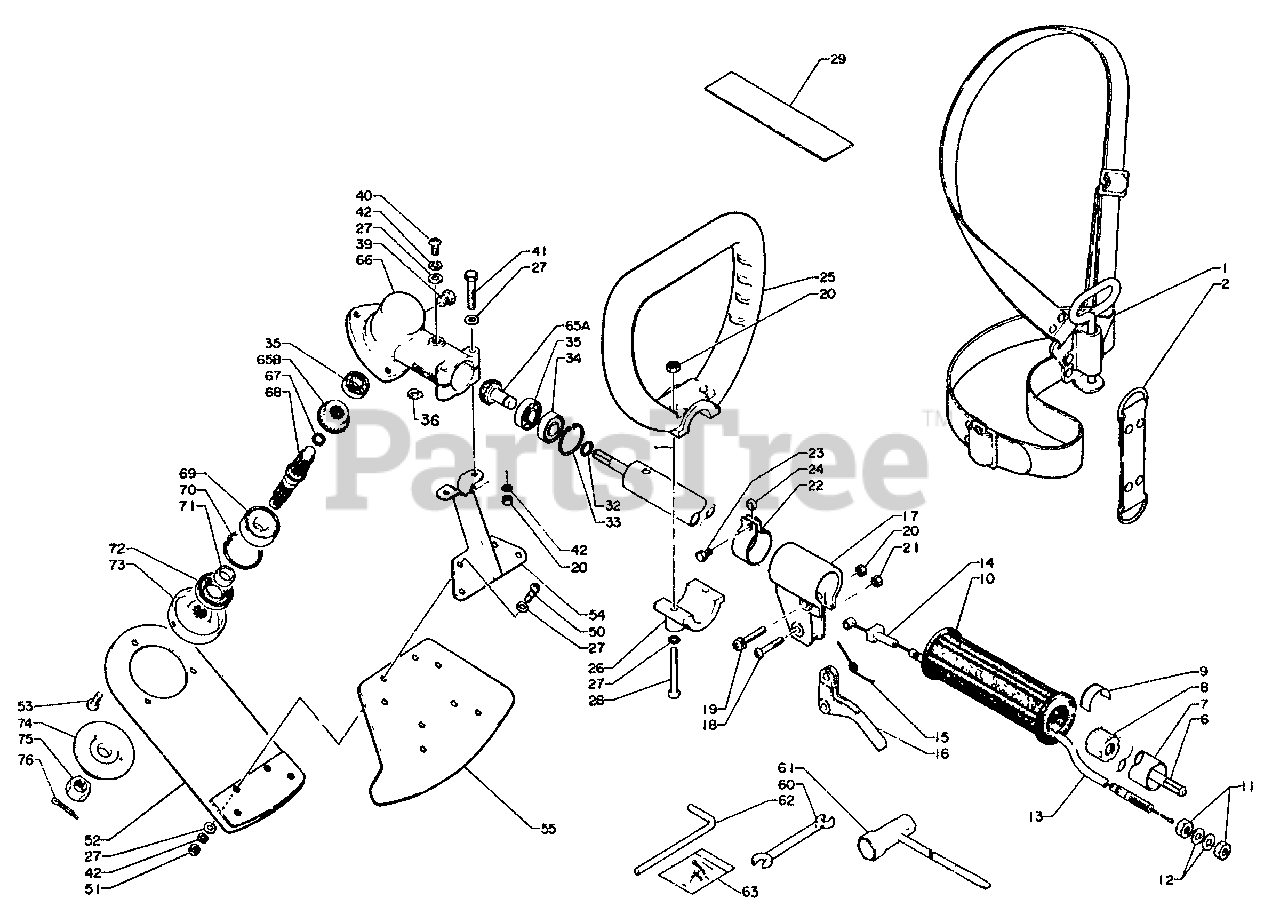

SRM-200 AE - Echo String Trimmer Driveshaft, Handles, Harness, Throttle, Gear Case, Shield, Tools Parts Diagram

String Trimmer

Driveshaft, Handles, Harness, Throttle, Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

Note: Includes item 2

$98.99

$

Usually ships in 2-4 days

0

2

Echo 30130507530

STRAP
(Superseded to Discontinued)

$

$

Not available

6

Echo 61001108930

DRIVESHAFT

$61.99

$

Usually ships in 2-4 days

0

7

Echo 61020608930

MAIN PIPE ASSY
(Superseded to 61020622830)

Note: Includes item 8

$

$

Not available

8

Echo 61010508930

STOPPER
(Superseded to Discontinued)

$

$

Not available

9

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

10

Echo 35101208930

GRIP
(Superseded to Discontinued)

$

$

Not available

11

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

12

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 17800108930

CABLE, THROTTLE
(Superseded to 17800108931)

$

$

Not available

14

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

15

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

16

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.99

$

In Stock, Qty 5

0

17

Echo 17802408930

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

18

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

19

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

22

Echo 301207-08930

HOOK

$5.99

$

Usually ships in 2-4 days

0

23

Echo 900100-05018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

24

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

25

Echo 351201-08930

LOOP HANDLE ASSY

Note: Includes items 20, 27 and 28

$45.99

$

Usually ships in 2-4 days

0

26

Echo 351201-08930

LOOP HANDLE ASSY

Note: Includes items 20, 27 and 28

$45.99

$

Usually ships in 2-4 days

0

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

28

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

29

Echo 89016020330

LABEL - CAUTION
(Superseded to 89016024230)

$4.49

$

Usually ships in 2-4 days

0

Echo 69900020230

SHIELD ASSY
(Superseded to Discontinued)

Note: Includes items 27, 42, 50 thru 52, 54 and 55

$

$

Not available

27

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

42

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

50

Echo 90022005014

SCREW 5×14

$0.99

$

In Stock, Qty 7

0

51

Echo 43302202830

LOCKNUT - 5
(Superseded to 90056200005)

$1.99

$

In Stock, only 2 left!

0

52

Echo 69900620230

BRACKET

$15.99

$

Usually ships in 2-4 days

0

54

Echo 69901520230

BRACKET, SHIELD

$12.99

$

Usually ships in 2-4 days

0

53

UNKNOWN

$

$

Not available

55

Echo 69901020230

SHIELD
(Superseded to Discontinued)

$

$

Not available

Echo 61040208932

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Includes items 20, 27, 32 thru 36, 39 thru 42 and 67 thru 76

$

$

Not available

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

32

Echo 61033708930

RING, RETAINING
(Superseded to 90070600009)

$1.49

$

In Stock, Qty 17

0

33

Echo 90070200025

RING, SNAP Ø25

$2.49

$

In Stock, only 4 left!

0

34

Echo 90080300609

BEARING, BALL 609

$19.99

$

Usually ships in 2-4 days

0

35

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

36

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

39

Echo 90010008008

BOLT 8×8 SP

$0.99

$

In Stock, Qty 10

0

40

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

41

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

42

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

65

Echo 61030108930

GEAR SET

$155.99

$

Usually ships in 2-4 days

0

65A

Echo 61030108930

GEAR SET

Note: See Ref No. 65, Gear set, P/N 61030108930

$155.99

$

Usually ships in 2-4 days

0

65B

Echo 61030108930

GEAR SET

Note: See Ref No. 65, Gear set, P/N 61030108930

$155.99

$

Usually ships in 2-4 days

0

66

Echo 61046008930

CASE, GEAR
(Superseded to 61046008931)

$

$

Not available

67

Echo 61033507130

RING, RETAINING - 12
(Superseded to 90070600012)

$1.49

$

In Stock, Qty 20+

0

68

Echo 61036008931

SHAFT, GEAR
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

69

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

70

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

71

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

72

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

73

Echo 61033808930

PLATE, ADAPTER - UPPER
(Superseded to C535000160)

$12.99

$

In Stock, Qty 16

0

74

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

75

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

76

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

60

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

61

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

62

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

63

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0
