SRM-200 CE - Echo String Trimmer Engine, Crankcase, Fan Housing Cover Parts Diagram

String Trimmer

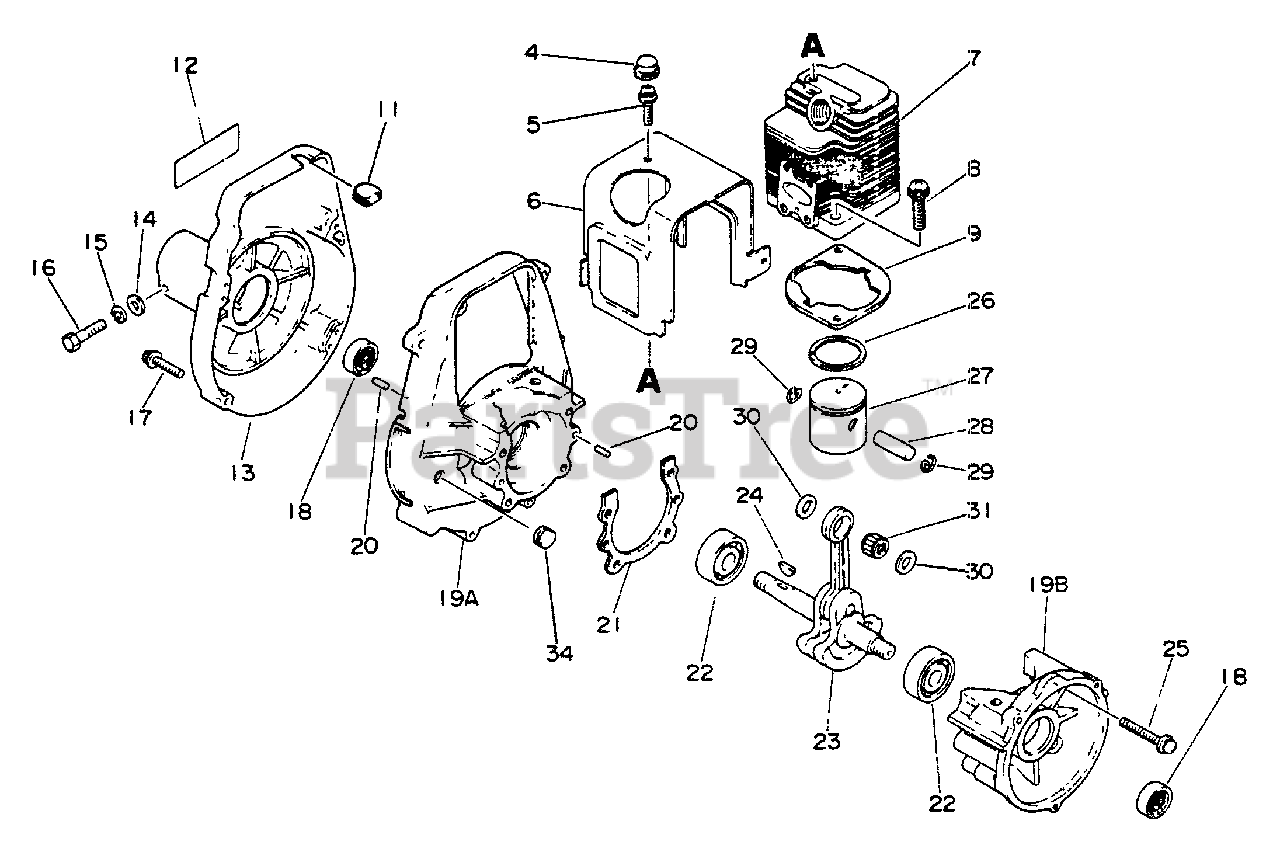

Engine, Crankcase, Fan Housing Cover Parts Diagram

  • Title

4

Echo 88051609220

SCREW

$4.49

$

Usually ships in 2-4 days

0

5

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

6

Echo 10151409320

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

7

Echo 10101109320

CYLINDER
(Superseded to Discontinued)

$

$

Not available

8

Echo 90024206020

SCREW - 6X20

$0.99

$

In Stock, Qty 6

0

9

Echo 10101004920

GASKET, CYLINDER
(Superseded to 10101004921)

$

$

Not available

11

Echo 10153807420

PLUG
(Superseded to Discontinued)

$

$

Not available

12

Echo 89011542330

LABEL - MODEL

$

$

Currently unavailable

13

Echo 10151142330

COVER, FAN - ORANGE
(Superseded to 10151106520)

$

$

Not available

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

16

Echo 90015105025

BOLT - 5X25

$0.99

$

Usually ships in 2-4 days

0

17

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

18

Echo 10021305530

SEAL, OIL

$6.99

$

In Stock, Qty 20+

0

19

Echo 10020007420

CRANKCASE KIT
(Superseded to Discontinued)

Note: Includes ITEM 20

$

$

Not available

19A

Echo 10020007420

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 19, Crankcase set , 10020007420

$

$

Not available

19B

Echo 10020007420

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 19, Crankcase set ,P\N 10020007420

$

$

Not available

20

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

21

Echo 10024204920

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

22

Echo 9403536201

BEARING, BALL - 6201

$8.99

$

In Stock, Qty 17

0

23

Echo 10010007420

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

24

Echo 10014200310

KEY

$1.49

$

Usually ships in 2-4 days

0

25

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

26

Echo 10001105330

RING, PISTON

$9.49

$

In Stock, Qty 20+

0

27

Echo 10001006520

PISTON
(Superseded to 10001006521)

$

$

Not available

28

Echo 10001310210

PIN, PISTON

$7.49

$

Usually ships in 2-4 days

0

29

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 20+

0

30

Echo 10001406520

SPACER, PISTON

$3.49

$

Usually ships in 2-4 days

0

31

Echo 10011305930

BEARING, NEEDLE - 8

$12.99

$

Usually ships in 2-4 days

0

34

Echo 10022307320

PLUG
(Superseded to Discontinued)

$

$

Not available
