SRM-200 D - Echo String Trimmer Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools Parts Diagram

String Trimmer

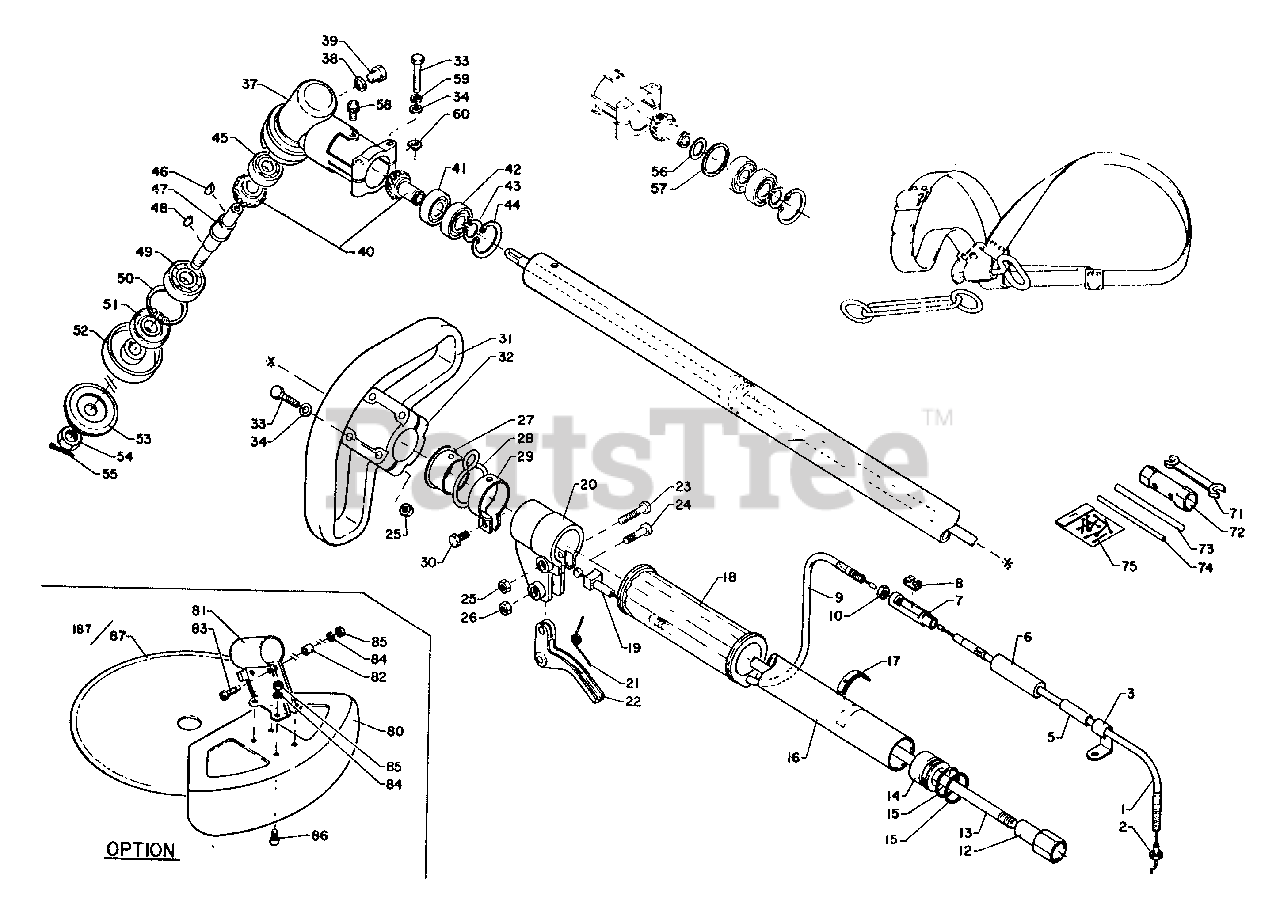

Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools Parts Diagram

  • Title

1

Echo 17800406830

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 10

0

3

Echo 17812105330

CLAMP
(Superseded to Discontinued)

$

$

Not available

5

Echo 17801605330

TUBE

$1.49

$

Usually ships in 2-4 days

0

6

Echo 17812805630

SLEEVE

$2.49

$

Usually ships in 2-4 days

0

7

Echo 17811405630

CONNECTOR, CABLE

$4.99

$

In Stock, only 2 left!

0

8

Echo 17804906630

CONNECTOR

$1.49

$

In Stock, only 2 left!

0

9

Echo 17800205630

CABLE, THROTTLE

$15.99

$

Usually ships in 2-4 days

0

10

Echo 17802105530

LOCKNUT - 6

$2.99

$

Usually ships in 2-4 days

0

12

Echo 61001204630

CONNECTOR

$35.99

$

Usually ships in 2-4 days

0

13

Echo 61001104630

DRIVESHAFT

$48.99

$

Usually ships in 2-4 days

0

16

Echo 61020604630

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

14

Echo 61010504130

STOPPER
(Superseded to Discontinued)

$

$

Not available

15

Echo 90072000022

O-RING - 22

$1.99

$

In Stock, Qty 15

0

17

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 9

0

18

Echo 35101205630

GRIP
(Superseded to Discontinued)

$

$

Not available

19

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 20+

0

20

Echo 17802406830

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

21

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

22

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.49

$

In Stock, Qty 20+

0

23

Echo 90024005028

SCREW - 5X28

$0.99

$

In Stock, Qty 10

0

24

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 17

0

25

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

26

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

27

Echo 30121005630

COLLAR
(Superseded to Discontinued)

$

$

Not available

28

Echo 30121105630

HOOK, SWIVEL
(Superseded to Discontinued)

$

$

Not available

29

Echo 30120705630

HOOK
(Superseded to Discontinued)

$

$

Not available

30

Echo 90010005010

BOLT - 5X10

$0.99

$

Usually ships in 2-4 days

0

Echo 35120106930

LOOP HANDLE ASSY
(Superseded to Discontinued)

$

$

Not available

25

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

31

Echo 35121406930

HANDLE
(Superseded to 35120106930)

$

$

Not available

32

Echo 35122506930

BRACKET, HANDLE

$6.49

$

In Stock, only 2 left!

0

33

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

34

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

Echo 61040005332

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

33

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

34

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

37

Echo 61041005332

CASE, GEAR

$59.99

$

In Stock, only 1 left!

0

38

Echo 61051105330

GASKET
(Superseded to Discontinued)

$

$

Not available

39

Echo 90010008006

BOLT - 8X6
(Superseded to Discontinued)

$

$

Not available

40

Echo 61030005331

GEAR SET
(Superseded to Discontinued)

$

$

Not available

41

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 8

0

42

Echo 90080106001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

In Stock, only 2 left!

0

43

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

44

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 19

0

45

Echo 90080036000

BEARING, BALL - 6000

$11.99

$

Usually ships in 2-4 days

0

46

Echo 10013101620

KEY

$2.99

$

Usually ships in 2-4 days

0

47

Echo 61031005330

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

48

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

49

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 12

0

50

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 20+

0

51

Echo 61041305330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

52

Echo 61031304130

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

53

Echo C535000150

ADAPTOR, BLADE - LOWER

$9.49

$

In Stock, Qty 20+

0

54

Echo 90051100010

NUT - 10 -- LEFT HAND

$1.49

$

In Stock, Qty 20+

0

55

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

56

Echo 61031604130

WASHER

$0.99

$

Usually ships in 2-4 days

0

57

Echo 61031705330

WASHER

$0.99

$

Usually ships in 2-4 days

0

58

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

59

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

60

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 7

0

71

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, Qty 9

0

72

Echo 89541905330

SOCKET WRENCH - 17X19mm
(Superseded to Discontinued)

$

$

Not available

73

Echo 89541200230

ROD, HANDLE

$1.99

$

Usually ships in 2-4 days

0

74

Echo 89751801131

LOCKING TOOL

$1.49

$

Usually ships in 2-4 days

0

75

Echo 89850201130

PIN, SPLIT - 2X22

$1.99

$

In Stock, only 4 left!

0

Echo 69900005331

SAFETY GUARD ASSY
(Superseded to 69900040430)

Note: Includes ITEMS 80-86

$

$

Not available

80

Echo 69901005330

SHIELD, DEBRIS

Note: OPTIONAL

$19.99

$

Usually ships in 2-4 days

0

81

Echo 69901105331

BRACKET, SHIELD
(Superseded to 69900240430)

Note: OPTIONAL

$

$

Not available

82

Echo 69901203330

SPACER

Note: OPTIONAL

$1.49

$

In Stock, Qty 16

0

83

Echo 90022005018

SCREW - 5X18

Note: OPTIONAL

$0.99

$

In Stock, Qty 5

0

84

Echo 90060500005

LOCKWASHER - 5

Note: OPTIONAL

$0.99

$

In Stock, only 4 left!

0

85

Echo 90050000005

NUT - 5

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0

86

Echo 90022005008

SCREW - 5X8

Note: OPTIONAL

$0.99

$

In Stock, Qty 12

0

87

Echo 69600101130

BLADE - 8 TOOTH -- 10" (25cm)
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

187

Echo 69500101230

SAW, CIRCULAR
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

Echo 30100024330

SHOULDER STRAP ASSY
(Superseded to 30100050330)

$82.99

$

Usually ships in 2-4 days

0

Echo 30130524330

HOOK

$10.99

$

In Stock, only 1 left!

0
