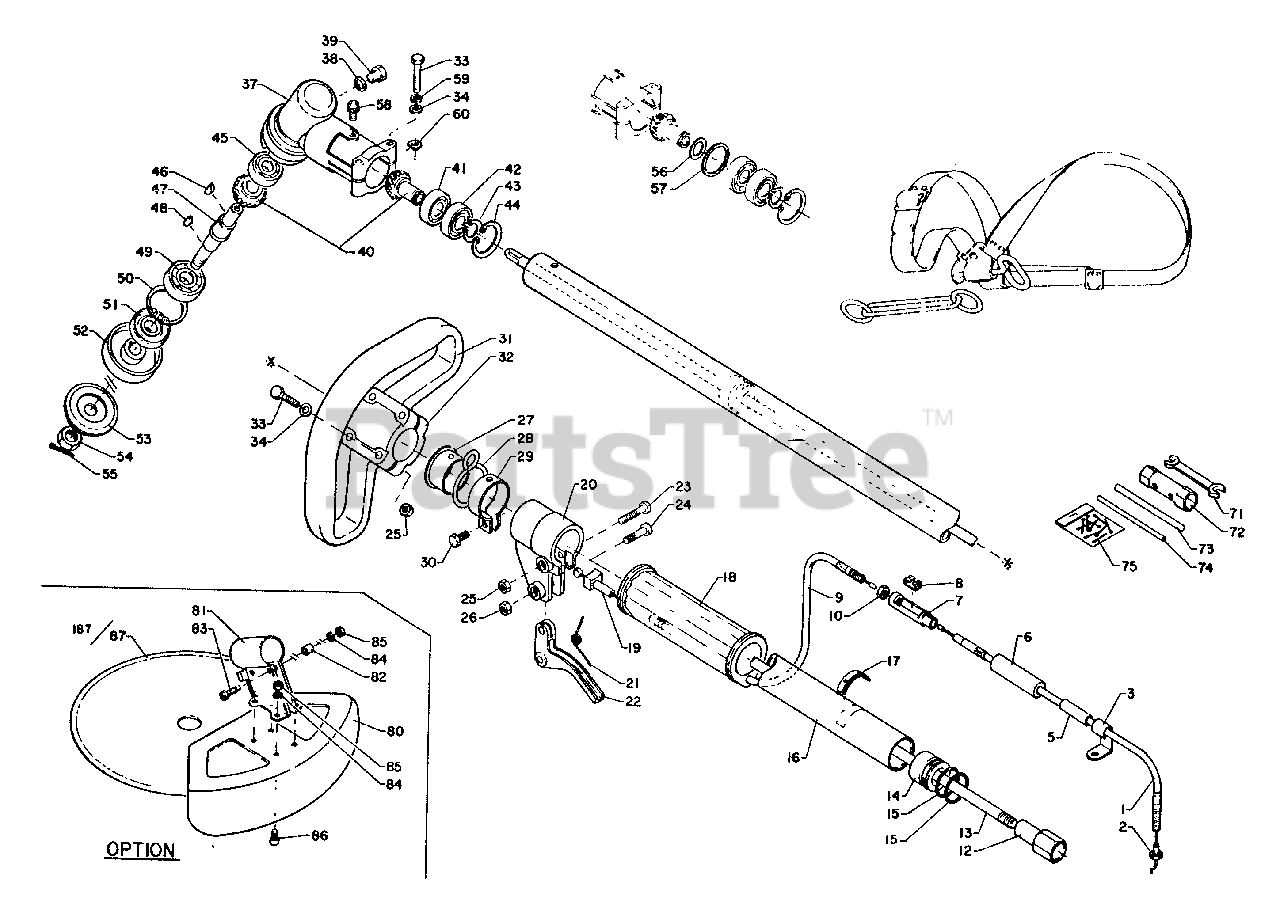

SRM-200 D - Echo String Trimmer Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools Parts Diagram

String Trimmer

Driveshaft, Gear Case, Handles, Harness, Shield, Throttle, Tools Parts Diagram

  • Title

1

Echo 17800406830

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

3

Echo 17812105330

CLAMP
(Superseded to Discontinued)

$

$

Not available

5

Echo 17801605330

TUBE, VINYL

$1.49

$

Usually ships in 2-4 days

0

6

Echo 17812805630

SLEEVE, JOINT RETAINER

$

$

Not available

7

Echo 17811405630

CONNECTOR

$4.99

$

In Stock, only 2 left!

0

8

Echo 17804906630

JOINT

$1.99

$

Usually ships in 2-4 days

0

9

Echo 17800205630

CABLE, THROTTLE

$15.99

$

Usually ships in 2-4 days

0

10

Echo 178021-05530

NUT

$3.49

$

Usually ships in 2-4 days

0

12

Echo 61001204630

COUPLER

$42.99

$

Usually ships in 2-4 days

0

13

Echo 61001104630

DRIVESHAFT

$57.99

$

Usually ships in 2-4 days

0

16

Echo 61020604630

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

14

Echo 61010504130

STOPPER
(Superseded to Discontinued)

$

$

Not available

15

Echo 90072000022

O-RING 22

$2.49

$

Usually ships in 2-4 days

0

17

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

18

Echo 35101205630

GRIP
(Superseded to Discontinued)

$

$

Not available

19

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

20

Echo 17802406830

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

21

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

22

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.99

$

In Stock, Qty 5

0

23

Echo 90024005028

SCREW 5×28

$0.99

$

In Stock, Qty 9

0

24

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

25

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

26

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

27

Echo 30121005630

COLLAR
(Superseded to Discontinued)

$

$

Not available

28

Echo 30121105630

HOOK, SWIVEL
(Superseded to Discontinued)

$

$

Not available

29

Echo 30120705630

CLAMP
(Superseded to Discontinued)

$

$

Not available

30

Echo 90010005010

BOLT - 5×10

$0.99

$

Usually ships in 2-4 days

0

Echo 35120106930

LOOP HANDLE ASSY
(Superseded to Discontinued)

Note: Includes items 25 and 31 thru 34

$

$

Not available

25

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

31

Echo 35121406930

HANDLE
(Superseded to 35120106930)

$

$

Not available

32

Echo 35122506930

BRACKET, HANDLE

$7.49

$

In Stock, only 2 left!

0

33

Echo 90010005030

BOLT 5×30

$0.99

$

Usually ships in 2-4 days

0

34

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

Echo 61040005332

GEAR CASE ASSY
(Superseded to Discontinued)

Note: Includes items 33, 34 and 37 thru 60

$

$

Not available

33

Echo 90010005030

BOLT 5×30

$0.99

$

Usually ships in 2-4 days

0

34

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

37

Echo 61041005332

HOUSING, GEAR CASE

$71.99

$

In Stock, only 1 left!

0

38

Echo 61051105330

GASKET
(Superseded to Discontinued)

$

$

Not available

39

Echo 90010008006

BOLT - 8×6
(Superseded to Discontinued)

$

$

Not available

40

Echo 61030005331

GEAR SET
(Superseded to Discontinued)

$

$

Not available

41

Echo 90080006001

BEARING, BALL 6001
(Superseded to 90080036001)

$11.99

$

In Stock, Qty 9

0

42

Echo 90080106001

BEARING, BALL 6001
(Superseded to 90080206001)

$11.99

$

In Stock, only 2 left!

0

43

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

44

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

45

Echo 90080036000

BEARING, BALL 6000

$14.99

$

Usually ships in 2-4 days

0

46

Echo 10013101620

KEY

$3.49

$

Usually ships in 2-4 days

0

47

Echo 61031005330

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

48

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

49

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

50

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

51

Echo 61041305330

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

52

Echo 61031304130

PLATE, ADAPTER - UPPER
(Superseded to Discontinued)

$

$

Not available

53

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

54

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

55

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

56

Echo 61031604130

WASHER

$0.99

$

Usually ships in 2-4 days

0

57

Echo 61031705330

WASHER

$0.99

$

Usually ships in 2-4 days

0

58

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

59

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

60

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

71

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

72

Echo 89541905330

WRENCH 17×19
(Superseded to Discontinued)

$

$

Not available

73

Echo 89541200230

ROD, HANDLE

$2.49

$

Usually ships in 2-4 days

0

74

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

75

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

Echo 69900005331

SAFETY GUARD ASSY
(Superseded to 69900040430)

Note: Includes ITEMS 80-86 OPTIONAL

$

$

Not available

80

Echo 69901005330

GUARD

Note: OPTIONAL

$23.99

$

Usually ships in 2-4 days

0

81

Echo 69901105331

BRACKET
(Superseded to 69900240430)

Note: OPTIONAL

$

$

Not available

82

Echo 699012-03330

SPACER, GUARD

Note: OPTIONAL

$1.99

$

In Stock, Qty 13

0

83

Echo 90022005018

SCREW 5×18

Note: OPTIONAL

$0.99

$

Usually ships in 2-4 days

0

84

Echo 900605-00005

WASHER, SPRING 5

Note: OPTIONAL

$0.99

$

In Stock, Qty 9

0

85

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

Note: OPTIONAL

$0.99

$

In Stock, Qty 20+

0

86

Echo 90022005008

SCREW 5×8

Note: OPTIONAL

$0.99

$

In Stock, only 3 left!

0

87

Echo 69600101130

BLADE - 8 TOOTH -- 10"
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

187

Echo 69500101230

SAW, CIRCULAR
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

Echo 30100024330

SHOULDER STRAP ASSY
(Superseded to 30100050330)

$98.99

$

Usually ships in 2-4 days

0

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0
