SRM-200 D - Echo String Trimmer Starter Parts Diagram

String Trimmer

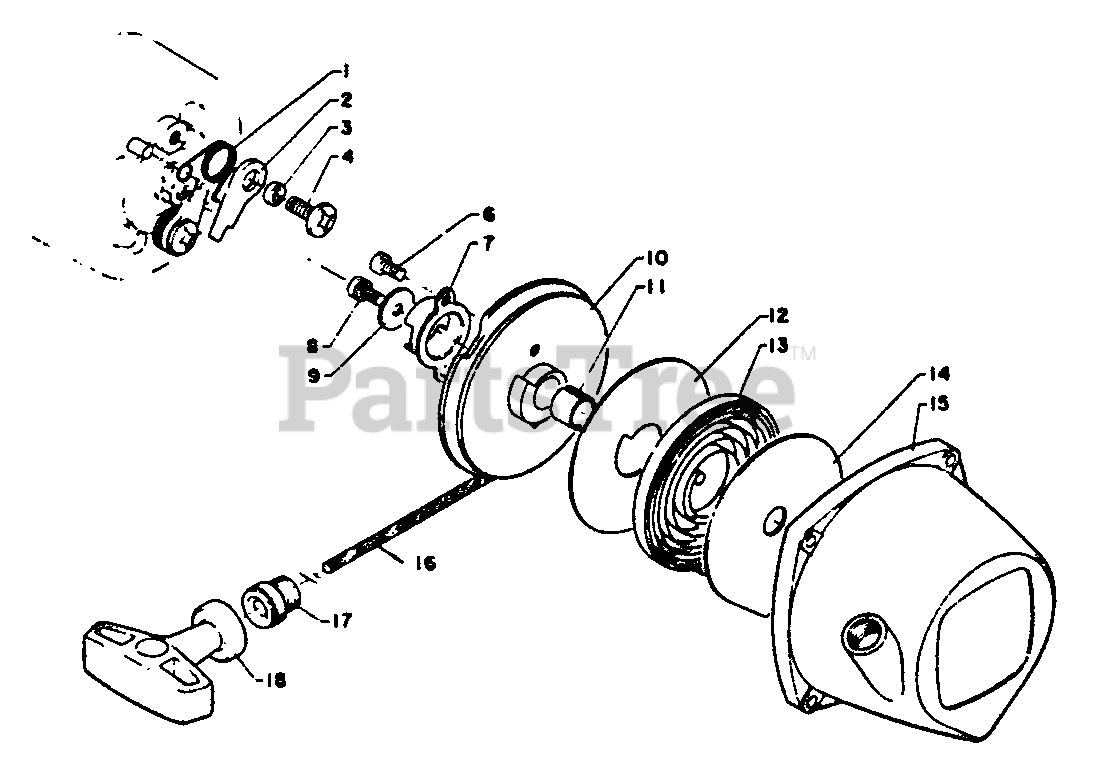

Starter Parts Diagram

  • Title

Echo 17720004630

STARTER ASSY
(Superseded to Discontinued)

Note: Includes ITEMS 6-18

$

$

Not available

6

Echo 90022004008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

7

Echo 17724304630

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

8

Echo 90024104008

SCREW - 4X8

$0.99

$

In Stock, Qty 10

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 10

0

10

Echo 17721504630

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17721604630

BUSHING

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17724204630

PLATE, STARTER

$2.99

$

Usually ships in 2-4 days

0

13

Echo 17722003930

SPRING, REWIND

$21.99

$

In Stock, only 1 left!

0

14

Echo 17722104630

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 17720904630

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

16

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

17

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

18

Echo 17722811130

GRIP, STARTER

$6.99

$

Usually ships in 2-4 days

0

1

Echo 17723404632

SPRING, RETURN

$1.49

$

In Stock, Qty 8

0

2

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 17724704630

SPACER

$2.49

$

In Stock, only 2 left!

0

4

Echo 17721704630

SCREW
(Superseded to 90021605014)

$0.99

$

In Stock, Qty 20+

0
