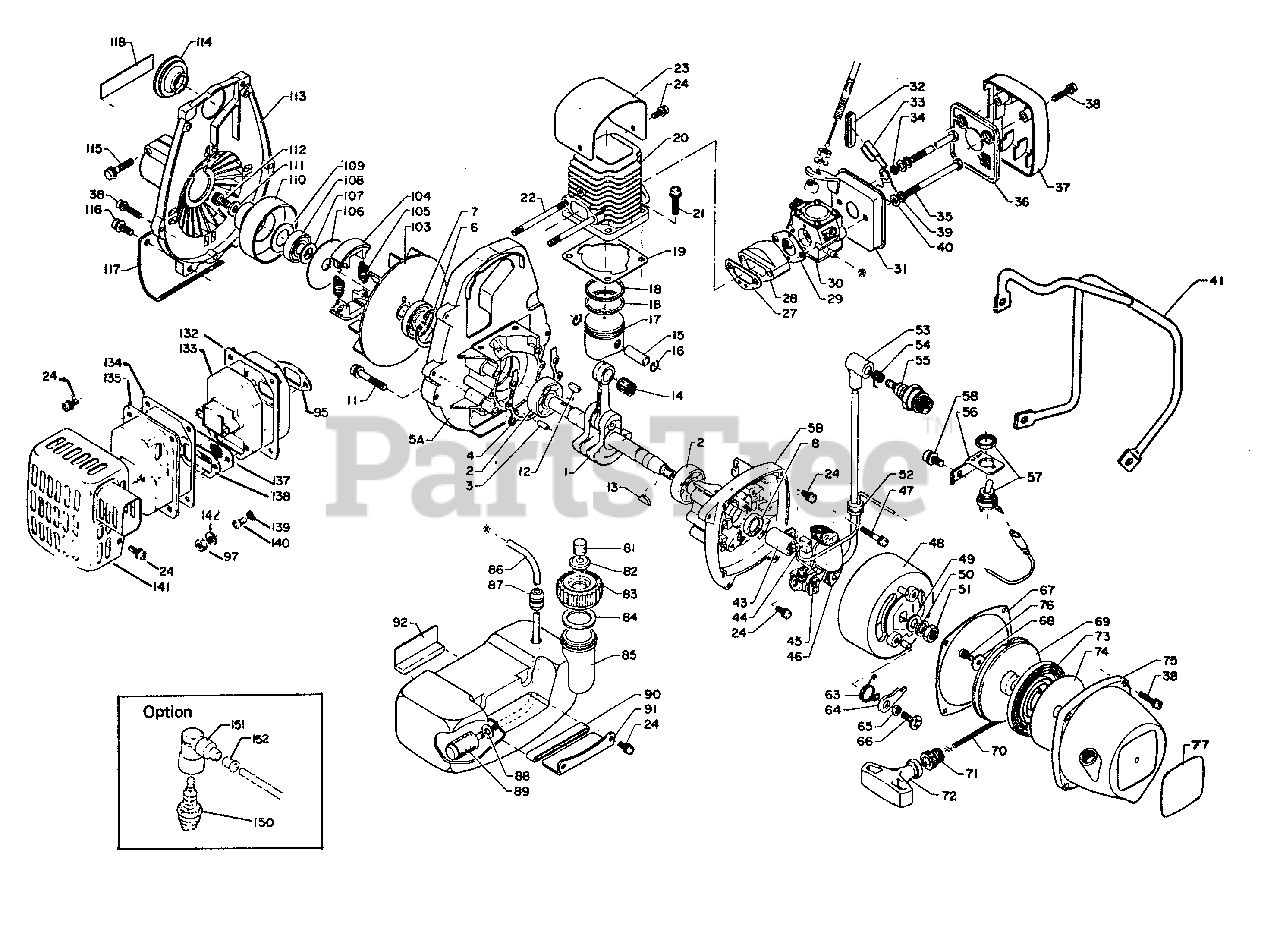

SRM-200 DA - Echo String Trimmer (SN: 001001 - 999999) Part List 1 Parts Diagram

String Trimmer

Part List 1 Parts Diagram

  • Title

1

Echo 10010005331

CRANKSHAFT
(Superseded to Discontinued)

$

$

Not available

2

Echo 90081036201

BEARING, BALL 6201
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

4

Echo 10024204630

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10020005020

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

3

Echo 100215-03930

PIN, LOCATING 4×8
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 12

0

6

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 1 left!

0

7

Echo 10021203930

SEAL, OIL 12

$6.49

$

In Stock, Qty 9

0

8

Echo 10021204630

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, only 4 left!

0

11

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

12

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

13

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

14

Echo 17501203930

BEARING, NEEDLE 8

$13.99

$

Usually ships in 2-4 days

0

15

Echo 10001310210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

16

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

17

Echo 10001005330

PISTON
(Superseded to 10000005330)

$

$

Not available

18

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

19

Echo 10101004630

GASKET, CYLINDER
(Superseded to 10101004631)

$2.49

$

Usually ships in 2-4 days

0

20

Echo 10101105020

CYLINDER
(Superseded to Discontinued)

$

$

Not available

21

Echo 900242-05020

SCREW 5×20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 7

0

22

Echo 10101405330

STUD
(Superseded to 10101422330)

$1.99

$

Usually ships in 2-4 days

0

23

Echo 10151405020

COVER, CYLINDER
(Superseded to Discontinued)

$

$

Not available

24

Echo 900242-04010

SCREW 4×10

Note: Muffler Assembly 145800-05120

$0.99

$

In Stock, Qty 20+

0

27

Echo 13001005020

GASKET, INTAKE
(Superseded to 13001005021)

$

$

Not available

28

Echo 13001705020

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

29

Echo 13001606430

GASKET, INTAKE
(Superseded to 13001606431)

$0.99

$

In Stock, Qty 20+

0

30

Echo 12300008430

CARBURETOR - WA-59

$134.99

$

In Stock, Qty 5

0

31

Echo 13030105021

CASE, AIR FILTER

$9.49

$

Usually ships in 2-4 days

0

32

Echo 17881005020

GROMMET

$2.49

$

Usually ships in 2-4 days

0

33

Echo 17851506530

SHUTTER, CHOKE
(Superseded to Discontinued)

$

$

Not available

34

Echo 17851603930

WASHER 5.5×8×0.8
(Superseded to 17851600830)

$0.99

$

In Stock, Qty 20+

0

35

Echo 13002105020

BOLT

$1.99

$

Usually ships in 2-4 days

0

36

Echo 13031006530

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

37

Echo 13031305020

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

38

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

39

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

40

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

41

Echo 12903107530

GUARD

$14.99

$

Usually ships in 2-4 days

0

43

Echo 15612704521

CONDENSER
(Superseded to Discontinued)

$

$

Not available

44

Echo 15613404630

PAD, OIL

$2.49

$

Usually ships in 2-4 days

0

45

Echo 15610104630

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

46

Echo 15612604630

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

47

Echo 90024204025

SCREW 4×25

$0.99

$

In Stock, only 2 left!

0

48

Echo 15620004631

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

49

Echo 10014304630

WASHER

$0.99

$

Usually ships in 2-4 days

0

50

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0

51

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

52

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

53

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

54

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

55

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

56

Echo 16381007531

BRACKET, SWITCH

$2.99

$

Usually ships in 2-4 days

0

57

Echo 16340007531

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

58

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

63

Echo 17723404632

SPRING, RETURN

$1.49

$

In Stock, Qty 8

0

64

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

65

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

66

Echo 17721704630

SCREW
(Superseded to 90021605014)

$0.99

$

In Stock, Qty 20+

0

67

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0

Echo 17720007530

STARTER ASSY
(Superseded to 17720007531)

$

$

Not available

68

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

69

Echo 17720605020

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

70

Echo 177226-03930

ROPE, STARTER 3.5×850
(Superseded to 17722603930)

$6.99

$

In Stock, only 2 left!

0

71

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

72

Echo 177228-11130

HANDLE

$6.99

$

Usually ships in 2-4 days

0

73

Echo 177220-03930

SPRING, RECOIL

$21.99

$

In Stock, only 2 left!

0

74

Echo 17722105020

PLATE, SIDE

$2.99

$

Usually ships in 2-4 days

0

75

Echo 17720907530

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

76

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

77

Echo 89001200662

LABEL - ECHO

$1.49

$

Usually ships in 2-4 days

0

83

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

81

Echo 13131505020

FILTER, CHECK VALVE

$0.99

$

In Stock, Qty 8

0

82

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

84

Echo 13101604920

PACKING

$2.99

$

Usually ships in 2-4 days

0

85

Echo 13101007531

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

86

Echo 13201007530

PIPE, FUEL
(Superseded to 13201007531)

$11.99

$

In Stock, only 2 left!

0

87

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

88

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

89

Echo 13120505230

FILTER, FUEL
(Superseded to 13120002830)

$9.99

$

In Stock, Qty 20+

0

90

Echo 13192407530

CUSHION
(Superseded to Discontinued)

$

$

Not available

91

Echo 13191005020

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

92

Echo 13192007530

CUSHION, FUEL TANK

$2.49

$

Usually ships in 2-4 days

0

95

Echo 14551005020

GASKET, EXHAUST
(Superseded to 14551005021)

Note: Muffler Assembly 145800-05120

$

$

Not available

97

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

103

Echo 10150005020

FAN
(Superseded to Discontinued)

$

$

Not available

104

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$25.99

$

In Stock, only 2 left!

0

105

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

106

Echo 17501904630

PLATE, CLUTCH

$3.49

$

Usually ships in 2-4 days

0

107

Echo 17501505020

WASHER, CLUTCH

$2.49

$

Usually ships in 2-4 days

0

108

Echo 90080806000

BEARING, BALL 6000
(Superseded to Discontinued)

$

$

Not available

109

Echo 17504404630

SPACER

$1.99

$

Usually ships in 2-4 days

0

110

Echo 17501004632

DRUM, CLUTCH
(Superseded to 17501004633)

$36.99

$

Usually ships in 2-4 days

0

111

Echo 17501404630

WASHER 6

$2.49

$

In Stock, Qty 20+

0

112

Echo 90010506010

BOLT M6×10

$1.49

$

In Stock, only 3 left!

0

113

Echo 10151107530

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

114

Echo 15901504630

COVER, SPARK PLUG

$1.99

$

Usually ships in 2-4 days

0

115

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

116

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

117

Echo 30511007530

BRACKET
(Superseded to Discontinued)

$

$

Not available

118

Echo 89011207530

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

132

Echo 14580605120

MUFFLER
(Superseded to Discontinued)

Note: Muffler Assembly 145800-05120

$

$

Not available

133

Echo 14580705120

SILENCER (S A)

Note: Muffler Assembly 145800-05120

$7.49

$

Usually ships in 2-4 days

0

134

Echo 14586605120

GASKET, EXHAUST
(Superseded to 14586605121)

Note: Muffler Assembly 145800-05120

$

$

Not available

135

Echo 14586105120

COVER, MUFFLER
(Superseded to Discontinued)

Note: Muffler Assembly 145800-05120

$

$

Not available

137

Echo 14586205120

SCREEN, SPARK ARRESTER

Note: Muffler Assembly 145800-05120

$2.99

$

Usually ships in 2-4 days

0

138

Echo 14586305120

RETAINER, SCREEN

Note: Muffler Assembly 145800-05120

$2.99

$

Usually ships in 2-4 days

0

139

Echo 90061000004

WASHER, LOCK 4 MM

Note: Muffler Assembly 145800-05120

$0.99

$

In Stock, only 1 left!

0

140

Echo 90022004008

SCREW 4×8

Note: Muffler Assembly 145800-05120

$0.99

$

In Stock, Qty 6

0

141

Echo 14587108030

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

142

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

150

Echo 15901010130

SPARK PLUG - BMR6A

$3.99

$

Usually ships in 2-6 days

0

151

Echo 15901210230

CAP, SPARK PLUG

$13.99

$

Usually ships in 2-4 days

0

152

Echo 15901605330

ADAPTOR, SPARK PLUG - CAP

$1.99

$

Usually ships in 2-4 days

0
