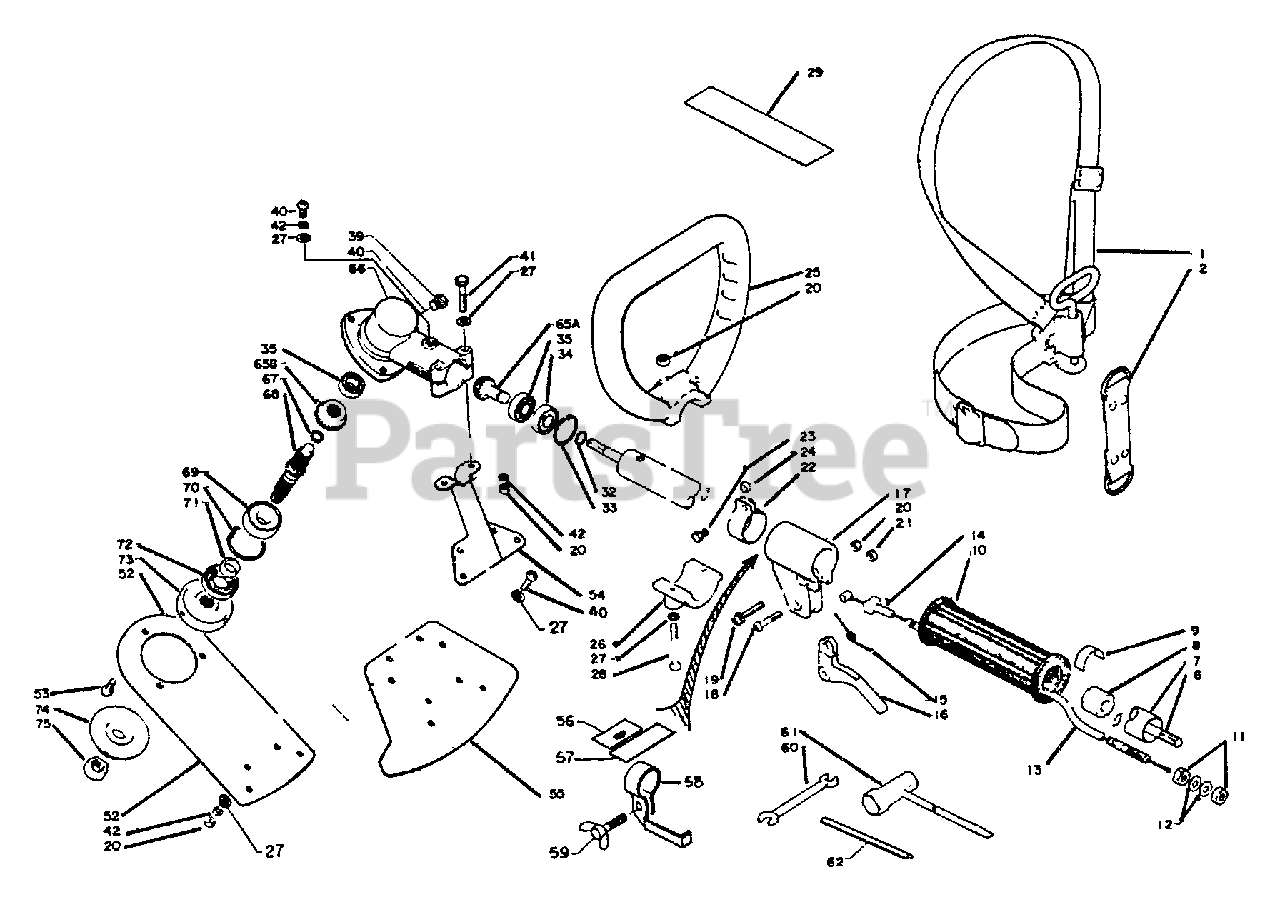

SRM-200 - Echo String Trimmer (Original Version) Driveshaft, Handles, Harness, Throttle, Gear Case, Shield, Tools Parts Diagram

String Trimmer

Driveshaft, Handles, Harness, Throttle, Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 30100007530

SHOULDER STRAP ASSY
(Superseded to 30100024330)

Note: Includes ITEM 2

$98.99

$

Usually ships in 2-4 days

0

2

Echo 30130507530

STRAP
(Superseded to Discontinued)

$

$

Not available

6

Echo 61001108930

DRIVESHAFT

$61.99

$

Usually ships in 2-4 days

0

7

Echo 61020608930

MAIN PIPE ASSY
(Superseded to 61020622830)

Note: Includes ITEM 8

$

$

Not available

8

Echo 61010508930

STOPPER
(Superseded to Discontinued)

$

$

Not available

9

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

10

Echo 35101208930

GRIP
(Superseded to Discontinued)

$

$

Not available

11

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

12

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo 17800108930

CABLE, THROTTLE
(Superseded to 17800108931)

$

$

Not available

14

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 5

0

15

Echo 17804306930

SPRING, THROTTLE

$1.49

$

In Stock, only 4 left!

0

16

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.99

$

In Stock, Qty 5

0

17

Echo 17802408930

BRACKET, TRIGGER
(Superseded to Discontinued)

$

$

Not available

18

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

19

Echo 90022005028

SCREW 5×28

$0.99

$

In Stock, only 1 left!

0

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

21

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

22

Echo 301207-08930

HOOK

$5.99

$

Usually ships in 2-4 days

0

23

Echo 90010005010

BOLT - 5×10

$0.99

$

Usually ships in 2-4 days

0

24

Echo 699012-03330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

25

Echo 351201-08930

LOOP HANDLE ASSY

$45.99

$

Usually ships in 2-4 days

0

26

Echo 351201-08930

LOOP HANDLE ASSY

$45.99

$

Usually ships in 2-4 days

0

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

28

Echo 900220-05040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

29

Echo 89016007530

LABEL
(Superseded to Discontinued)

$

$

Not available

42

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

Echo 69910008931

SAFETY GUARD ASSY
(Superseded to 69900020230)

Note: Consist of 20, 40 and 52 thru 55

$

$

Not available

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

40

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

56

Echo 89017309230

LABEL
(Superseded to Discontinued)

$

$

Not available

57

Echo 89014408930

LABEL
(Superseded to Discontinued)

$

$

Not available

58

Echo 17802708930

BRACKET
(Superseded to Discontinued)

$

$

Not available

59

Echo 90011705014

BOLT - 5×14
(Superseded to Discontinued)

$

$

Not available

42

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

52

Echo 69901108930

BRACKET
(Superseded to 69900620230)

$15.99

$

Usually ships in 2-4 days

0

53

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

54

Echo 69901520230

BRACKET, SHIELD

$12.99

$

Usually ships in 2-4 days

0

55

Echo 69901008931

SAFETY GUARD
(Superseded to 69901020230)

$

$

Not available

60

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

61

Echo 89541010630

WRENCH, T 17×19 MM

$12.99

$

Usually ships in 2-4 days

0

62

Echo 897518-01131

TOOL, LOCKING 5×120 MM

$

$

Not available

Echo 89541010630

WRENCH, T 17×19 MM

$12.99

$

Usually ships in 2-4 days

0

27

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

32

Echo 61033708930

RING, RETAINING
(Superseded to 90070600009)

$1.49

$

In Stock, Qty 17

0

33

Echo 90070200025

RING, SNAP Ø25

$2.49

$

In Stock, only 4 left!

0

34

Echo 90080300609

BEARING, BALL 609

$19.99

$

Usually ships in 2-4 days

0

35

Echo 90080000609

BEARING, BALL 609

$11.99

$

In Stock, Qty 5

0

39

Echo 90010008006

BOLT - 8×6
(Superseded to Discontinued)

$

$

Not available

40

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

41

Echo 90010005035

BOLT 5×35 SP

$0.99

$

In Stock, Qty 5

0

42

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

65

Echo 61030108930

GEAR SET

$155.99

$

Usually ships in 2-4 days

0

65A

Echo 61030108930

GEAR SET

Note: See Ref No. 65, Gear set, P/N 61030108930

$155.99

$

Usually ships in 2-4 days

0

65B

Echo 61030108930

GEAR SET

Note: See Ref No. 65, Gear set, P\N 61030108930

$155.99

$

Usually ships in 2-4 days

0

66

Echo 61046008930

CASE, GEAR
(Superseded to 61046008931)

$

$

Not available

67

Echo 61033507130

RING, RETAINING - 12
(Superseded to 90070600012)

$1.49

$

In Stock, Qty 20+

0

68

Echo 61036008930

GEAR, SHAFT
(Superseded to 61036008931)

$80.99

$

In Stock, Qty 5

0

69

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

70

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

71

Echo 61031507130

SPACER 11.8×15×9

$4.49

$

In Stock, only 1 left!

0

72

Echo 61041307130

SEAL, OIL 22

$6.99

$

In Stock, only 1 left!

0

73

Echo 61033808930

PLATE, ADAPTER - UPPER
(Superseded to C535000160)

$12.99

$

In Stock, Qty 16

0

74

Echo C535000150

PLATE, ADAPTOR - LOWER

$10.99

$

In Stock, Qty 8

0

75

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0
