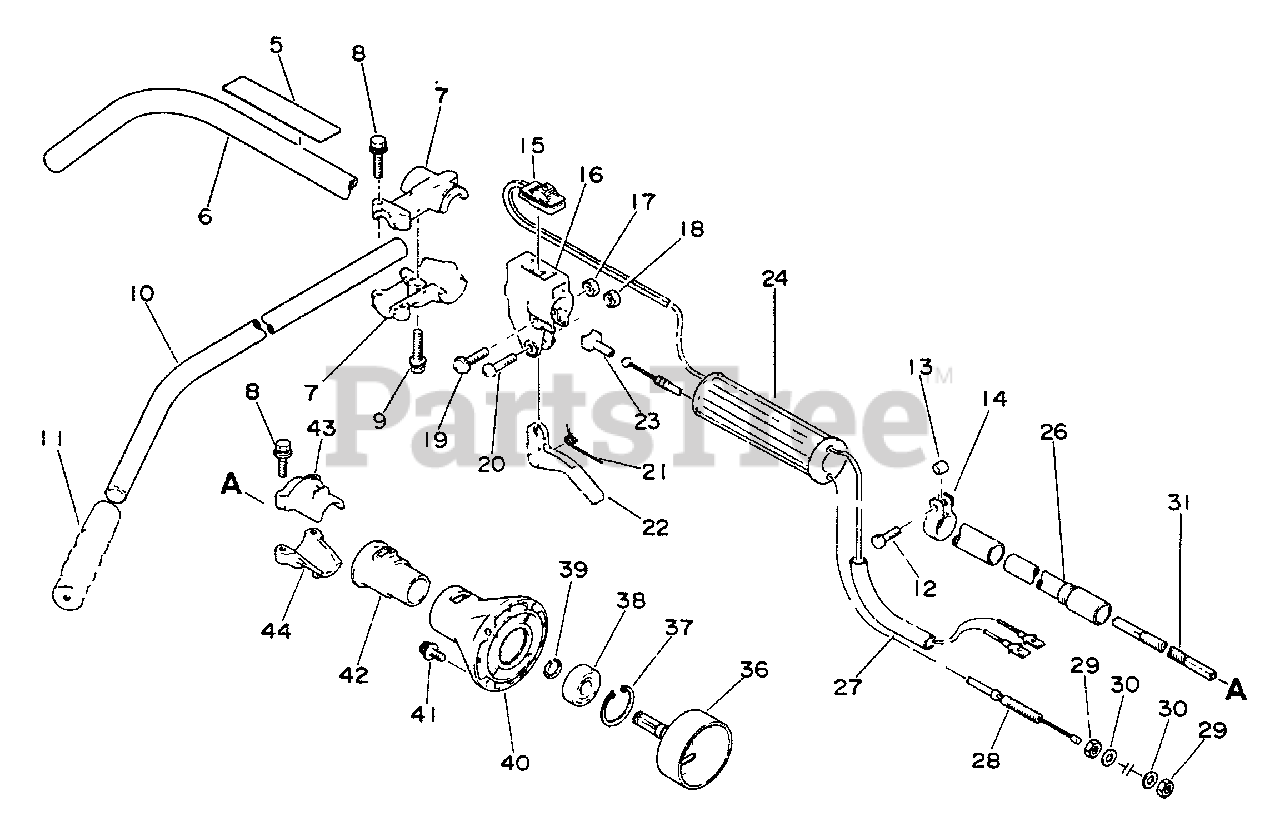

SRM-2000 - Echo String Trimmer Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing Parts Diagram

String Trimmer

Driveshaft, Throttle, Stop Switch, Handles, Clutch Housing Parts Diagram

  • Title

5

Echo 89016025131

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

6

Echo 61021022331

PIPE, MAIN
(Superseded to 61021023331)

$52.99

$

Usually ships in 2-4 days

0

7

Echo 35160140730

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

8

Echo 90014205025

BOLT - 5X25

$0.99

$

In Stock, Qty 10

0

9

Echo 90014205028

BOLT - 5X28

$0.99

$

In Stock, Qty 20+

0

10

Echo 35161009930

HANDLE
(Superseded to Discontinued)

$

$

Not available

11

Echo 35121305930

GRIP, HANDLE

$6.49

$

Usually ships in 2-4 days

0

12

Echo 90010005018

BOLT - 5X18

$0.99

$

In Stock, Qty 11

0

13

Echo 69901203330

SPACER

$1.49

$

In Stock, Qty 16

0

14

Echo 30121223330

CLAMP
(Superseded to 30120723330)

$4.99

$

Usually ships in 2-4 days

0

15

Echo 16340040630

IGNITION SWITCH ASSY
(Superseded to 16340049130)

$

$

Not available

16

Echo 17802409630

BRACKET, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

19

Echo 90024005028

SCREW - 5X28

$0.99

$

In Stock, Qty 10

0

20

Echo 17811005330

SCREW - 5X30

$0.99

$

In Stock, Qty 18

0

21

Echo 17804306930

SPRING, TRIGGER

$0.99

$

In Stock, Qty 20+

0

22

Echo 17801005630

TRIGGER, THROTTLE
(Superseded to 17801005631)

$1.49

$

In Stock, Qty 20+

0

23

Echo 17804805630

GUIDE, CABLE

$1.99

$

In Stock, Qty 20+

0

24

Echo 35111109630

GRIP, HANDLE
(Superseded to 35111144530)

$12.99

$

Usually ships in 2-4 days

0

26

Echo 61021723330

LINER
(Superseded to Discontinued)

$

$

Not available

27

Echo 17812740630

TUBE - VINYL
(Superseded to Discontinued)

$

$

Not available

28

Echo 17800140630

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

29

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 3 left!

0

30

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

31

Echo 61001323330

DRIVESHAFT - FLEXIBLE
(Superseded to C506000090)

$23.99

$

Usually ships in 2-4 days

0

36

Echo 17500540630

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

37

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 20+

0

38

Echo 90081936201

BEARING, BALL - 6201
(Superseded to 90081906201)

$12.99

$

In Stock, Qty 8

0

39

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 10

0

40

Echo 61022340630

FLANGE, DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

41

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

42

Echo 61091040630

CUSHION
(Superseded to Discontinued)

$

$

Not available

43

Echo 61092240630

CLAMP, MAIN PIPE
(Superseded to Discontinued)

$

$

Not available

44

Echo 61092340630

Holder, housing
(Superseded to Discontinued)

$

$

Not available
