SRM-201 F - Echo String Trimmer Cylinder, Exhaust, Intake Parts Diagram

String Trimmer

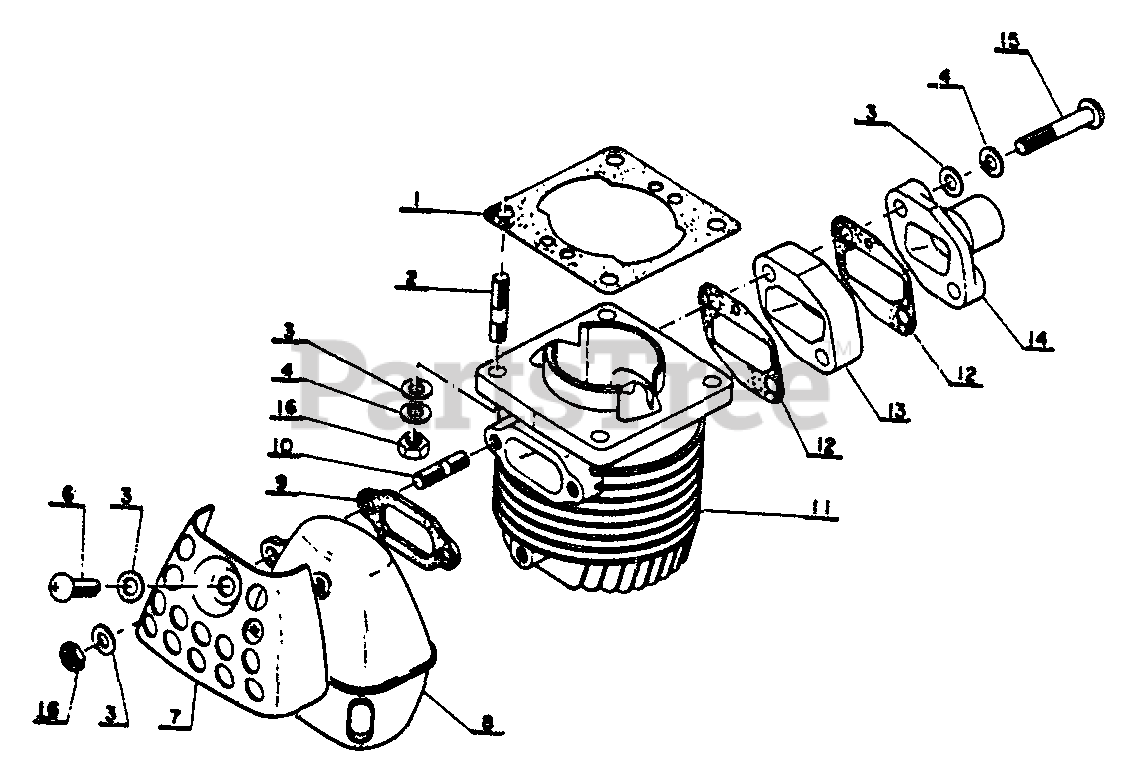

Cylinder, Exhaust, Intake Parts Diagram

  • Title

1

Echo HK1010100

PACKING, CYLINDER

$

$

Currently unavailable

2

Echo HK1002140

STUD

$

$

Currently unavailable

3

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

4

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

5

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

6

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

7

Echo HK1456210

SHIELD, MUFFLER

$

$

Currently unavailable

8

Echo HK1456100

MUFFLER

$

$

Currently unavailable

9

Echo HK1455100

GASKET, EXHAUST

$

$

Currently unavailable

10

Echo HK1010140

STUD

$

$

Currently unavailable

11

Echo HK1010110

CYLINDER

$

$

Currently unavailable

12

Echo HK1300100

GASKET, INTAKE

$

$

Currently unavailable

13

Echo HK1300170

INSULATOR

$

$

Currently unavailable

14

Echo HK1305104

PIPE, SUCTION

$

$

Currently unavailable

15

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

16

Echo AK4330200

LOCKNUT

$

$

Currently unavailable
