SRM-201 F - Echo String Trimmer Driving Gear and Shaft Parts Diagram

String Trimmer

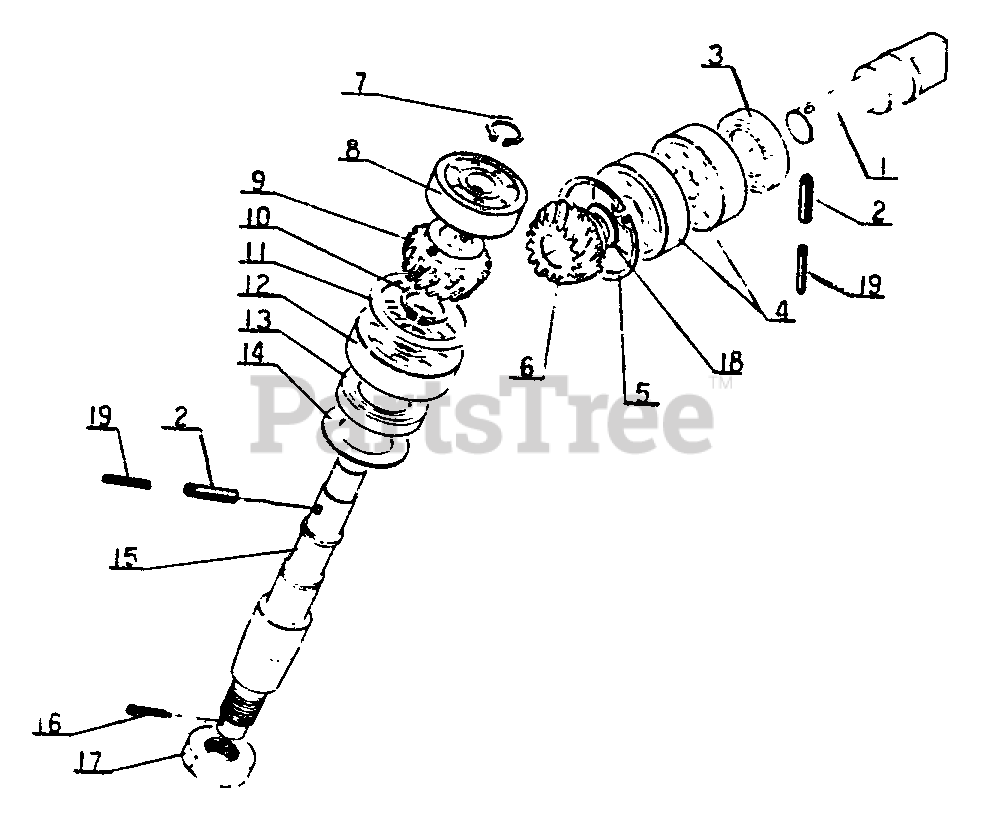

Driving Gear and Shaft Parts Diagram

  • Title

Echo EK6104000

GEAR CASE ASSY

$

$

Currently unavailable

1

Echo EK6103240

Driving shaft connector

$

$

Currently unavailable

2

Echo EK6103220

PIN - SPRING -- 4X16

$

$

Currently unavailable

3

Echo AK6104190

SEAL, OIL

$

$

Currently unavailable

4

Echo BB6200

BEARING, BALL

$

$

Currently unavailable

5

Echo 90070200030

RING, RETAINING - 30

$2.49

$

Usually ships in 2-4 days

0

6

Echo EK6103110

GEAR - DRIVE

$

$

Currently unavailable

7

Echo 90070600009

RING, RETAINING - 9

$1.49

$

In Stock, Qty 17

0

8

Echo 90080300609

BEARING, BALL - 609

$19.99

$

Usually ships in 2-4 days

0

9

Echo EK6103120

GEAR - DRIVE

$

$

Currently unavailable

10

Echo 90070600012

RING, RETAINING - 12

$1.49

$

In Stock, Qty 20+

0

11

Echo EN6103160

WASHER, ADJUST - B

$

$

Currently unavailable

12

Echo 9403536201

BEARING, BALL - 6201

$9.99

$

In Stock, only 3 left!

0

13

Echo EK6104130

SEAL, OIL

$

$

Currently unavailable

14

Echo EN6104160

WASHER

$

$

Currently unavailable

15

Echo EK6103100

DRIVESHAFT

$

$

Currently unavailable

16

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 19

0

17

Echo EK6103200

NUT - 10 -- LEFT HAND

$

$

Currently unavailable

18

Echo EK6103170

WASHER, ADJUST - A

$

$

Currently unavailable

19

Echo EK6103230

PIN - SPRING -- 2.5X16

$

$

Currently unavailable
