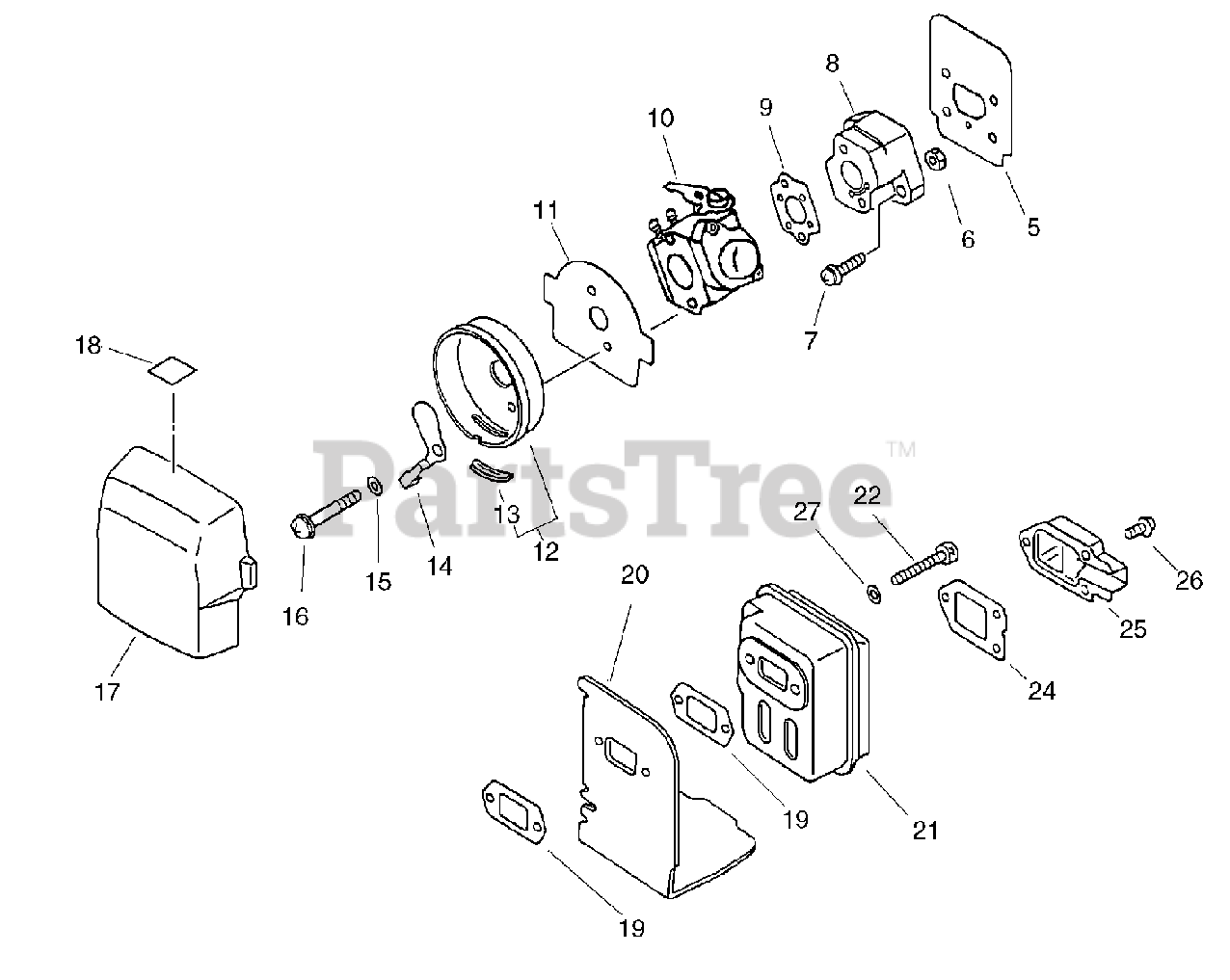

SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) Air Cleaner, Muffler Parts Diagram

String Trimmer

Air Cleaner, Muffler Parts Diagram

  • Title

5

Echo 130010-42032

Gasket,Intake

$2.49

$

In Stock, Qty 20+

0

6

Echo 900500-00005

Nut 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

7

Echo 900238-05020

Screw 5*20

$0.99

$

In Stock, Qty 18

0

8

Echo 130017-42031

Insulator, Intake

$9.49

$

In Stock, Qty 15

0

9

Echo 130016-42031

Gasket, Intake

$1.49

$

In Stock, Qty 20+

0

10

Echo 125200-44733

Carburetor C1U-K9A

$

$

Not available

11

Echo 130319-42030

Fixture,Air Cleaner

$

$

Not available

12

Echo 130301-42030

Case, Air Cleaner

$6.99

$

Usually ships in 2-4 days

0

13

Echo 178810-42030

Grommet, Choke

$

$

Not available

14

Echo 178515-46731

Shutter, Choke

$2.99

$

Usually ships in 2-4 days

0

15

Echo 178516-00830

Spacer

$0.99

$

In Stock, Qty 20+

0

16

Echo 900242-05057

Screw 5*57

$0.99

$

In Stock, Qty 8

0

17

Echo 130310-46730

Filter, Air

$11.99

$

Usually ships in 2-4 days

0

18

Echo 890169-47530

Label, Adjusting

$1.49

$

Usually ships in 2-4 days

0

19

V104-000160

Gasket,Exhaust

$

$

Not available

20

Echo A320-000251

Cover,Muffler

$

$

Currently unavailable

21

Echo 145806-42030

Muffler

$46.99

$

In Stock, only 3 left!

0

22

Echo 900105-05055

Bolt, H.S. 5*55

$1.49

$

In Stock, Qty 20+

0

24

Echo 145866-42031

Gasket, Muffler Lid

$2.49

$

In Stock, Qty 20+

0

25

Echo 145809-42030

Lid, Muffler

$7.49

$

Usually ships in 2-4 days

0

26

Echo 900242-04010

Screw 4*10

$0.99

$

In Stock, Qty 20+

0

27

Echo 900600-00005

Washer 5

$0.99

$

In Stock, Qty 20+

0
