SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) Cylinder, Crankcase, Piston Parts Diagram

String Trimmer

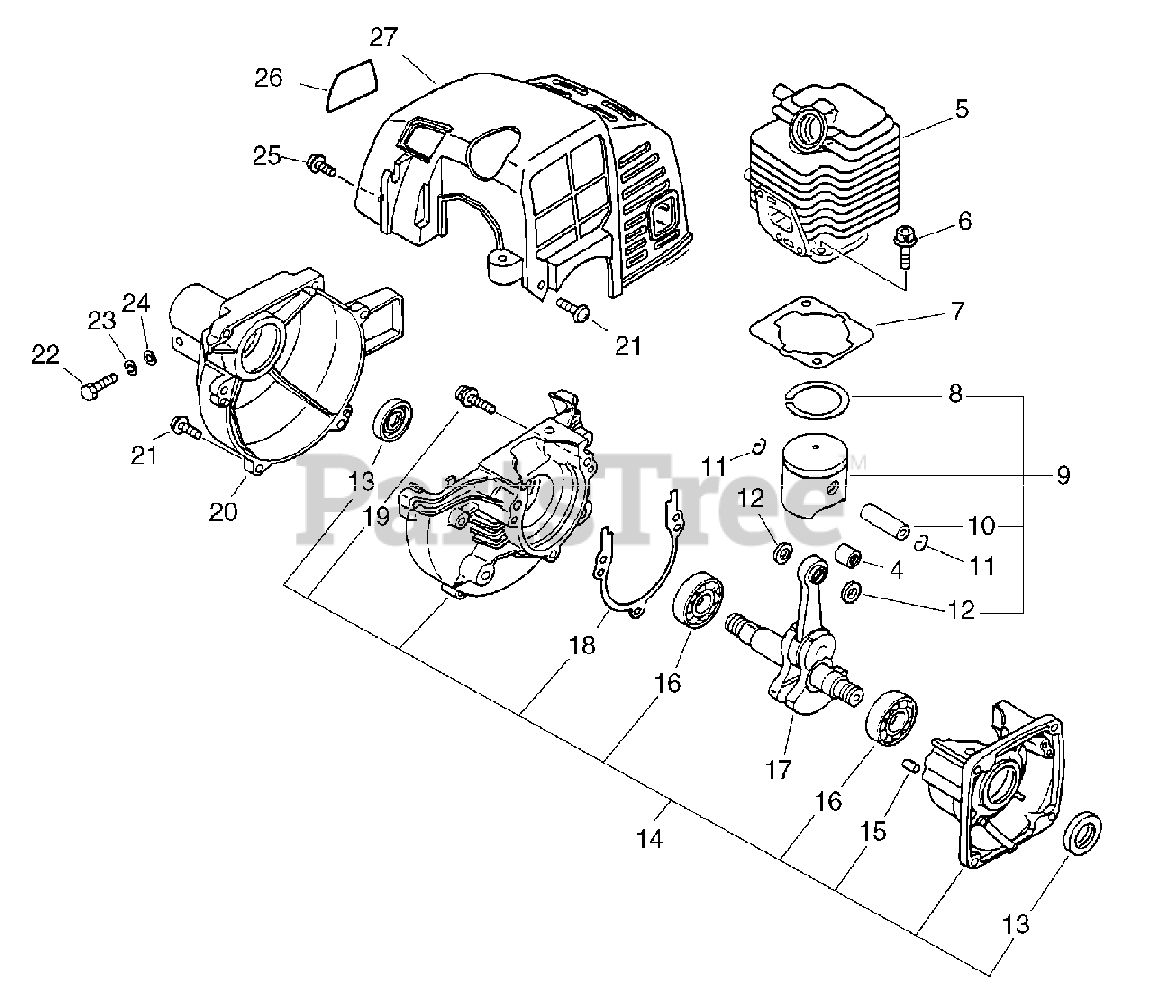

Cylinder, Crankcase, Piston Parts Diagram

  • Title

5

Echo 101011-45230

Cylinder

$153.99

$

Usually ships in 2-4 days

0

6

Echo 900162-05022

Bolt, H.S. 5*22

$0.99

$

In Stock, Qty 5

0

7

Echo 101010-44332

Gasket, Cyl. Base

$4.99

$

In Stock, Qty 12

0

9

Echo 100000-44331

Piston Kit

$78.99

$

Usually ships in 2-4 days

0

8

Echo 100011-05330

Ring, Piston
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 15

0

10

Echo 100013-11520

Pin, Piston

$8.49

$

In Stock, only 2 left!

0

11

Echo 100015-04630

Circlip, Piston Pin
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

12

Echo 100014-11520

Spacer, Piston Pin

$3.99

$

Usually ships in 2-4 days

0

14

Echo 100204-51031

Crankcase Kit

$157.99

$

Usually ships in 2-4 days

0

13

Echo 100212-42031

Oilseal

$7.99

$

In Stock, Qty 5

0

15

Echo 100215-03930

Pin, Dowel
(Superseded to 90033040080)

$1.49

$

In Stock, Qty 13

0

16

Echo 94035-36201

Bearing Ball
(Superseded to 9403536201)

$9.99

$

In Stock, only 3 left!

0

18

Echo 100242-42030

Gasket, Crankcase

$1.99

$

In Stock, Qty 10

0

19

Echo 900162-05028

Bolt, H.S. 5*28

$2.49

$

In Stock, Qty 11

0

17

Echo A011-000101

Crankshaft,Asm

$

$

Currently unavailable

4

Echo V553-000010

Bearing,Needle 8

$

$

Currently unavailable

20

Echo 101511-44630

Cover, Fan (BS)

$52.99

$

In Stock, only 2 left!

0

21

Echo 900238-04016

Screw 4*16

$0.99

$

Usually ships in 2-4 days

0

22

Echo 900151-05025

Bolt 5*25

$0.99

$

Usually ships in 2-4 days

0

23

Echo 900605-00005

Washer, Spring 5

$0.99

$

In Stock, Qty 7

0

24

Echo 900600-00005

Washer 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 900238-04012

Screw 4*12

$0.99

$

In Stock, Qty 20+

0

26

Echo 890112-40730

Label, Model

$

$

Currently unavailable

27

Echo 101514-42031

Cover, Cylinder

$29.99

$

Usually ships in 2-4 days

0
