SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) Gear Case(U) Parts Diagram

String Trimmer

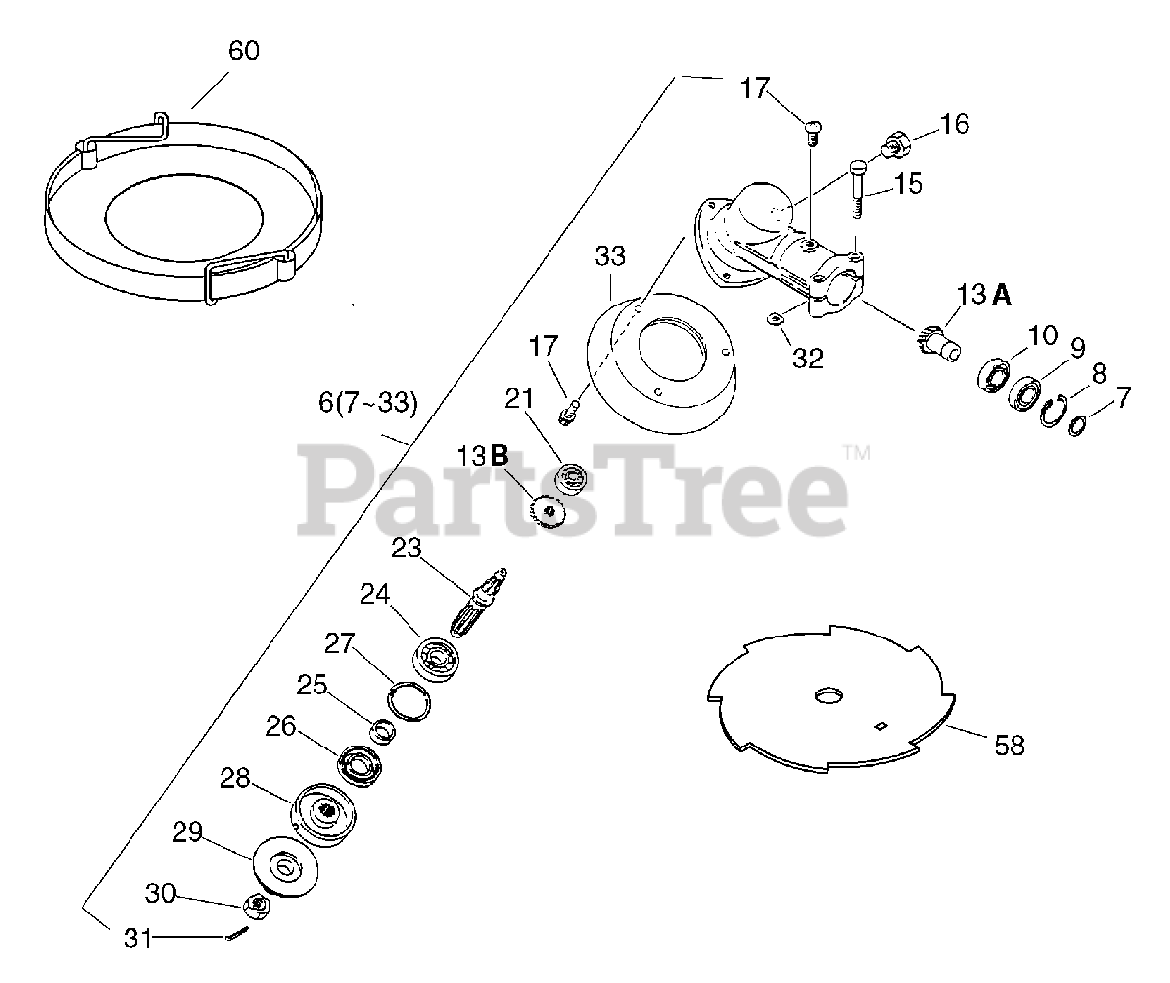

Gear Case(U) Parts Diagram

  • Title

6

Echo 610400-41630

Housing Assy, Gear

$287.99

$

Usually ships in 2-4 days

0

7

900706-00010

Circlip 10

$

$

Not available

8

900702-00022

Circlip 22

$

$

Not available

9

900858-06900

Bearing, Ball 6900Z

$

$

Not available

10

900855-06900

Bearing, Ball 6900

$

$

Not available

13

Echo 610300-40830

Gear Set

$125.99

$

Usually ships in 2-4 days

0

15

Echo 900142-05028

Bolt 5*28 (W/W,SW)

$0.99

$

In Stock, Qty 20+

0

16

Echo 610434-50031

Bolt 8* 8

$1.99

$

In Stock, Qty 7

0

17

Echo 900242-05010

Screw 5*10

$0.99

$

In Stock, Qty 20+

0

21

900810-00626

Bearing, Ball 626

$

$

Not available

23

Echo 610310-40830

Shaft, P.T.O.
(Superseded to Discontinued)

$

$

Not available

24

900800-06000

Bearing, Ball 6000

$

$

Not available

25

Echo 610315-22830

Spacer

$6.49

$

Usually ships in 2-4 days

0

26

Echo 610413-22830

Oilseal

$5.99

$

Usually ships in 2-4 days

0

27

900702-00026

Circlip 26

$

$

Not available

28

Echo 610313-22830

Plate, Adapter (U)

$19.99

$

Usually ships in 2-4 days

0

29

Echo 610314-27230

Plate, Adapter

$12.99

$

Usually ships in 2-4 days

0

30

Echo 900511-00010

Nut 10 (L-H)

$1.49

$

In Stock, Qty 20+

0

31

Echo 900300-20022

Pin, Split 2*22

$0.99

$

In Stock, Qty 20+

0

32

Echo 610239-04130

Washer, Shim

$0.99

$

In Stock, Qty 7

0

33

Echo 610443-22830

Plate, Guard (WH)

$4.49

$

Usually ships in 2-4 days

0

58

Echo 696001-48031

Blade, 8-Cutter

$

$

Currently unavailable

60

Echo 898503-08031

Cover Set, Cutter

$

$

Currently unavailable
