SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) Handlebar (U) Parts Diagram

String Trimmer

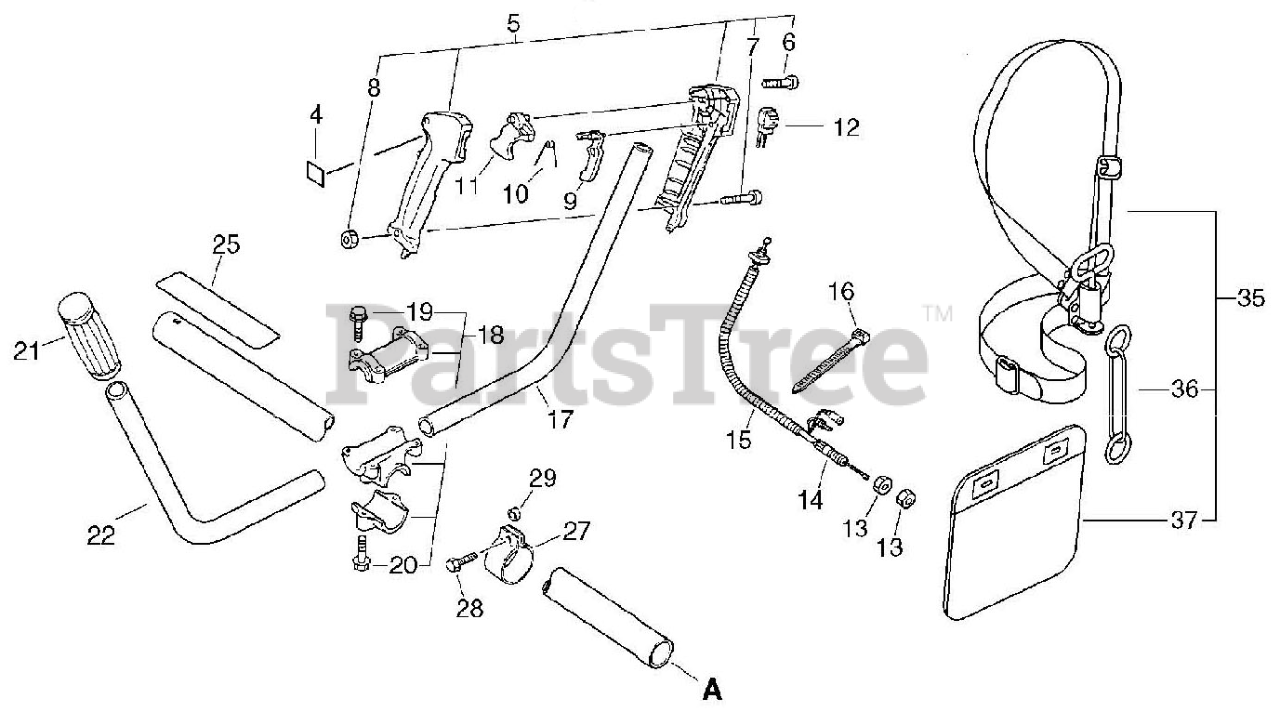

Handlebar (U) Parts Diagram

  • Title

4

Echo 89015739130

LABEL - STOP
(Superseded to 89015739131)

$2.99

$

Usually ships in 2-4 days

0

5

Echo 35110247530

CONTROL HANDLE KIT

Note: Includes Items 6-8

$41.99

$

In Stock, only 2 left!

0

6

Echo 90024603025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

7

Echo 90022005030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

8

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

9

Echo 17801205960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

10

Echo 17801335631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

11

Echo 17801005960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

12

Echo 16340149230

IGNITION SWITCH ASSY
(Superseded to A440000340)

$14.99

$

In Stock, only 1 left!

0

13

Echo 17802105530

NUT

$3.49

$

Usually ships in 2-4 days

0

14

Echo 17800147530

CABLE, THROTTLE

$17.99

$

Usually ships in 2-4 days

0

15

Echo 17812747530

TUBE
(Superseded to V475000000)

$6.49

$

Usually ships in 2-4 days

0

16

Echo 17812143230

STRAP, TIE

$3.99

$

In Stock, only 3 left!

0

17

Echo 35101043130

HANDLE, FRONT
(Superseded to Discontinued)

$

$

Not available

18

Echo P021000460

BRACKET, HANDLE

Note: Includes Items 19-20

$34.99

$

Usually ships in 2-4 days

0

19

Echo 90014205025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

20

Echo 90014206030

BOLT - 6×30

$0.99

$

Usually ships in 2-4 days

0

21

Echo 35131102330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

22

Echo 35121005530

HANDLE, LEFT

$

$

Not available

25

Echo 89061743130

LABEL - CAUTION - ISO

$27.99

$

Usually ships in 2-4 days

0

27

Echo 30120708930

HOOK

$5.99

$

Usually ships in 2-4 days

0

28

Echo 90010005018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

29

Echo 69901203330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

35

Echo 30100141331

HARNESS ASSY, SHOULDER

Note: Includes Items 36-37

$

$

Currently unavailable

36

Echo 30130524330

HOOK

$12.99

$

Usually ships in 2-4 days

0

37

Echo C652000000

PAD, HIP

$28.99

$

Usually ships in 2-4 days

0
