SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) Intake Parts Diagram

String Trimmer

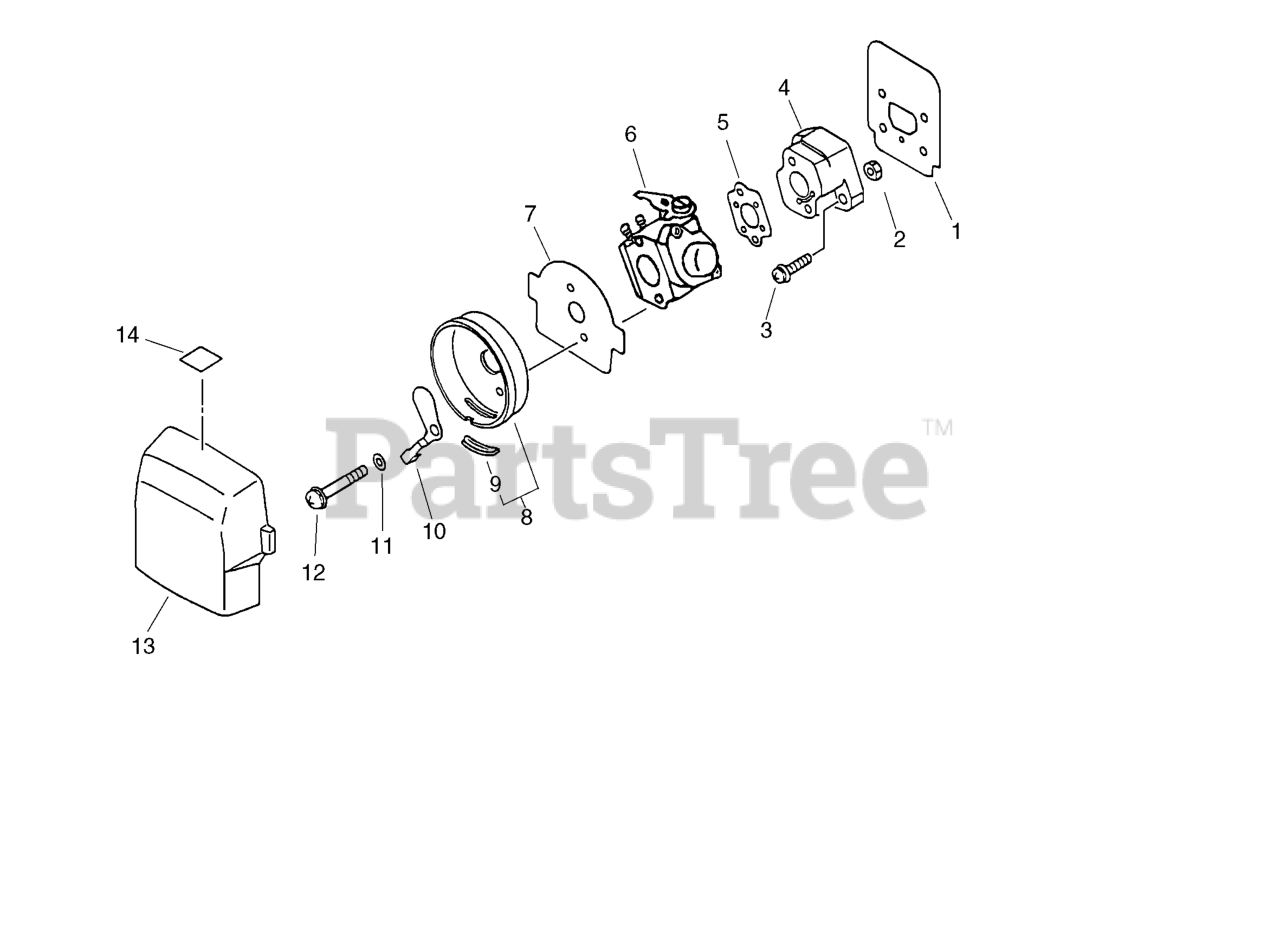

Intake Parts Diagram

  • Title

1

Echo 13001042032

HEAT SHIELD, INTAKE

$2.99

$

In Stock, Qty 12

0

2

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90023805020

SCREW 5×20

$0.99

$

In Stock, Qty 10

0

4

Echo 13001742031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

5

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

6

Echo 12520044733

CARBURETOR
(Superseded to Discontinued)

$

$

Not available

7

Echo 13031942030

PLATE, AIR FILTER

$2.99

$

Usually ships in 2-4 days

0

8

Echo 13030142030

CASE, AIR FILTER

Note: Includes Item 9

$8.49

$

In Stock, only 2 left!

0

9

Echo 17881042030

BUSHING
(Superseded to Discontinued)

$

$

Not available

10

Echo 17851546731

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

11

Echo 17851600830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

12

Echo 90024205057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

13

Echo 13031046730

FILTER, AIR

$14.99

$

Usually ships in 2-4 days

0

14

Echo 89016947530

LABEL - ADJUSTING

$

$

Not available
