SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) Loop Handle (L) Parts Diagram

String Trimmer

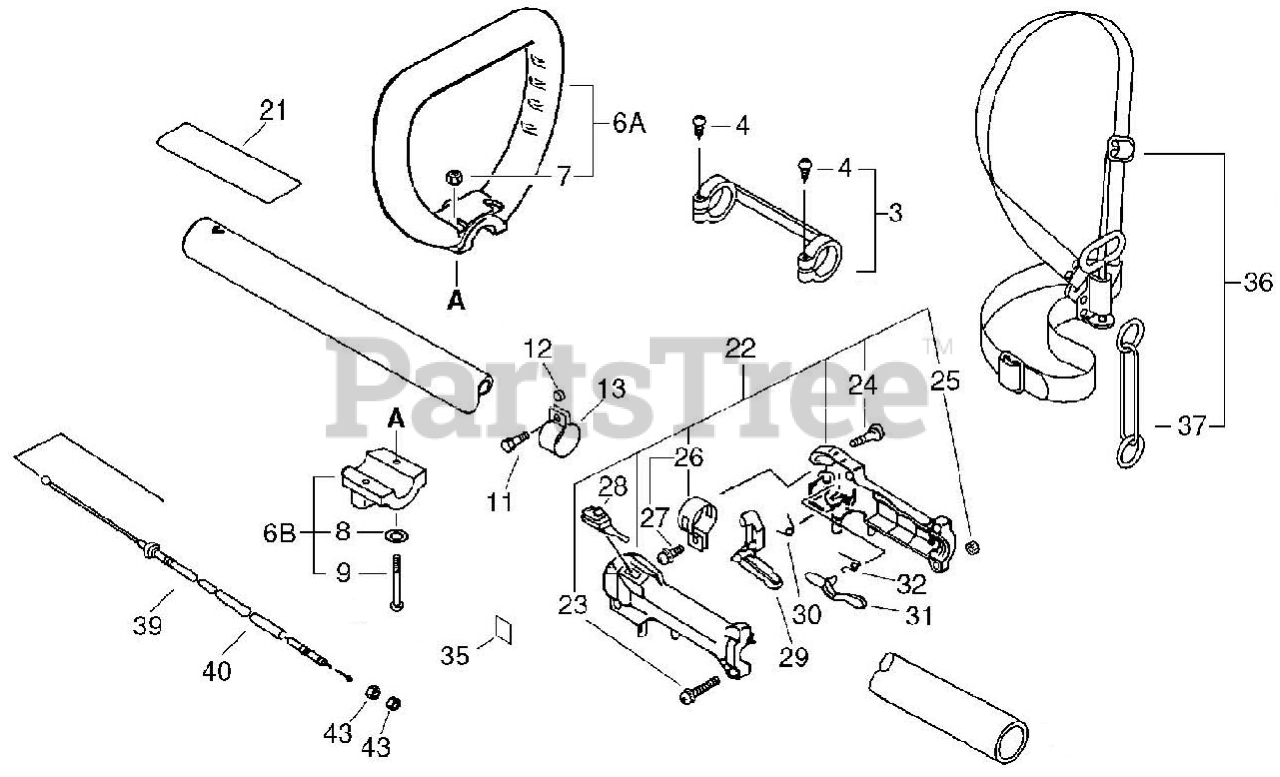

Loop Handle (L) Parts Diagram

  • Title

3

Echo 61028146730

COLLAR
(Superseded to Discontinued)

Note: Includes Items 4

$

$

Not available

4

Echo 90025304025

SCREW 4×25

$0.99

$

In Stock, Qty 9

0

6

Echo 35120108930

LOOP HANDLE ASSY

Note: Includes Items 7-9

$45.99

$

Usually ships in 2-4 days

0

7

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

8

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

9

Echo 90022005040

SCREW 5×40

$0.99

$

In Stock, Qty 8

0

11

Echo 90010005018

BOLT 5×18

$0.99

$

In Stock, Qty 8

0

12

Echo 69901203330

SPACER, GUARD

$1.99

$

In Stock, Qty 13

0

13

Echo 30120708930

HOOK

$5.99

$

Usually ships in 2-4 days

0

21

Echo 89061743130

LABEL - CAUTION - ISO

$27.99

$

Usually ships in 2-4 days

0

22

Echo 35110229430

CONTROL HANDLE KIT

Note: Includes Items 23-26

$16.99

$

Usually ships in 2-4 days

0

23

Echo 90023805025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

24

Echo 90025304018

SCREW, TAPPING 4×18

$

$

Currently unavailable

25

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

26

Echo 30120029430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes Item 27

$11.99

$

In Stock, only 2 left!

0

27

Echo 90023805012

SCREW 5×12

$0.99

$

In Stock, Qty 7

0

28

Echo 16340052130

SWITCH, IGNITION

$

$

Currently unavailable

29

Echo 17801042232

CONTROL, THROTTLE

$6.99

$

Usually ships in 2-4 days

0

30

Echo 17804342230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

31

Echo 17801242230

LOCKOUT, THROTTLE

$2.99

$

Usually ships in 2-4 days

0

32

Echo 17801342230

SPRING, THROTTLE LOCKOUT

$1.99

$

Usually ships in 2-4 days

0

35

Echo 89015739130

LABEL - STOP
(Superseded to 89015739131)

$2.99

$

Usually ships in 2-4 days

0

36

Echo 30100055231

HARNESS ASSY

Note: Includes Item 37

$

$

Currently unavailable

37

Echo 30130524330

HOOK

$12.99

$

Usually ships in 2-4 days

0

39

Echo 17800152130

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

40

Echo 17812724030

PIPE

$0.99

$

In Stock, Qty 9

0

43

Echo 90050200006

NUT M6

$0.99

$

In Stock, Qty 12

0
