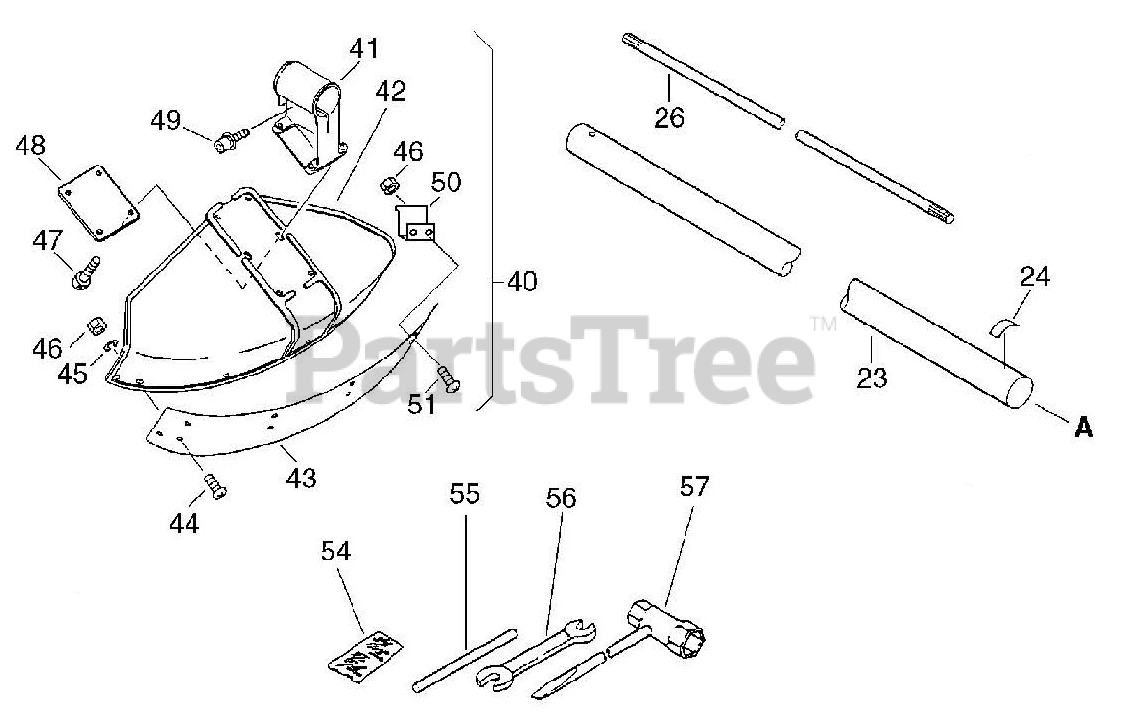

SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) Shield, Pipe, Tools Parts Diagram

String Trimmer

Shield, Pipe, Tools Parts Diagram

  • Title

23

Echo 61020628230

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

24

Echo 89015204930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

26

Echo 61001827830

DRIVESHAFT

$58.99

$

Usually ships in 2-4 days

0

40

Echo 69900144730

SHIELD ASSY

Note: Includes Items 41-51

$

$

Not available

41

Echo 69901127230

BRACKET, SHIELD
(Superseded to Discontinued)

$

$

Not available

42

Echo 69901054430

SHIELD, DEBRIS

$58.99

$

Usually ships in 2-4 days

0

43

Echo 69901352130

EXTENSION, SHIELD

$21.99

$

Usually ships in 2-4 days

0

44

Echo 90024205018

SCREW 5×18

$0.99

$

In Stock, only 2 left!

0

45

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

46

Echo 90050000005

NUT M5

$0.99

$

In Stock, Qty 20+

0

47

Echo 90024205014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

48

Echo 69901552130

BRACKET, SHIELD

$11.99

$

Usually ships in 2-4 days

0

49

Echo 90014205025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

50

Echo 69901654530

CUTTER, LINE

$27.99

$

Usually ships in 2-4 days

0

51

Echo 90024205012

SCREW 5×12

$0.99

$

In Stock, Qty 20+

0

54

Echo 89850201130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

55

Echo 89751801131

TOOL, LOCKING 5×120 MM

$

$

Not available

56

Echo 89511200330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

57

Echo X602000020

T-WRENCH 17×19 L200

$4.49

$

In Stock, Qty 7

0
