SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) Starter Parts Diagram

String Trimmer

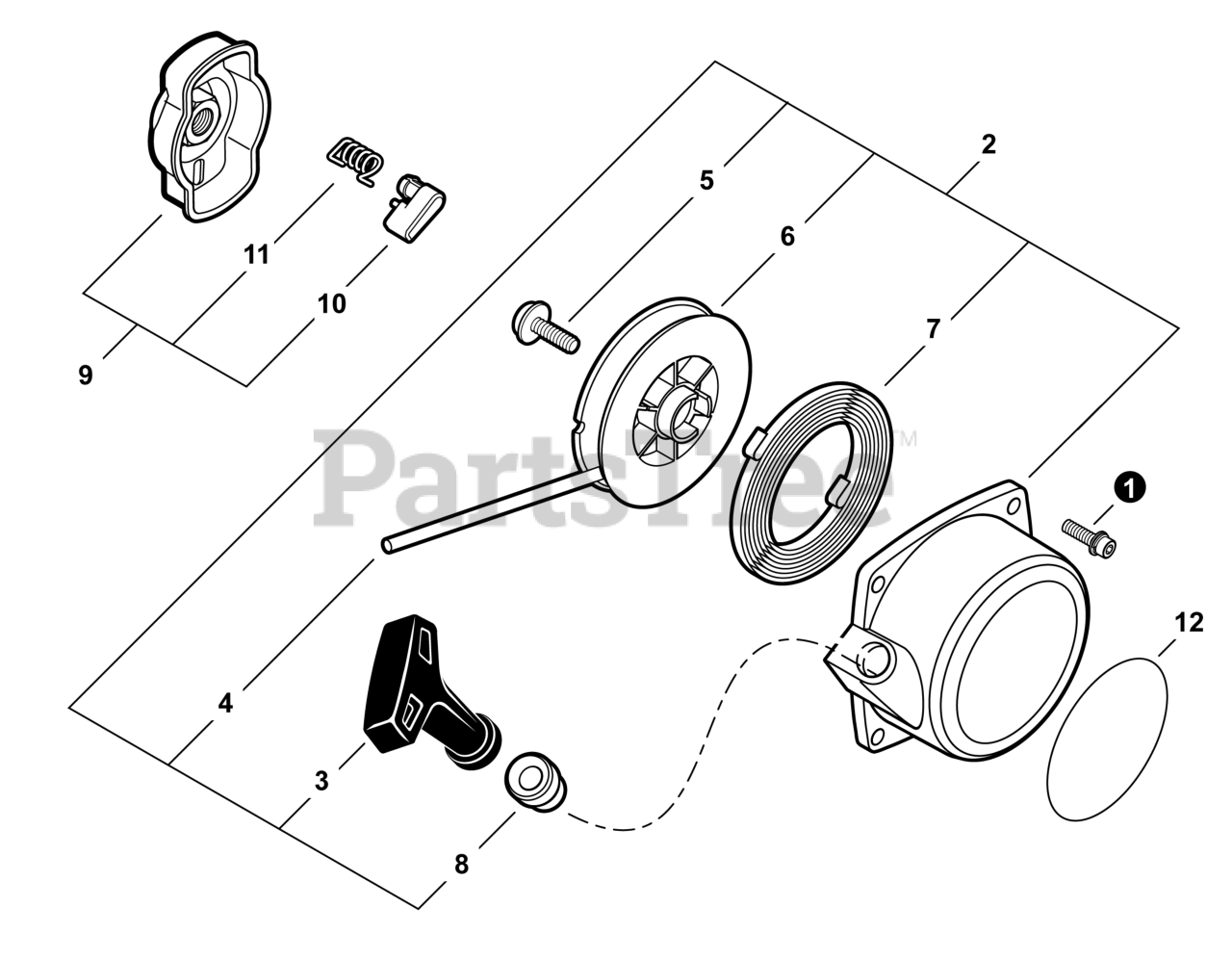

Starter Parts Diagram

  • Title

1

Echo 90023804016

SCREW 4×16
(Superseded to Discontinued)

$

$

Not available

2

Echo 17720042033

STARTER ASSY, RECOIL

Note: Includes Items 3-8

$58.99

$

In Stock, Qty 10

0

3

Echo 17722806530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

4

Echo 17722610120

ROPE, STARTER 3.0×1000

$6.99

$

In Stock, only 2 left!

0

5

Echo 17723644330

SCREW

$3.99

$

In Stock, Qty 10

0

6

Echo 17721544430

REEL, ROPE

$10.99

$

In Stock, Qty 6

0

7

Echo 17722042030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

8

Echo 17722742030

GUIDE, ROPE

$2.99

$

Usually ships in 2-4 days

0

9

Echo 17720244330

PAWL ASSY, STARTER
(Superseded to 17720244331)

Note: Includes Items 10-11

$19.99

$

In Stock, only 2 left!

0

10

Echo 17721844330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

11

Echo 17723442030

SPRING, RETURN
(Superseded to 17723412220)

$4.99

$

In Stock, Qty 13

0

12

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0
