SRM-2010 - Echo String Trimmer (SN: 001001 - 999999) U-Handle Parts Diagram

String Trimmer

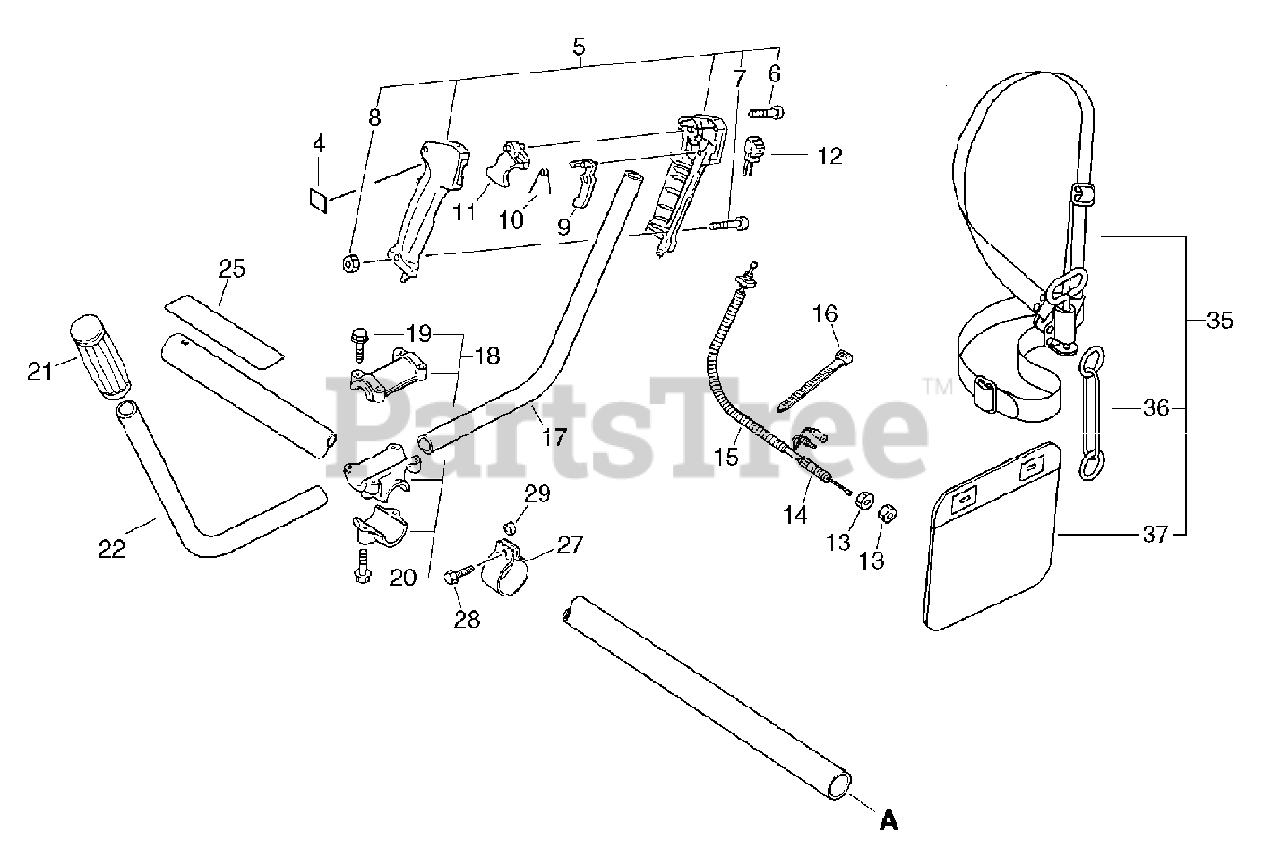

U-Handle Parts Diagram

  • Title

4

Echo 890157-39130

Label, Switch

$

$

Not available

5

Echo 351102-47530

Grip Assy, f-Handle

$34.99

$

In Stock, only 1 left!

0

6

Echo 900246-03025

Screw 3*25

$0.99

$

Usually ships in 2-4 days

0

7

Echo 900220-05030

Screw 5*30

$0.99

$

In Stock, only 3 left!

0

8

Echo 900500-00005

Nut 5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

9

Echo 178012-05960

Lockout, Throttle

$5.99

$

In Stock, only 1 left!

0

10

Echo 178013-35631

Spring, Thr. Lock

$2.49

$

In Stock, Qty 13

0

11

Echo 178010-05960

Control, Throttle

$5.49

$

In Stock, Qty 9

0

12

Echo 163401-49230

Switch, Ignition
(Superseded to A440000340)

$11.99

$

In Stock, only 1 left!

0

13

Echo 178021-05530

Locknut

$2.99

$

Usually ships in 2-4 days

0

14

Echo 178001-47530

Wire, Throttle

$14.99

$

Usually ships in 2-4 days

0

15

Echo 178127-47530

Tube
(Superseded to V475000000)

$5.49

$

Usually ships in 2-4 days

0

16

Echo 178121-43230

Band

$3.49

$

In Stock, only 4 left!

0

17

Echo 351010-43130

Handle, Front
(Superseded to Discontinued)

$

$

Not available

18

Echo P021-000460

Fixture,Asy Handle

$

$

Currently unavailable

19

Echo 900142-05025

Bolt 5*25 (W/W,SW)

$0.99

$

In Stock, Qty 10

0

20

Echo 900142-06030

Bolt 6*30 (W/W,SW)

$0.99

$

Usually ships in 2-4 days

0

21

Echo 351311-02330

Grip, Handle

$6.49

$

In Stock, Qty 10

0

22

Echo 351210-05530

Handle, Left (SL)

$

$

Not available

25

Echo 890617-43130

Label,Caution

$22.99

$

Usually ships in 2-4 days

0

27

Echo 301207-08930

Hook

$4.99

$

In Stock, Qty 5

0

28

Echo 900100-05018

Bolt 5*18

$0.99

$

In Stock, Qty 11

0

29

Echo 699012-03330

Spacer

$1.49

$

In Stock, Qty 16

0

35

Echo 301001-41331

Harness Asy,Shoulder

$

$

Currently unavailable

36

Echo 301305-24330

Link
(Superseded to 30130524330)

$10.99

$

In Stock, only 1 left!

0

37

C652-000000

Pad,Waist

$

$

Not available
