SRM-202 DA - Echo String Trimmer Handle Parts Diagram

String Trimmer

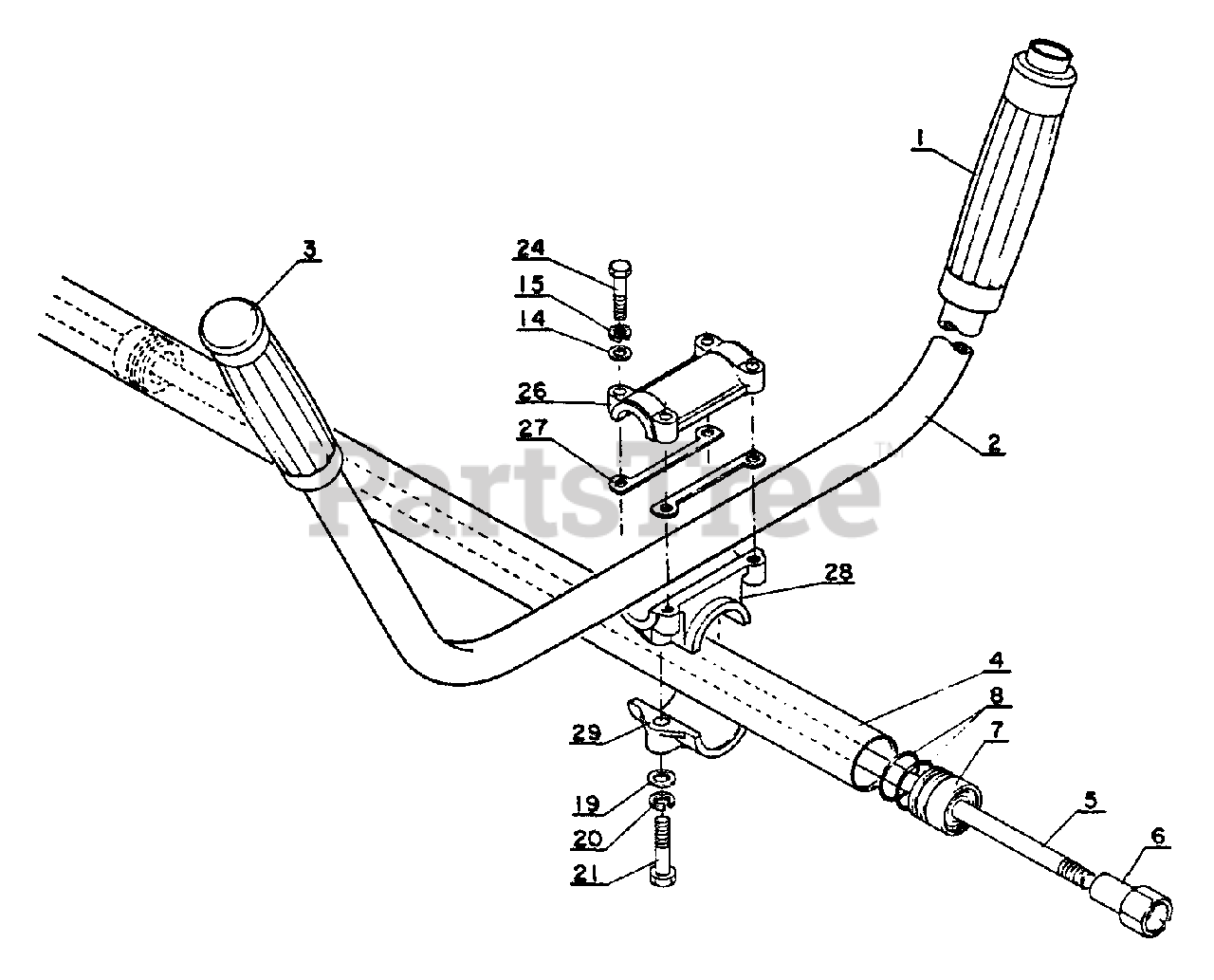

Handle Parts Diagram

  • Title

1

Echo 35131504230

GRIP, HANDLE
(Superseded to 35131527930)

$6.49

$

In Stock, only 2 left!

0

2

Echo 35130005330

U-HANDLE
(Superseded to Discontinued)

$

$

Not available

3

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 1 left!

0

4

Echo 61020604630

MAIN PIPE ASSY
(Superseded to Discontinued)

$

$

Not available

7

Echo 61010504130

STOPPER
(Superseded to Discontinued)

$

$

Not available

8

Echo 90072000022

O-RING 22

$2.49

$

Usually ships in 2-4 days

0

5

Echo 61001104630

DRIVESHAFT

$57.99

$

Usually ships in 2-4 days

0

6

Echo 61001204630

COUPLER

$42.99

$

Usually ships in 2-4 days

0

14

UNKNOWN

$

$

Not available

15

UNKNOWN

$

$

Not available

19

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060500006

WASHER, SPRING 6

$0.99

$

In Stock, Qty 15

0

21

Echo 90010006032

BOLT - 6×32
(Superseded to Discontinued)

$

$

Not available

24

Echo 90010005025

BOLT - 5×25

$3.49

$

Usually ships in 2-4 days

0

26

Echo 35130104130

BRACKET ASSY, HANDLE

$37.99

$

Usually ships in 2-4 days

0

28

Echo 35130104130

BRACKET ASSY, HANDLE

$37.99

$

Usually ships in 2-4 days

0

29

Echo 35130104130

BRACKET ASSY, HANDLE

$37.99

$

Usually ships in 2-4 days

0

27

Echo 35131904130

WASHER

$0.99

$

Usually ships in 2-4 days

0
