SRM-202 F - Echo String Trimmer Gear Case Parts Diagram

String Trimmer

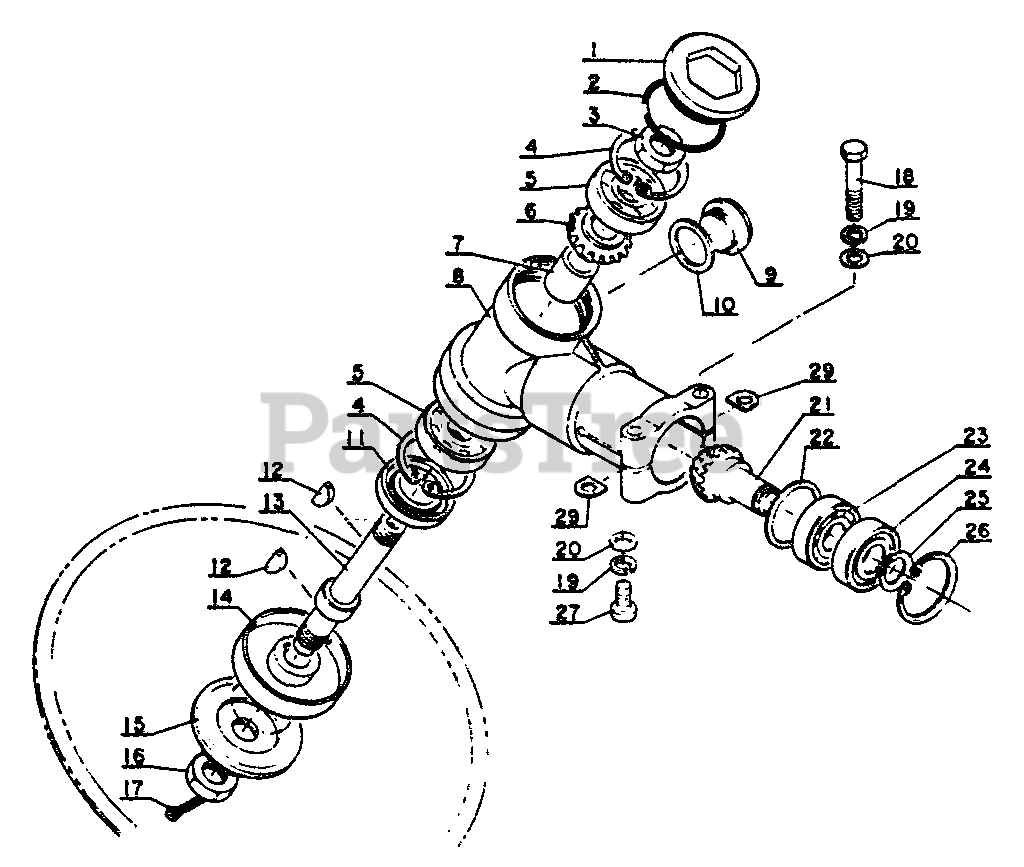

Gear Case Parts Diagram

  • Title

Echo 61040004630

GEAR CASE ASSY
(Superseded to Discontinued)

$

$

Not available

1

Echo 61043104130

LID, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

2

Echo 61043204130

O-RING - 30
(Superseded to Discontinued)

$

$

Not available

3

Echo 90050000010

NUT - 10

$0.99

$

Usually ships in 2-4 days

0

4

Echo 90070200030

RING, RETAINING - 30

$2.49

$

In Stock, only 4 left!

0

5

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

6

Echo 61030004630

GEAR SET
(Superseded to Discontinued)

$

$

Not available

21

Echo 61030004630

GEAR SET
(Superseded to Discontinued)

$

$

Not available

7

Echo 61031504130

SPACER
(Superseded to Discontinued)

$

$

Not available

8

Echo 61041004130

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

9

Echo 61051001930

FITTING, GREASE

$4.99

$

In Stock, only 1 left!

0

10

Echo 61051101230

CASE, GEAR

$0.99

$

Usually ships in 2-4 days

0

11

Echo 10021200120

SEAL, OIL

$5.49

$

Usually ships in 2-4 days

0

12

Echo 61032502730

KEY

$1.49

$

Usually ships in 2-4 days

0

13

Echo 61031004130

DRIVESHAFT
(Superseded to Discontinued)

$

$

Not available

14

Echo 61031304130

ADAPTOR, BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

15

Echo 61031404130

ADAPTOR, BLADE - LOWER
(Superseded to 61031404131)

$9.49

$

In Stock, Qty 20+

0

16

Echo 61032002630

NUT - 10 -- LEFT HAND
(Superseded to 90051100010)

$1.49

$

In Stock, Qty 20+

0

17

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

19

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

20

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

22

Echo 61031604130

WASHER

$0.99

$

Usually ships in 2-4 days

0

23

Echo 90080006001

BEARING, BALL - 6001
(Superseded to 90080036001)

$9.49

$

In Stock, Qty 8

0

24

Echo 90080106001

BEARING, BALL - 6001
(Superseded to 90080206001)

$9.99

$

Usually ships in 2-4 days

0

25

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 15

0

26

Echo 90070200028

RING, RETAINING - 28

$1.49

$

In Stock, Qty 19

0

27

Echo 90021005010

SCREW - 5X10
(Superseded to 90022005010)

$0.99

$

In Stock, Qty 10

0

18

Echo 90010005030

BOLT - 5X30

$0.99

$

Usually ships in 2-4 days

0

19

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, only 4 left!

0

20

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

29

Echo 61023904130

SHIM

$0.99

$

In Stock, Qty 7

0
