SRM-202 F - Echo String Trimmer Starter Parts Diagram

String Trimmer

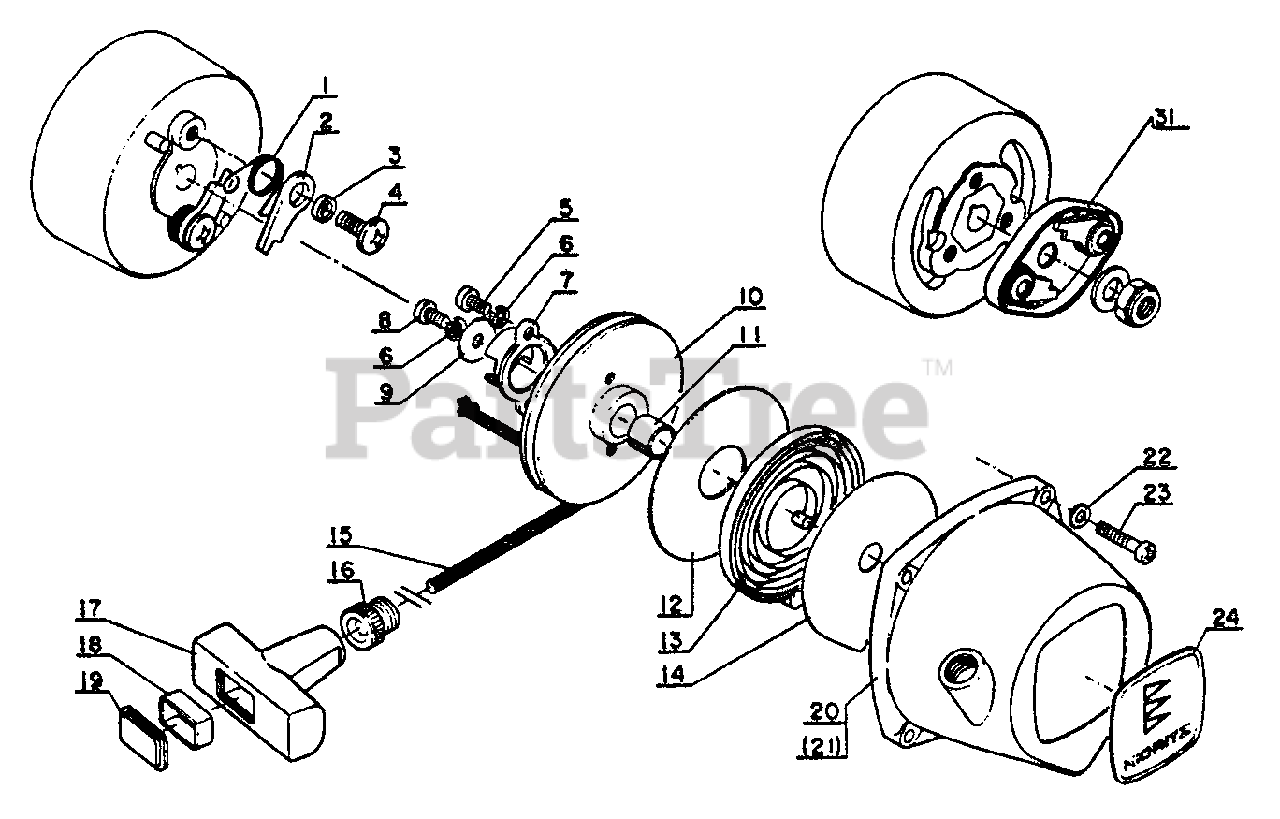

Starter Parts Diagram

  • Title

8

Echo 17720004630

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 90021004008

SCREW - 4X8
(Superseded to 90022004008)

$0.99

$

In Stock, Qty 8

0

6

Echo 90060500004

LOCKWASHER - 4

$0.99

$

In Stock, Qty 20+

0

7

Echo 17724304630

CATCHER, PAWL
(Superseded to Discontinued)

$

$

Not available

8

Echo 90021004006

SCREW - 4X6
(Superseded to 90022004006)

$0.99

$

In Stock, Qty 5

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 10

0

10

Echo 17721504630

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17721604630

BUSHING

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17724204630

PLATE, STARTER

$2.99

$

Usually ships in 2-4 days

0

13

Echo 17722003930

SPRING, REWIND

$21.99

$

In Stock, only 2 left!

0

14

Echo 17722104630

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 17722603930

ROPE, STARTER - 3.5X850

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

16

Echo 17722700230

GUIDE, ROPE
(Superseded to 17722705330)

$

$

Not available

17

Echo 17722802830

GRIP, STARTER
(Superseded to 17722812330)

$30.99

$

In Stock, Qty 12

0

18

Echo 17722902830

RING, RETAINING

$1.99

$

Usually ships in 2-4 days

0

19

Echo 17724402830

CAP

$0.99

$

Usually ships in 2-4 days

0

20

Echo 17720904630

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

21

------------------

UNKNOWN

$

$

Not available

22

Echo 90060000004

WASHER - 4

$0.99

$

In Stock, Qty 9

0

23

Echo 90021004020

SCREW - 4X20
(Superseded to 90022004020)

$0.99

$

Usually ships in 2-4 days

0

24

Echo 89005304630

NAME PLATE
(Superseded to Discontinued)

$

$

Not available

1

Echo 17723404630

SPRING, RETURN
(Superseded to 17723404631)

$1.49

$

In Stock, Qty 8

0

2

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 17724704630

SPACER

$2.49

$

In Stock, only 2 left!

0

4

Echo 17721704630

SCREW
(Superseded to 90021605014)

$0.99

$

In Stock, Qty 20+

0

31

Echo 17730504630

STARTER PAWL ASSY
(Superseded to Discontinued)

$

$

Not available
