SRM-202 FA - Echo String Trimmer Crankcase, Fan Housing Parts Diagram

String Trimmer

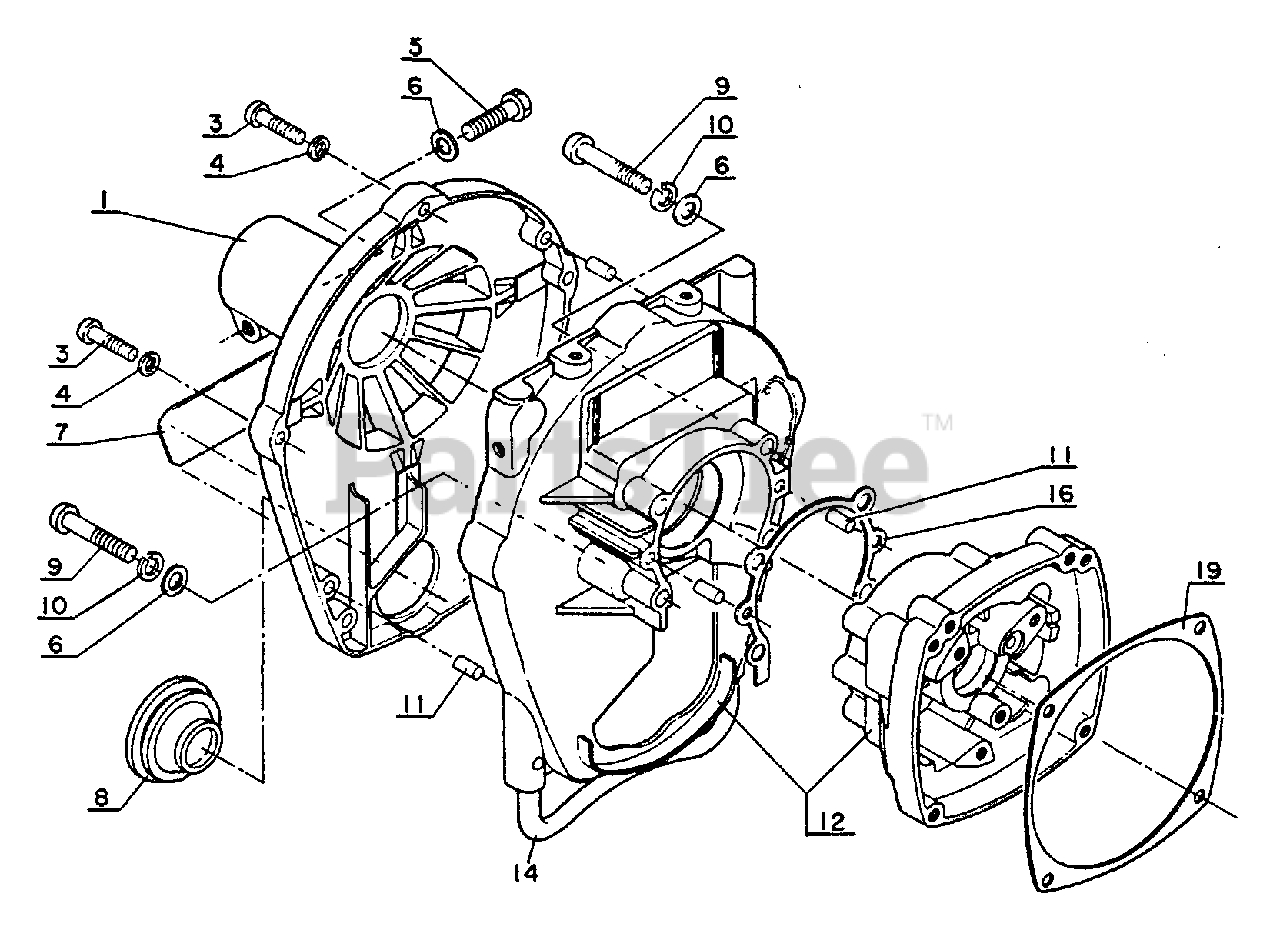

Crankcase, Fan Housing Parts Diagram

  • Title

1

Echo 10151104631

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

2

Echo 610239-04130

D-WASHER

$0.99

$

In Stock, Qty 20+

0

3

Echo 90022004018

SCREW 4×18

$0.99

$

Usually ships in 2-4 days

0

4

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

5

Echo 90010005020

BOLT - 5×20

$0.99

$

In Stock, Qty 8

0

6

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

7

Echo 89003405330

MODEL PLATE
(Superseded to Discontinued)

$

$

Not available

8

Echo 15901504630

COVER, SPARK PLUG

$1.99

$

Usually ships in 2-4 days

0

9

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

10

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

11

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

12

Echo 10020005330

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

14

Echo 30511004630

STAND
(Superseded to Discontinued)

$

$

Not available

16

Echo 10024204630

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

19

Echo 10061504630

GASKET, STARTER
(Superseded to 10061504631)

$1.49

$

Usually ships in 2-4 days

0
