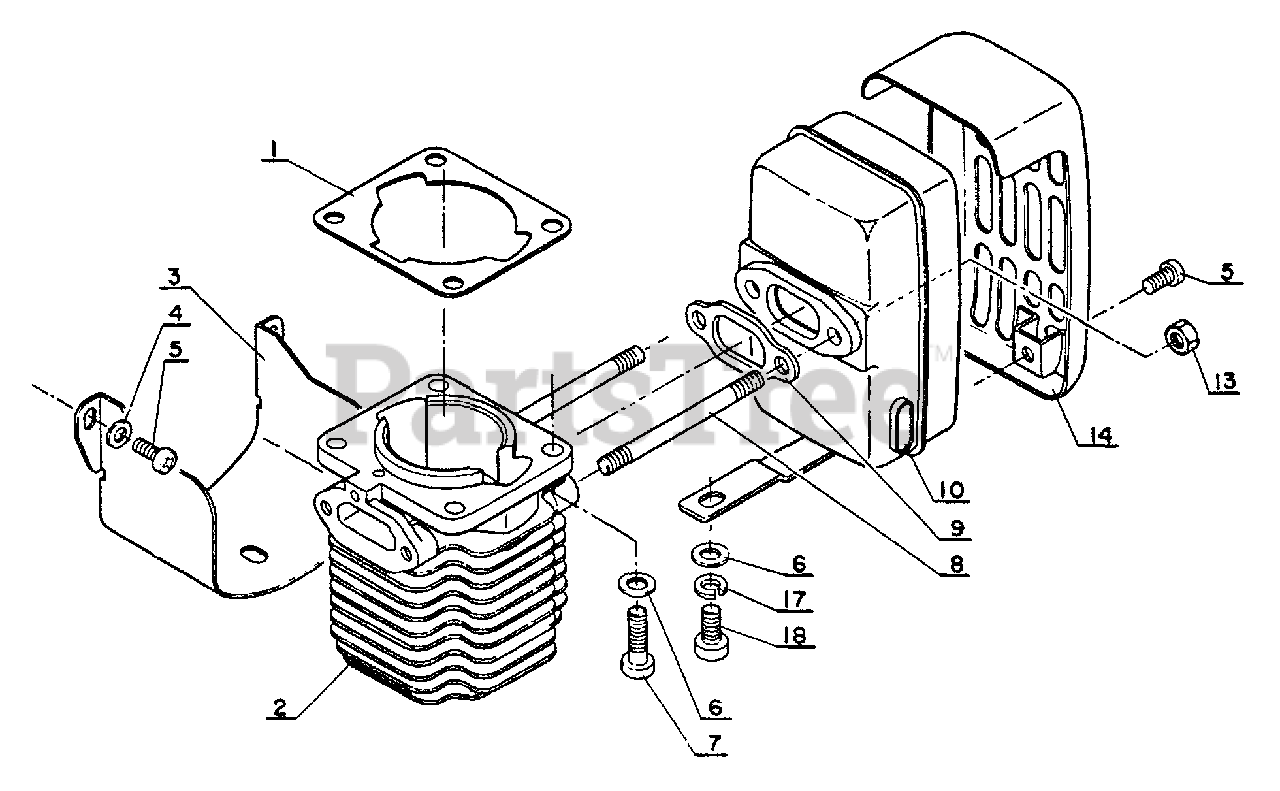

SRM-202 FA - Echo String Trimmer Cylinder Parts Diagram

String Trimmer

Cylinder Parts Diagram

  • Title

1

Echo 10101004630

GASKET, CYLINDER
(Superseded to 10101004631)

$2.49

$

Usually ships in 2-4 days

0

2

Echo 10101105330

CYLINDER
(Superseded to Discontinued)

$

$

Not available

3

Echo 10151405330

SHIELD, CYLINDER
(Superseded to Discontinued)

$

$

Not available

4

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

5

Echo 90021004008

SCREW - 4×8
(Superseded to 90022004008)

$0.99

$

In Stock, Qty 6

0

6

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

7

Echo 90022005016

SCREW 5×16

$0.99

$

In Stock, Qty 6

0

8

Echo 10101405330

STUD
(Superseded to 10101422330)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 14551004630

GASKET, MUFFLER

$2.99

$

Usually ships in 2-4 days

0

10

Echo 14561005330

MUFFLER
(Superseded to Discontinued)

$

$

Not available

13

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

14

Echo 14562105330

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

18

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

17

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0
