SRM-202 FA - Echo String Trimmer Ignition Parts Diagram

String Trimmer

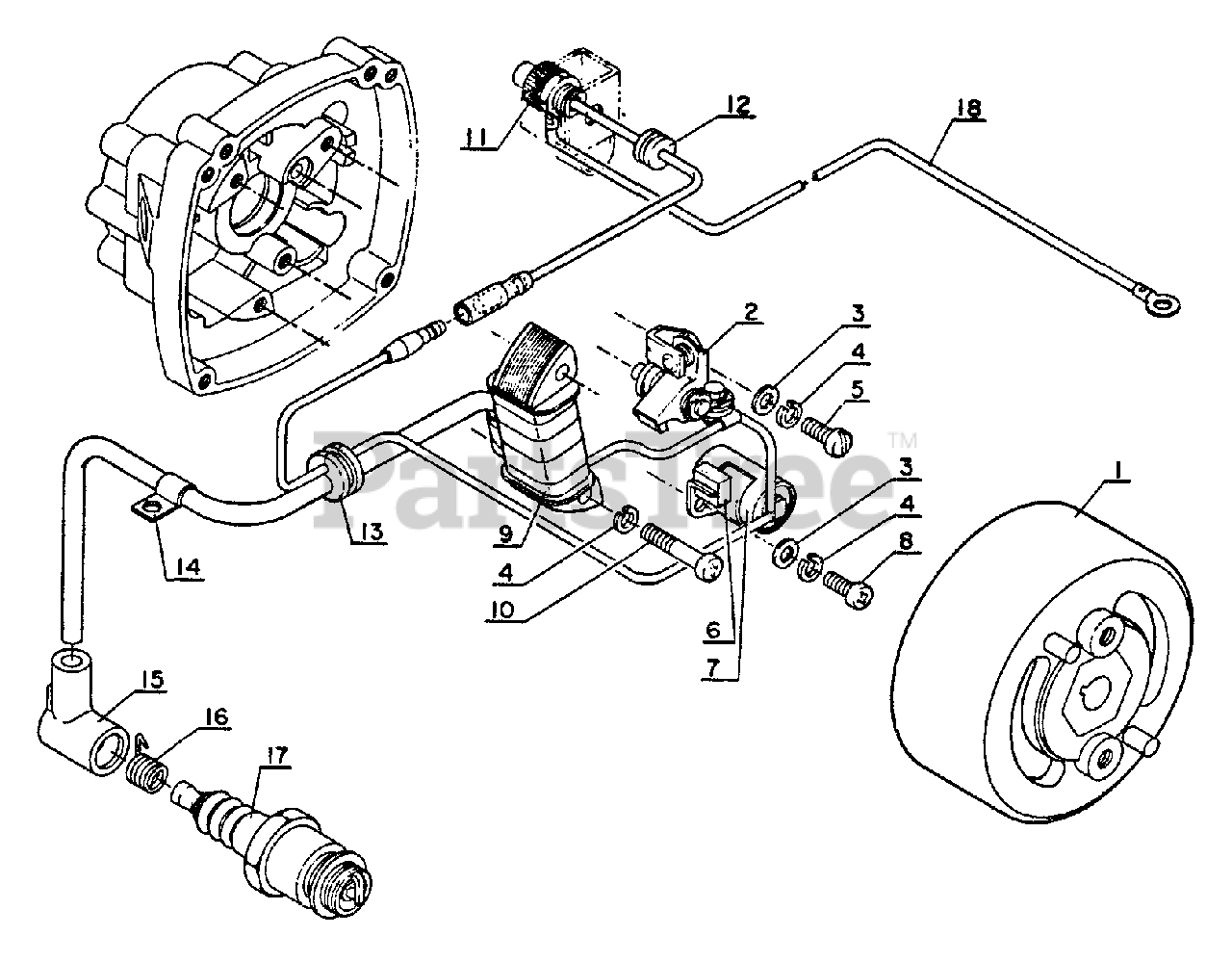

Ignition Parts Diagram

  • Title

1

Echo 15620004631

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

2

Echo 15610104630

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

3

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

4

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

5

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0

6

Echo 15613404630

PAD, OIL

$2.49

$

Usually ships in 2-4 days

0

7

Echo 15612704630

CONDENSER
(Superseded to Discontinued)

$

$

Not available

8

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0

9

Echo 15612604630

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

10

Echo 90022004025

SCREW 4×25

$0.99

$

Usually ships in 2-4 days

0

11

Echo 16610105330

BUTTON, STOP
(Superseded to Discontinued)

$

$

Not available

12

Echo 15111404630

GROMMET
(Superseded to Discontinued)

$

$

Not available

13

Echo 15111204630

GROMMET

$0.99

$

In Stock, Qty 6

0

14

Echo 15911004630

CLAMP
(Superseded to Discontinued)

$

$

Not available

15

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, only 2 left!

0

16

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

17

Echo 159010-00330

SPARK PLUG - BM6A
(Superseded to Discontinued)

$

$

Not available

18

Echo 16201005330

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available
