SRM-202 FA - Echo String Trimmer Starter Parts Diagram

String Trimmer

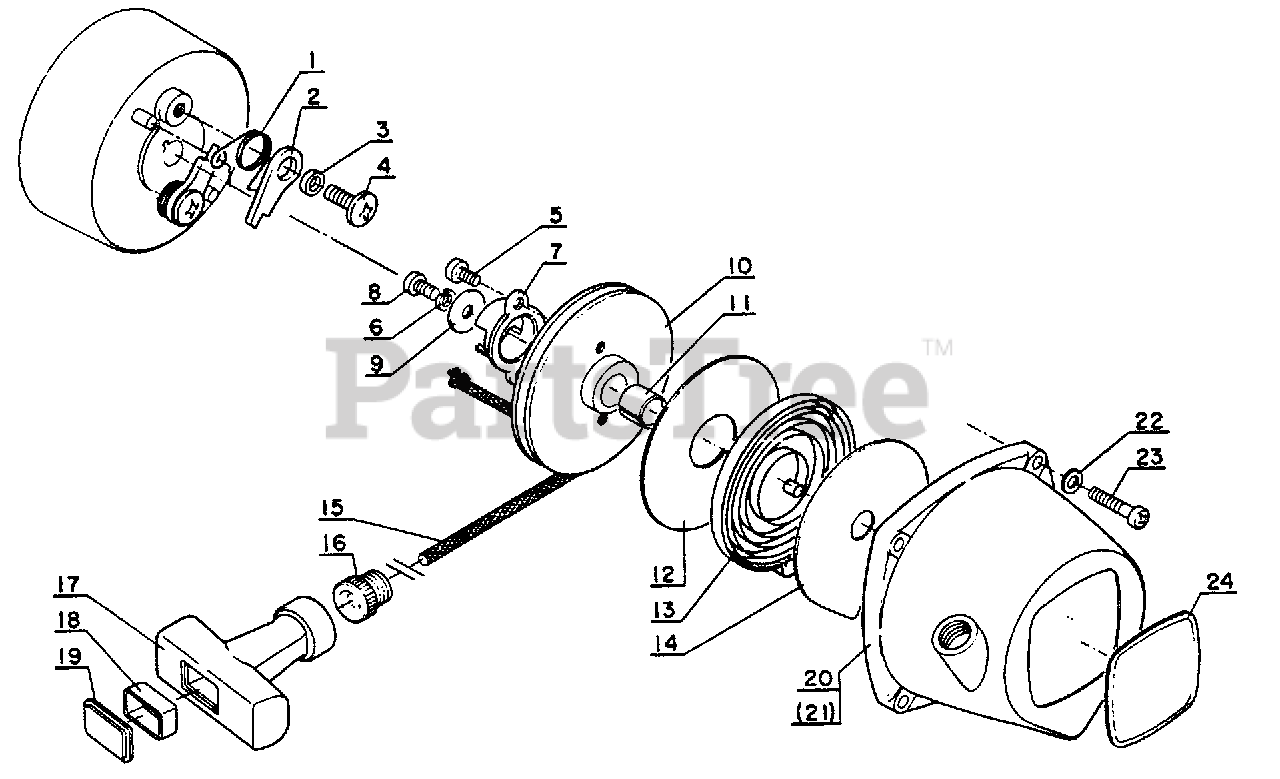

Starter Parts Diagram

  • Title

Echo 17720004630

STARTER ASSY
(Superseded to Discontinued)

$

$

Not available

5

Echo 90022004008

SCREW 4×8

$0.99

$

In Stock, Qty 6

0

6

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

7

Echo 17724304630

PAWL CATCHER
(Superseded to Discontinued)

$

$

Not available

8

Echo 900220-04006

SCREW 4×6

$0.99

$

In Stock, only 4 left!

0

9

Echo 17721404630

WASHER 4.1×15.5×1T

$0.99

$

In Stock, Qty 5

0

10

Echo 17721504630

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

11

Echo 17721604630

BUSHING

$1.99

$

Usually ships in 2-4 days

0

12

Echo 17724204630

PLATE, STARTER

$2.99

$

Usually ships in 2-4 days

0

13

Echo 177220-03930

SPRING, RECOIL

$21.99

$

In Stock, only 2 left!

0

14

Echo 17722104630

PLATE, STARTER
(Superseded to Discontinued)

$

$

Not available

15

Echo 177226-03930

ROPE, STARTER 3.5×850
(Superseded to 17722603930)

Note: RePower BULK OPTION: 99944445000

$6.99

$

In Stock, only 2 left!

0

16

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17722804630

GRIP, STARTER
(Superseded to 17722819830)

$5.49

$

In Stock, only 2 left!

0

18

Echo 17722902830

WASHER

$1.99

$

Usually ships in 2-4 days

0

19

Echo 17724402830

COVER, HANDLE

$0.99

$

Usually ships in 2-4 days

0

20

Echo 17720904630

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

21

UNKNOWN

$

$

Not available

1

Echo 17723404632

SPRING, RETURN

$1.49

$

In Stock, Qty 8

0

2

Echo 17721803930

PAWL, STARTER
(Superseded to Discontinued)

$

$

Not available

3

Echo 17724704630

SPACER 5.2×8×2.1

$2.49

$

In Stock, only 2 left!

0

4

Echo 17721704630

SCREW
(Superseded to 90021605014)

$0.99

$

In Stock, Qty 20+

0

22

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

23

Echo 90022004020

SCREW 4×20

$0.99

$

Usually ships in 2-4 days

0

24

Echo 89005306630

PLATE, NAME
(Superseded to Discontinued)

$

$

Not available
