SRM-210 AE - Echo String Trimmer Shield, Gear Case, Harness, Tools Parts Diagram

String Trimmer

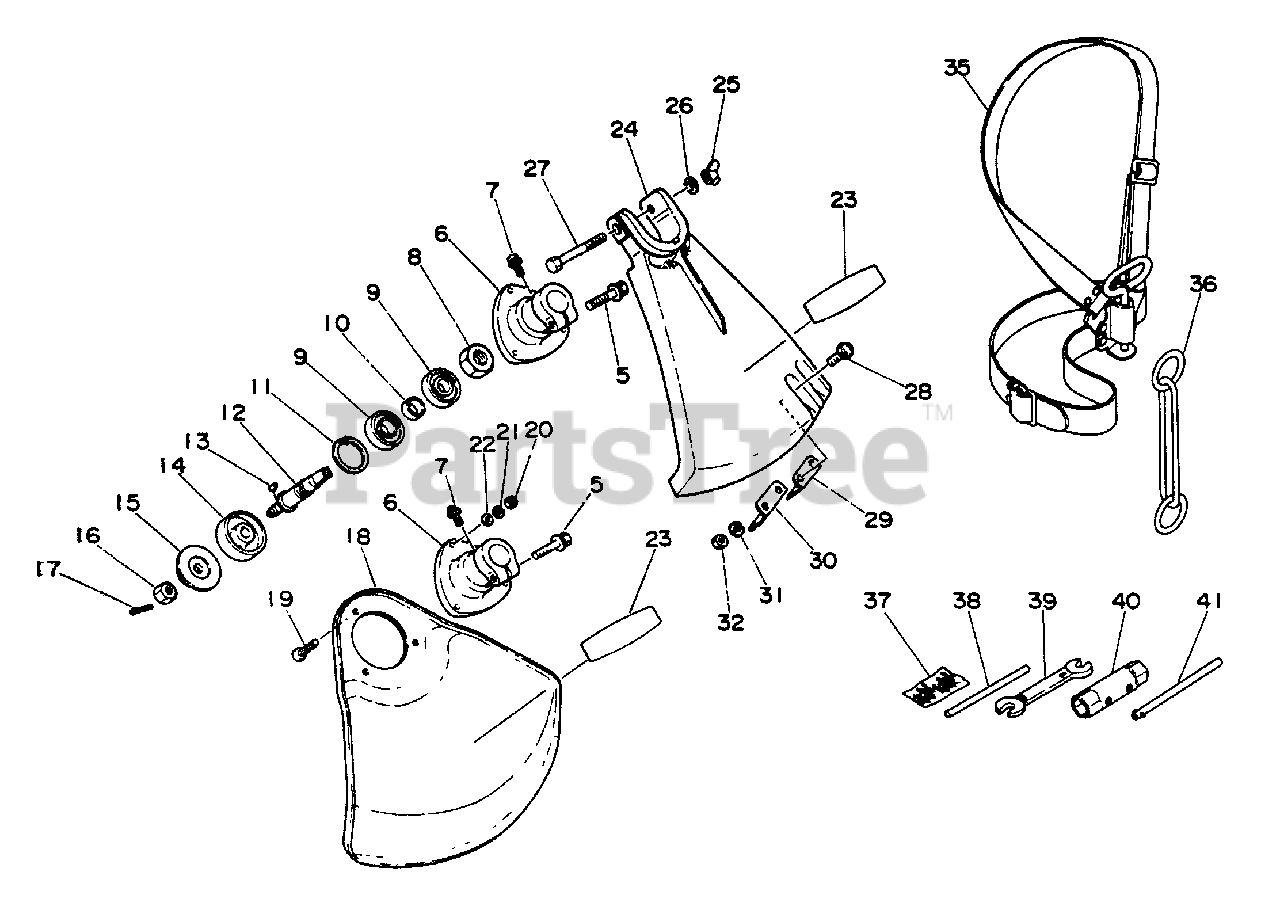

Shield, Gear Case, Harness, Tools Parts Diagram

  • Title

Echo 61040023330

GEAR CASE ASSY

Note: Consists of 5 thru 17

$168.99

$

Usually ships in 2-4 days

0

5

Echo 90015205025

BOLT - 5×25

$1.49

$

In Stock, Qty 9

0

6

Echo 61041023330

CASE, BEARING
(Superseded to Discontinued)

$

$

Not available

7

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

8

Echo 90051300012

NUT 12 L.H.

$2.99

$

Usually ships in 2-4 days

0

9

Echo 90080206001

BEARING, BALL 6001 DDU
(Superseded to 9404206001)

$11.99

$

In Stock, only 2 left!

0

10

Echo 61031506530

SPACER

$1.49

$

Usually ships in 2-4 days

0

11

Echo 90070200028

RING, SNAP 28

$1.99

$

In Stock, Qty 20+

0

12

Echo 61031023330

GEAR, SHAFT
(Superseded to Discontinued)

$

$

Not available

13

Echo 61032502730

KEY

$1.99

$

In Stock, only 2 left!

0

14

Echo 61031306530

PLATE, ADAPTER - UPPER

$18.99

$

Usually ships in 2-4 days

0

15

Echo 61031406030

PLATE, ADAPTER - LOWER
(Superseded to Discontinued)

$

$

Not available

16

Echo 61032023330

NUT

$2.49

$

Usually ships in 2-4 days

0

17

Echo 900300-20022

PIN, COTTER 2×22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 14

0

18

Echo 69900007330

SHIELD ASS'Y (STEEL)
(Superseded to Discontinued)

Note: Includes 19 thru 23

$

$

Not available

19

Echo 90022004018

SCREW 4×18

$0.99

$

Usually ships in 2-4 days

0

20

Echo 900500-00004

NUT M4

$0.99

$

In Stock, Qty 20+

0

21

Echo 900605-00004

WASHER, SPRING 4 MM

$0.99

$

In Stock, Qty 20+

0

22

Echo 90060000004

WASHER 4 MM

$0.99

$

In Stock, Qty 9

0

23

Echo 89013824030

LABEL - ECHO
(Superseded to 89013844330)

$0.99

$

In Stock, Qty 5

0

24

Echo 59900023330

SHIELD - PLASTIC

Note: Includes 25 thru 32

$

$

Currently unavailable

25

Echo 90052500006

NUT, WING 6

$1.99

$

In Stock, only 4 left!

0

26

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

27

Echo 90010006050

BOLT - 6×50

$0.99

$

In Stock, Qty 5

0

28

Echo 90024005014

SCREW 5×14

$0.99

$

Usually ships in 2-4 days

0

29

Echo 69901606320

KNIFE, TRIMMER LINE
(Superseded to Discontinued)

$

$

Not available

30

Echo 69921209630

GUARD

$3.49

$

Usually ships in 2-4 days

0

31

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

32

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

35

Echo 30100024330

SHOULDER STRAP ASSY
(Superseded to 30100050330)

Note: Includes 36

$98.99

$

Usually ships in 2-4 days

0

36

Echo 301305-24330

HOOK
(Superseded to 30130524330)

$12.99

$

Usually ships in 2-4 days

0

37

Echo 898502-01130

PIN, COTTER 2×22 (PKG. OF 10)

$1.99

$

In Stock, only 3 left!

0

38

Echo 89761801131

ROD, LOCKING

$

$

Currently unavailable

39

Echo 895112-00330

SPANNER 8×10

$0.99

$

In Stock, Qty 6

0

40

Echo 89541905330

WRENCH 17×19
(Superseded to Discontinued)

$

$

Not available

41

Echo 89541200230

ROD, HANDLE

$2.49

$

Usually ships in 2-4 days

0
