SRM-210 E - Echo String Trimmer Engine, Crankcase, Ignition Parts Diagram

String Trimmer

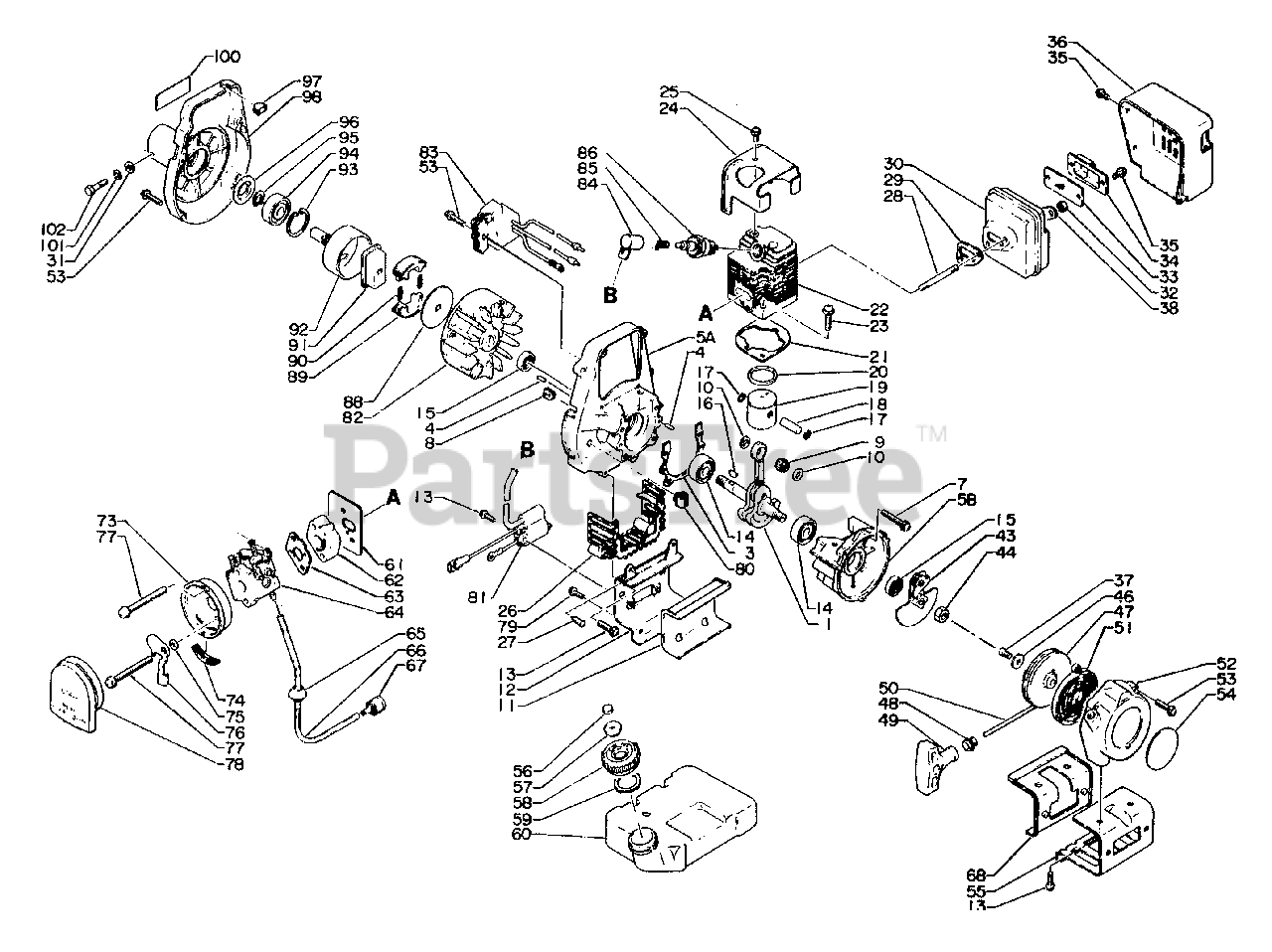

Engine, Crankcase, Ignition Parts Diagram

  • Title

1

Echo 10010007420

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

3

Echo 10024204920

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

5

Echo 10020007420

CRANKCASE KIT
(Superseded to Discontinued)

Note: Consists of 5A, 5B and 4

$

$

Not available

5A

Echo 10020007420

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 5, Crankcase Set, P/N 10020007420

$

$

Not available

5B

Echo 10020007420

CRANKCASE KIT
(Superseded to Discontinued)

Note: See Ref No. 5, Crankcase Set, P\N 10020007420

$

$

Not available

4

Echo V622000020

PIN, LOCATING 4

$0.99

$

In Stock, only 4 left!

0

7

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

8

Echo 15611402310

GROMMET

$0.99

$

Usually ships in 2-4 days

0

9

Echo 10011305930

BEARING, NEEDLE

$13.99

$

Usually ships in 2-4 days

0

10

Echo 10001406520

WASHER, THRUST

$3.99

$

Usually ships in 2-4 days

0

11

Echo 13192007320

CUSHION
(Superseded to Discontinued)

$

$

Not available

12

Echo 13191007420

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

13

Echo 900242-04014

SCREW 4×14

$0.99

$

In Stock, Qty 5

0

14

Echo 9403536201

BEARING, BALL - 6201 C3

$9.99

$

In Stock, only 3 left!

0

15

Echo 10021305530

SEAL, OIL 12

$7.99

$

In Stock, Qty 11

0

16

Echo 100142-00310

KEY

$1.99

$

Usually ships in 2-4 days

0

17

Echo 100015-04630

RING, SNAP
(Superseded to 10001504630)

$0.99

$

In Stock, Qty 20+

0

18

Echo 10001310210

PIN, PISTON

$7.99

$

Usually ships in 2-4 days

0

19

Echo 10001006520

PISTON
(Superseded to 10001006521)

$

$

Not available

20

Echo 100011-05330

RING, PISTON
(Superseded to 10001105330)

$10.99

$

In Stock, Qty 8

0

21

Echo 10101004920

GASKET, CYLINDER
(Superseded to 10101004921)

$

$

Not available

22

Echo 10101106520

CYLINDER
(Superseded to 10101109320)

$

$

Not available

23

Echo 90024206020

SCREW 6×20

$0.99

$

In Stock, Qty 6

0

24

Echo 10151406520

COVER, CYLINDER

$12.99

$

Usually ships in 2-4 days

0

25

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

26

Echo 10061606320

SEAL, DUST
(Superseded to Discontinued)

$

$

Not available

27

Echo 90024504014

SCREW 4×14

$0.99

$

Usually ships in 2-4 days

0

28

Echo 10101400560

BOLT, STUD

$2.99

$

Usually ships in 2-4 days

0

29

Echo 14551021930

GASKET, EXHAUST
(Superseded to 14551021931)

$2.99

$

Usually ships in 2-4 days

0

30

Echo 14580606520

MUFFLER
(Superseded to Discontinued)

$

$

Not available

31

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

32

Echo 433020-00830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 14

0

33

Echo 14586206520

SCREEN, SPARK ARRESTER

$2.49

$

Usually ships in 2-4 days

0

34

Echo 14580906520

SCREEN HOLDER
(Superseded to 14580928430)

$

$

Not available

35

Echo 900242-04010

SCREW 4×10

$0.99

$

In Stock, Qty 20+

0

36

Echo 14562106520

COVER, MUFFLER
(Superseded to Discontinued)

$

$

Not available

38

Echo 14564223330

WASHER
(Superseded to Discontinued)

$

$

Not available

43

Echo 17730504920

PAWL ASSY, STARTER
(Superseded to Discontinued)

$

$

Not available

44

Echo 90050200008

NUT 8×1.25

$0.99

$

In Stock, Qty 7

0

Echo 17720007420

STARTER ASSY
(Superseded to 17720007421)

Note: Consists of 37 and 46 thru 52

$

$

Not available

37

Echo 90024104010

SCREW - 4×10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 20+

0

46

Echo 17721420430

WASHER
(Superseded to Discontinued)

$

$

Not available

47

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

48

Echo 17722606530

ROPE, STARTER 3.0×850

Note: RePower BULK OPTION: 99944445000

$7.49

$

In Stock, only 3 left!

0

49

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

50

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

51

Echo 17722006530

SPRING, RECOIL

$16.99

$

In Stock, only 2 left!

0

52

Echo 17720907420

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

53

Echo 900242-04020

SCREW 4×20

$0.99

$

In Stock, Qty 16

0

54

Echo 89011206031

LABEL - ECHO
(Superseded to 89011844330)

$0.99

$

In Stock, Qty 5

0

55

Echo 13191807320

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

Note: Consists of 56 thru 59

$

$

Not available

56

Echo 13131505020

FILTER, CHECK VALVE

$0.99

$

In Stock, Qty 8

0

57

Echo 13131406320

VENT ASSY

$6.49

$

In Stock, Qty 9

0

58

Echo 13101707430

CAP
(Superseded to 13100406320)

$

$

Not available

59

Echo 13101604920

PACKING

$2.99

$

Usually ships in 2-4 days

0

60

Echo 13101007320

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

61

Echo 13001021630

GASKET, INTAKE
(Superseded to 13001021631)

$

$

Not available

62

Echo 13001701260

INSULATOR, INTAKE
(Superseded to Discontinued)

$

$

Not available

63

Echo 13001604921

GASKET, INTAKE
(Superseded to 13001604922)

$

$

Not available

64

Echo 12300006520

CARBURETOR - WA-81
(Superseded to 12300001262)

$134.99

$

In Stock, Qty 5

0

65

Echo 13211504920

GROMMET

$1.99

$

In Stock, Qty 20+

0

66

Echo 13201004920

PIPE, FUEL 3×5×150 BLACK
(Superseded to 13201004921)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 5

0

67

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

68

Echo 13192407320

CUSHION
(Superseded to Discontinued)

$

$

Not available

73

Echo 13030101260

CASE, AIR FILTER
(Superseded to Discontinued)

Note: Includes items 74

$

$

Not available

74

Echo 17881004920

GROMMET

$1.99

$

Usually ships in 2-4 days

0

75

Echo 178516-00830

WASHER 5.2×8×0.8T

$0.99

$

In Stock, Qty 20+

0

76

Echo 17851504920

SHUTTER, CHOKE

$3.49

$

Usually ships in 2-4 days

0

77

Echo 900242-05057

SCREW 5×57

$0.99

$

In Stock, only 3 left!

0

78

Echo 13031004922

FILTER, AIR
(Superseded to 13031003060)

$11.99

$

Usually ships in 2-4 days

0

79

Echo 90024204012

SCREW 4×12

$0.99

$

In Stock, Qty 20+

0

80

Echo 15911007420

CLAMP
(Superseded to Discontinued)

$

$

Not available

81

Echo 15662607420

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

82

Echo 15680007420

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

83

Echo 15660107421

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

84

Echo 15901203433

CAP, SPARK PLUG

$8.49

$

In Stock, Qty 19

0

85

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

86

Echo 15902603930

SPARK PLUG - CJ8
(Superseded to CJ8)

$3.99

$

In Stock, Qty 20+

0

88

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

89

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$25.99

$

In Stock, only 2 left!

0

90

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

91

Echo 17501604920

BOSS, CLUTCH

$14.99

$

In Stock, only 1 left!

0

92

Echo 17501004920

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

93

Echo 90070200032

RING, SNAP Ø32

$2.49

$

In Stock, only 2 left!

0

94

Echo 90081936201

BEARING, BALL 6201
(Superseded to 90081906201)

$14.99

$

In Stock, only 3 left!

0

95

Echo 90070100012

RING, RETAINING - 12

$0.99

$

In Stock, Qty 20+

0

96

Echo 175053-04920

STOPPER, PIPE
(Superseded to Discontinued)

$

$

Not available

97

Echo 10153807420

PLUG
(Superseded to Discontinued)

$

$

Not available

98

Echo 10151109730

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

100

Echo 89011523330

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

101

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

102

Echo 900151-05025

BOLT 5×25

$0.99

$

Usually ships in 2-4 days

0
