SRM-210 i - Echo String Trimmer (SN: S72912001001 - S72912999999) Fuel System Parts Diagram

String Trimmer

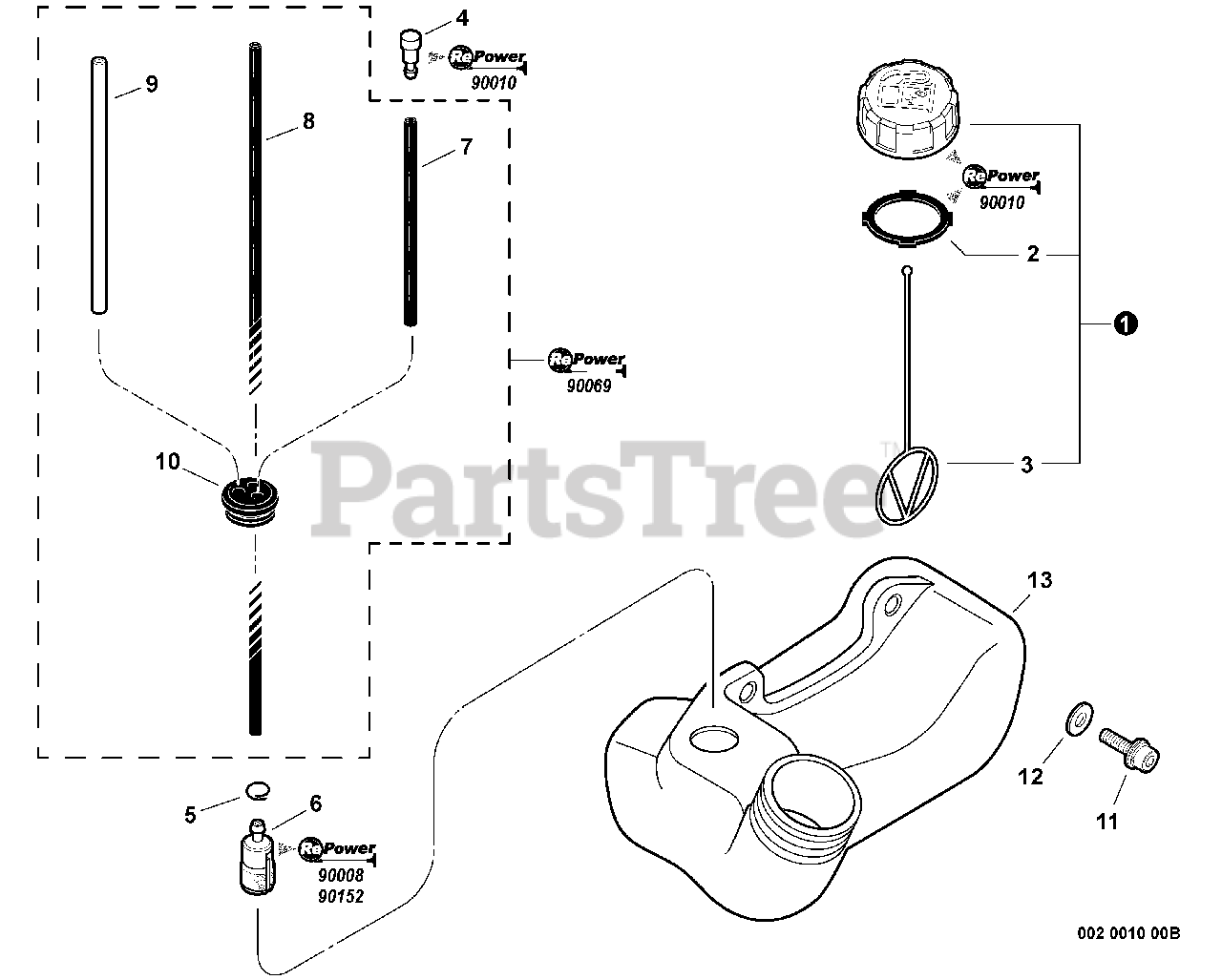

Fuel System Parts Diagram

  • Title

1

Echo 13100455530

CAP ASSY, FUEL
(Superseded to P100006640)

Note: Includes ITEMS 2-3

$7.49

$

In Stock, Qty 9

0

2

Echo 131016-55830

GASKET, FUEL CAP

$

$

Not available

3

Echo 13105156030

CONNECTOR, CAP L= 100 MM

$1.49

$

In Stock, Qty 6

0

4

Echo A356000031

VENT ASSY

$9.49

$

In Stock, Qty 20+

0

5

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 8

0

6

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

7

Echo V471001200

PIPE, FUEL 3x-5x-70 BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

8

Echo V471001190

PIPE, FUEL 3x-5x-180
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

9

Echo 13201256030

PIPE, FUEL 3×6×80 CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 20+

0

10

Echo V137000030

GROMMET, FUEL
(Superseded to 13211546730)

$2.49

$

In Stock, Qty 20+

0

11

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

12

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo A350000690

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

14

Echo 90008

FILTER KIT - REPOWER
(Superseded to 90152)

$21.99

$

In Stock, Qty 20+

0

15

Echo 90010

CAP/VENT KIT - REPOWER
(Superseded to 90248)

$

$

Not available

18

Echo 90069

FUEL SYSTEM KIT
(Superseded to 90069Y)

$5.49

$

In Stock, Qty 9

0

19

Echo 90152

TUNE-UP KIT - REPOWER
(Superseded to 90152Y)

$21.99

$

In Stock, Qty 20+

0

16

Echo 90014

BULK PIPE - 3×5 MM BLACK (4 PIECES×2 M)

Note: BLACK

$50.99

$

In Stock, only 2 left!

0

17

Echo 90017

BULK PIPE - 3×6 MM CLEAR (4 PIECES×2 M)

Note: CLEAR

$69.99

$

In Stock, only 2 left!

0
