SRM-210 SB - Echo String Trimmer (SN: 05001001 - 05999999) Engine, Short Block - SB1065 Parts Diagram

String Trimmer

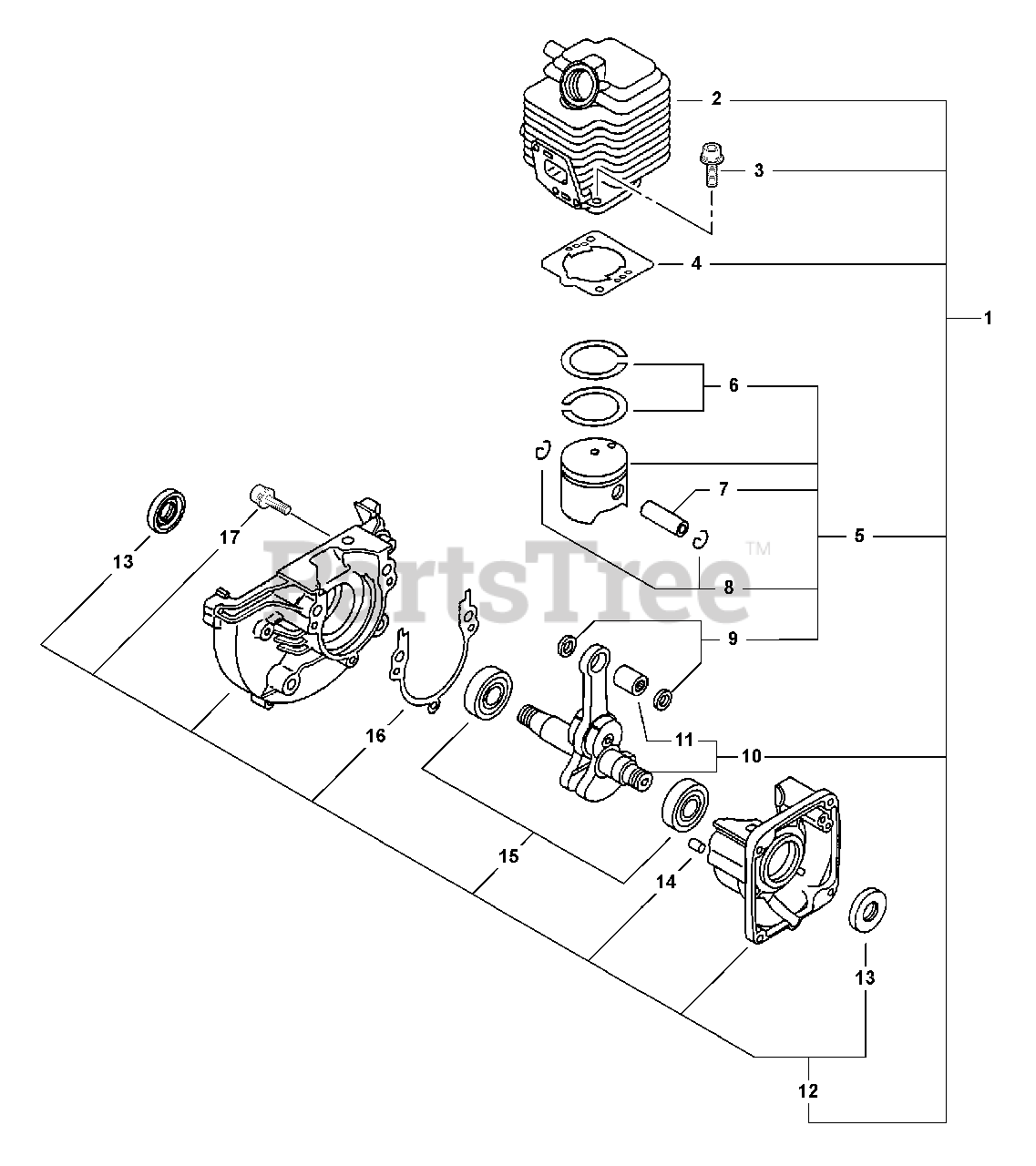

Engine, Short Block - SB1065 Parts Diagram

  • Title

1

Echo SB1065

Short Block
(Superseded to Discontinued)

Note: Includes item 2-17

$

$

Not available

2

Echo A130000430

Cylinder

$133.99

$

Usually ships in 2-4 days

0

3

Echo 90016205022

Screw 5x22

$0.99

$

In Stock, Qty 20+

0

4

Echo V100000080

Gasket, Cylinder

$6.49

$

In Stock, only 1 left!

0

5

Echo P021001101

Piston Kit
(Superseded to P021001102)

Note: Includes items 6-9

$86.99

$

In Stock, only 3 left!

0

6

Echo A101000000

Ring, Piston

$9.49

$

In Stock, Qty 20+

0

7

Echo 10001311520

Pin, Piston

$7.99

$

Usually ships in 2-4 days

0

8

Echo 10001504630

Circlip, Piston Pin

$0.99

$

In Stock, Qty 20+

0

9

Echo 10001411520

Spacer, Piston Pin

$3.99

$

In Stock, Qty 9

0

10

Echo A011000101

Crankshaft Asy
(Superseded to A011001410)

Note: Includes item 11

$172.99

$

Usually ships in 2-4 days

0

11

Echo V553000010

Bearing, Needle

$11.99

$

In Stock, only 2 left!

0

12

Echo 10020452131

Crankcase Kit
(Superseded to 10020452132)

Note: Includes items 13-17

$156.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

Oil Seal

$7.49

$

In Stock, Qty 15

0

14

Echo V622000020

Dowel Pin

$0.99

$

In Stock, Qty 7

0

15

Echo 9403536201

Bearing, Ball - 6201

$8.99

$

In Stock, Qty 19

0

16

Echo 10024242030

Gasket, Crankcase

$1.49

$

In Stock, Qty 20+

0

17

Echo 90016205028

Screw 5x28

$2.49

$

In Stock, Qty 11

0
