SRM-210 SB - Echo String Trimmer (SN: 05001001 - 05999999) Intake Parts Diagram

String Trimmer

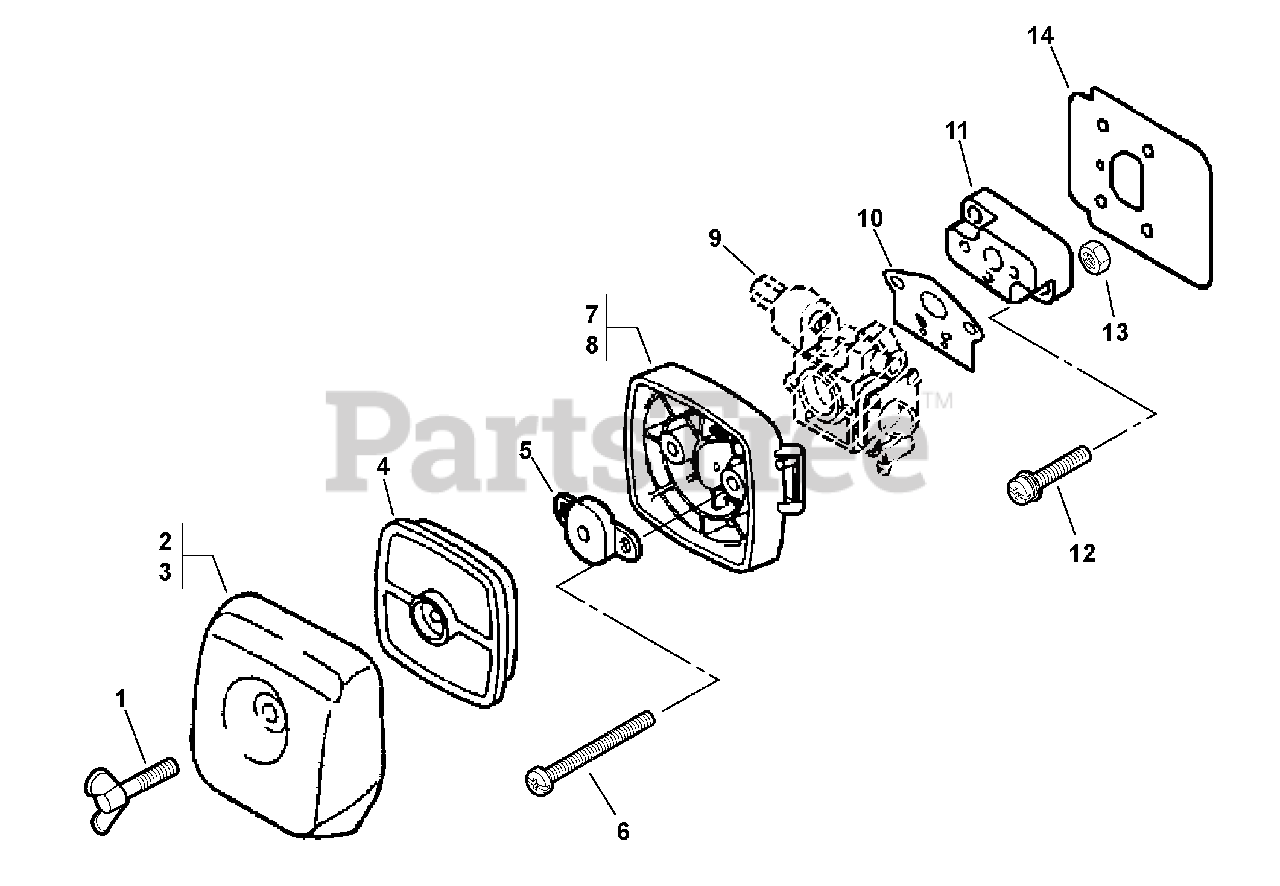

Intake Parts Diagram

  • Title

1

Echo 21041752730

BOLT, WING 5×20

$1.99

$

In Stock, Qty 14

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$7.99

$

In Stock, Qty 20+

0

3

Echo 13031305863

COVER, AIR FILTER - BLACK

$7.99

$

In Stock, Qty 20+

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

Note: Also Included In Repower Tune-Up Kit

$8.99

$

In Stock, Qty 20+

0

5

Echo 12901152730

PLATE, PREVENT

$4.49

$

In Stock, Qty 5

0

6

Echo 90022005065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

7

Echo P021000991

CASE, AIR FILTER - GRAY

$10.99

$

In Stock, Qty 6

0

8

Echo P021004480

CASE, AIR FILTER - BLACK
(Superseded to P021049750)

$11.99

$

In Stock, only 2 left!

0

9

CARBURETOR

Note: See Carburetor Diagram For Additional Information

$

$

Not available

10

Echo 13001013410

GASKET, CARBURETOR

Note: Also Included In Gasket Kit

$1.99

$

In Stock, Qty 20+

0

11

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.99

$

In Stock, only 4 left!

0

12

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 130010-42032

HEAT SHIELD, INTAKE

Note: Also Included In Gasket Kit

$2.99

$

In Stock, Qty 10

0
