SRM-2100 - Echo String Trimmer (Type 1) (SN: 001001 - 159490) Clutch, Ignition, Starter, Intake, Exhaust Parts Diagram

String Trimmer (Type 1)

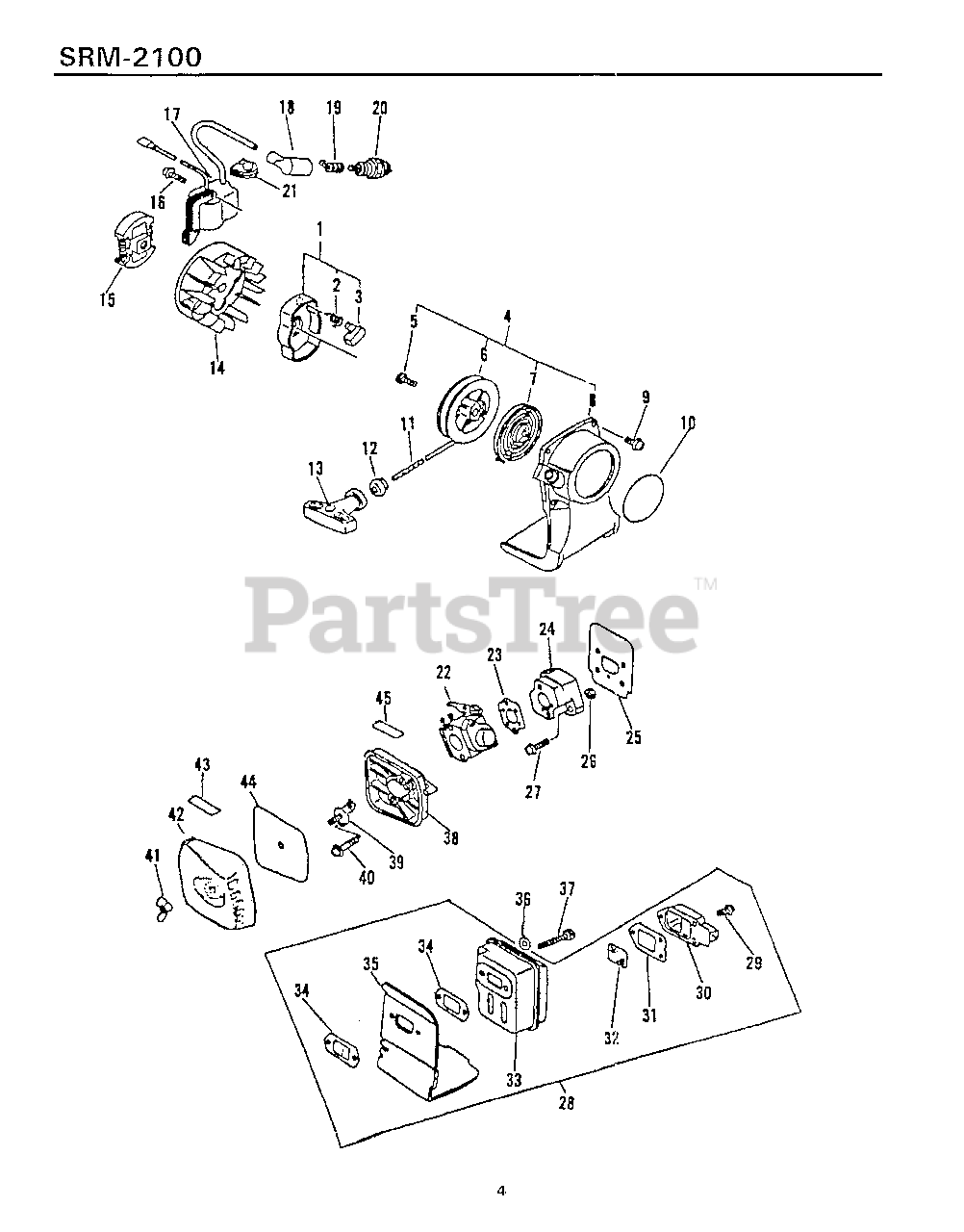

Clutch, Ignition, Starter, Intake, Exhaust Parts Diagram

  • Title

1

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes Items 2-3

$11.99

$

In Stock, Qty 9

0

2

Echo 177234-42030

SPRING, RETURN
(Superseded to 17723412220)

$4.99

$

In Stock, Qty 13

0

3

Echo 177218-44330

PAWL, STARTER - BLACK

$4.49

$

In Stock, Qty 20+

0

4

Echo 17720044333

STARTER ASSY
(Superseded to 17720044334)

Note: Includes Items 5-8, 11-13

$53.99

$

In Stock, only 3 left!

0

5

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

6

Echo 17721542030

REEL, ROPE
(Superseded to 17721544430)

$10.99

$

In Stock, Qty 6

0

7

Echo 17723242030

SPRING, RETURN
(Superseded to 17723242031)

$24.99

$

In Stock, only 2 left!

0

8

Echo 17723244333

CASE, RECOIL STARTER

$48.99

$

In Stock, only 1 left!

0

9

Echo 90016204016

BOLT 4×16
(Superseded to 90016304016)

$1.99

$

In Stock, Qty 18

0

10

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

11

Echo 17722605530

ROPE, STARTER

Note: Use Bulk Rope 99944400040

$4.99

$

In Stock, Qty 5

0

12

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

13

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

14

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$126.99

$

Usually ships in 2-4 days

0

15

Echo 17500042031

CLUTCH ASSY
(Superseded to 17500056830)

$32.99

$

In Stock, only 1 left!

0

16

Echo 90016204022

SCREW 4×22

$0.99

$

In Stock, Qty 20+

0

17

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

18

Echo 159012-01620

CAP, SPARK PLUG

$1.99

$

In Stock, Qty 10

0

19

Echo 159011-03432

TERMINAL, SPARK PLUG
(Superseded to 15901103432)

$1.99

$

In Stock, Qty 20+

0

20

Echo 15901010630

SPARK PLUG - BPM7A
(Superseded to 15901010230)

$3.99

$

In Stock, Qty 20+

0

21

Echo 15611240630

GROMMET

$1.99

$

In Stock, Qty 20+

0

22

Echo 12520050630

CARBURETOR - C1U-K16
(Superseded to 12520050631)

$

$

Not available

23

Echo 130016-42031

GASKET, INTAKE

Note: Use Kit 88900042031

$1.49

$

In Stock, Qty 20+

0

24

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

25

Echo 130010-42032

HEAT SHIELD, INTAKE

Note: Use Kit 88900042031

$2.99

$

In Stock, Qty 10

0

26

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

27

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 8

0

28

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes Items 29-35

$55.99

$

In Stock, only 1 left!

0

29

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, Qty 6

0

30

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

31

Echo 145866-42031

GASKET, EXHAUST

Note: Use Kit 88900042031

$2.99

$

In Stock, only 2 left!

0

32

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 20+

0

33

MUFFLER

$

$

Not available

34

Echo 14551042031

GASKET, EXHAUST
(Superseded to V104000160)

Note: Use Kit 88900042031

$2.49

$

In Stock, Qty 20+

0

35

Echo 14587144331

COVER, EXHAUST
(Superseded to 14587152130)

$5.99

$

In Stock, only 2 left!

0

36

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

37

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0

38

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

$14.99

$

In Stock, Qty 9

0

39

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

40

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

41

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

42

Echo 13031306561

COVER, AIR FILTER
(Superseded to 13030206561)

$9.49

$

In Stock, only 2 left!

0

43

Echo 89018706960

LABEL - TOP

$3.99

$

Usually ships in 2-4 days

0

44

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

45

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

Echo 99944400040

BULK ROPE - 3×1000
(Superseded to 99944440000)

$35.99

$

In Stock, only 2 left!

0

Echo 88900042031

GASKET KIT
(Superseded to 88900042032)

Note: See Maintenance Kits

$19.99

$

In Stock, only 2 left!

0
