SRM-2100 - Echo String Trimmer (Type 1) (SN: 001001 - 159490) Debris Shield, Tools Parts Diagram

String Trimmer (Type 1)

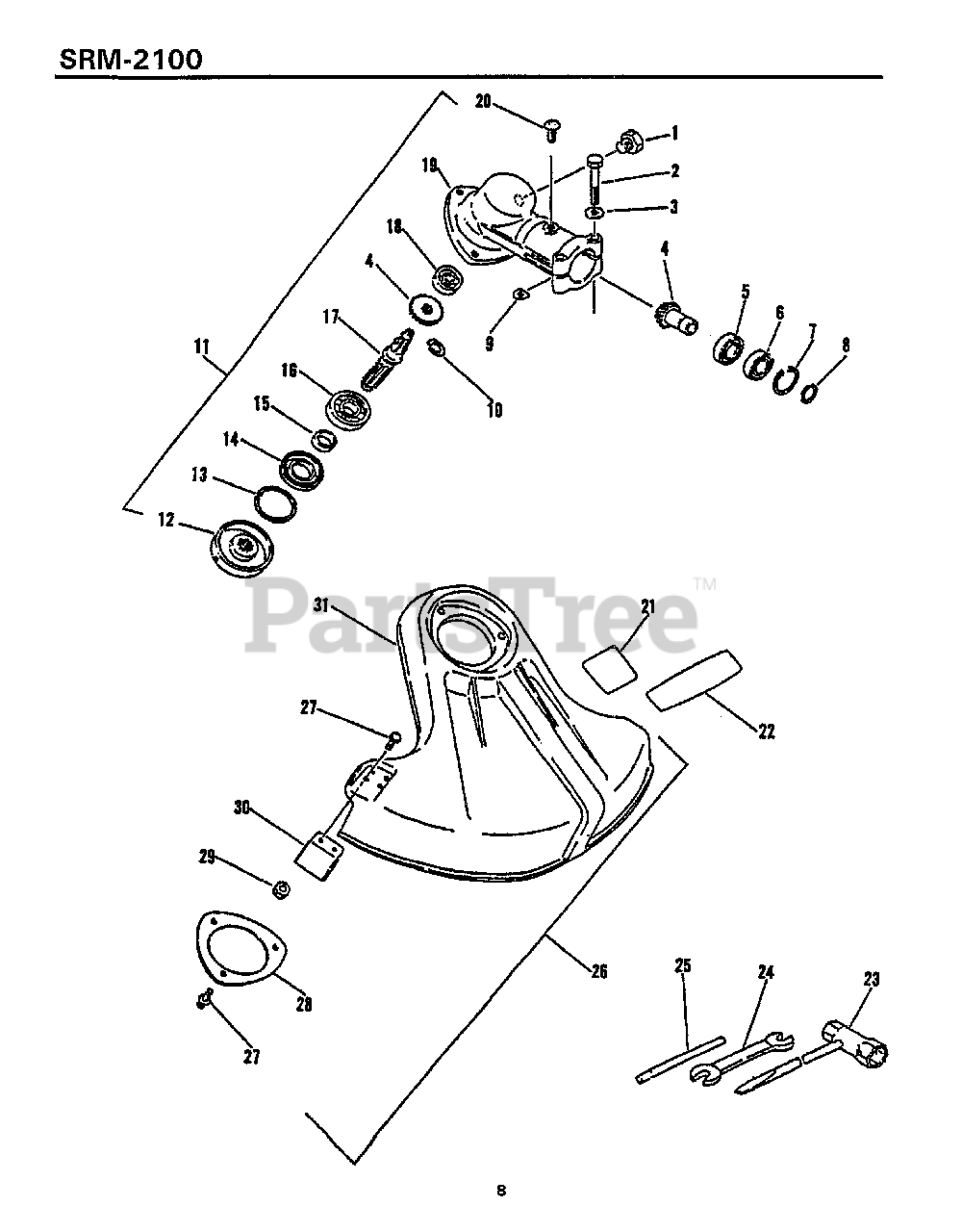

Debris Shield, Tools Parts Diagram

  • Title

1

Echo 90010008008

Bolt 8x8

$0.99

$

In Stock, Qty 10

0

2

Echo 90010005035

Bolt 5x35

$0.99

$

In Stock, Qty 9

0

3

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 61030044830

Gear Set, Bevel

$106.99

$

Usually ships in 2-4 days

0

5

Echo 90085506900

Bearing, Ball 6900

$21.99

$

In Stock, only 2 left!

0

6

Echo 90085806900

Bearing, Ball 6900

$27.99

$

In Stock, only 2 left!

0

7

Echo 90070200022

Circlip 22

$2.49

$

In Stock, Qty 14

0

8

Echo 90070600012

Circlip 12

$1.49

$

In Stock, Qty 20+

0

9

Echo 61023904130

Washer, Shim

$0.99

$

In Stock, Qty 20+

0

10

Echo 90070600010

Circlip 10

$1.49

$

In Stock, Qty 20+

0

11

Echo 61040247731

Housing Asy, Gear
(Superseded to 61040247732)

Note: Includes Items 1-10, 12-20

$98.99

$

Usually ships in 2-4 days

0

12

Echo 61031347731

Plate, Adapter (U)

$14.99

$

In Stock, only 1 left!

0

13

Echo 90070200032

Circlip 32

$2.49

$

In Stock, only 1 left!

0

14

Echo 61041307130

Oilseal

$6.99

$

In Stock, only 1 left!

0

15

Echo 61031507130

Spacer

$4.49

$

In Stock, only 1 left!

0

16

Echo 90081006201

Bearing, Ball 6201

$8.49

$

In Stock, only 2 left!

0

17

Echo 61036008931

Shaft, P.T.O.
(Superseded to C534000270)

$80.99

$

In Stock, Qty 5

0

18

Echo 90080000609

Bearing, Ball 609

$11.99

$

In Stock, Qty 5

0

19

Echo 61046027430

Housing, Gear
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

20

Echo 90024205010

Screw 5x10

$0.99

$

In Stock, Qty 20+

0

21

Echo 89016844830

Lable, Caution

$3.99

$

Usually ships in 2-4 days

0

22

Echo 89011848830

Lable, Echo
(Superseded to X502000320)

$0.99

$

In Stock, Qty 6

0

23

Echo 89541008030

Wrench, W/Screwdriver
(Superseded to X602000020)

$4.49

$

In Stock, Qty 7

0

24

Echo 89511200330

Spanner 8x10

$0.99

$

In Stock, Qty 6

0

25

Echo 89751801131

Locking Tool

$

$

Not available

26

Echo 69900440931

Shield Asy

Note: Includes Items 27-31

$30.99

$

In Stock, only 3 left!

0

27

Echo 90024205016

Screw 5x16

$0.99

$

In Stock, Qty 13

0

28

Echo 69901840830

Bracket, Shield
(Superseded to C552000110)

$2.99

$

In Stock, only 3 left!

0

29

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

30

Echo 69901644330

Knife, Cord
(Superseded to C554000080)

$4.49

$

In Stock, Qty 20+

0

31

Echo 69901027231

Shield, Blade

$9.49

$

Usually ships in 2-4 days

0
