SRM-2100 - Echo String Trimmer (Type 1) (SN: 001001 - 159490) Fuel System, Main Pipe, Support Handle, Throttle Control Parts Diagram

String Trimmer (Type 1)

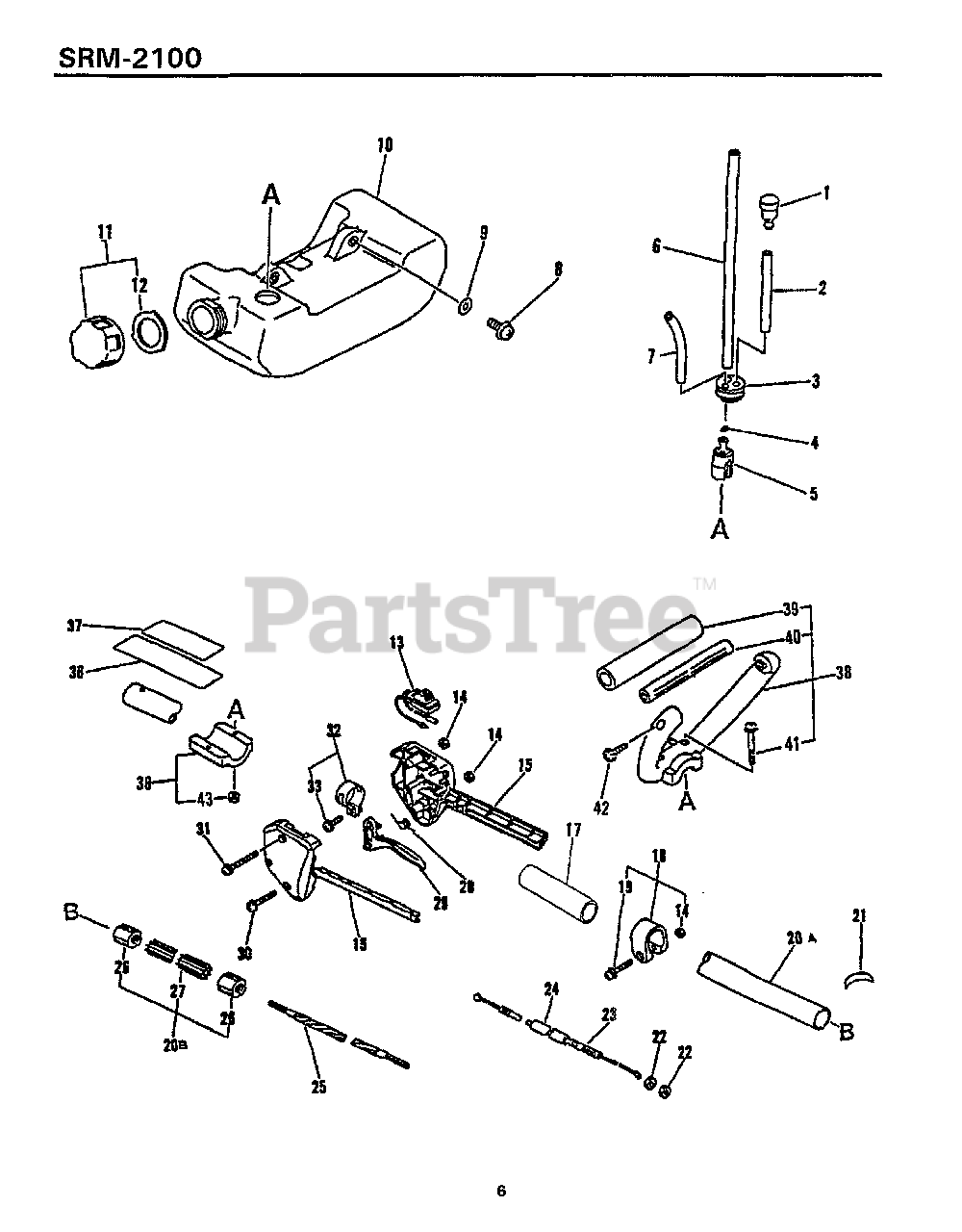

Fuel System, Main Pipe, Support Handle, Throttle Control Parts Diagram

  • Title

1

Echo 13130040630

VENT ASSY
(Superseded to 13130056430)

$8.99

$

In Stock, Qty 7

0

2

Echo 13131244330

PIPE K43B3×5×70
(Superseded to 13131239130)

$2.49

$

In Stock, Qty 20+

0

3

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

4

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

5

Echo 13120514930

FILTER, FUEL
(Superseded to 13120514931)

$9.99

$

In Stock, Qty 20+

0

6

Echo 13201013930

PIPE, FUEL
(Superseded to V471001190)

$1.49

$

In Stock, Qty 20+

0

7

Echo 13201251030

PIPE 3×5×90
(Superseded to 13201056330)

$3.49

$

In Stock, Qty 9

0

8

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

9

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

10

Echo 13100544330

TANK, FUEL
(Superseded to 13100544331)

$21.99

$

In Stock, Qty 6

0

11

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes Item 12

$5.49

$

In Stock, only 2 left!

0

12

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0

13

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

14

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

15

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes Items 14, 30-31

$5.99

$

In Stock, only 3 left!

0

17

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

18

Echo 61027252130

CLAMP KIT

Note: Includes Items 14, 19

$11.99

$

In Stock, only 2 left!

0

19

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

20

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: Includes Items 21, 26, 27, 36, 37

$55.99

$

Usually ships in 2-4 days

0

21

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

22

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

23

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

24

Echo 17812750330

PIPE

$1.49

$

In Stock, Qty 7

0

25

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, only 3 left!

0

26

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

27

Echo 61021744730

LINER - FLEXIBLE
(Superseded to C507000260)

$

$

Not available

28

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

29

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

30

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

31

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

32

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes Item 33

$11.99

$

In Stock, only 2 left!

0

33

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

36

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$7.49

$

Usually ships in 2-4 days

0

37

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.99

$

Usually ships in 2-4 days

0

38

Echo 35120152130

LOOP HANDLE ASSY

Note: Includes Items 39-43

$78.99

$

Usually ships in 2-4 days

0

39

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

40

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

41

Echo 90024206035

SCREW 6×25

$1.49

$

Usually ships in 2-4 days

0

42

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

43

Echo 900500-00006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0
