SRM-2100 - Echo String Trimmer (Type 1) (SN: 001001 - 159490) U-Handle / Blade Conversion Kit Parts Diagram

String Trimmer (Type 1)

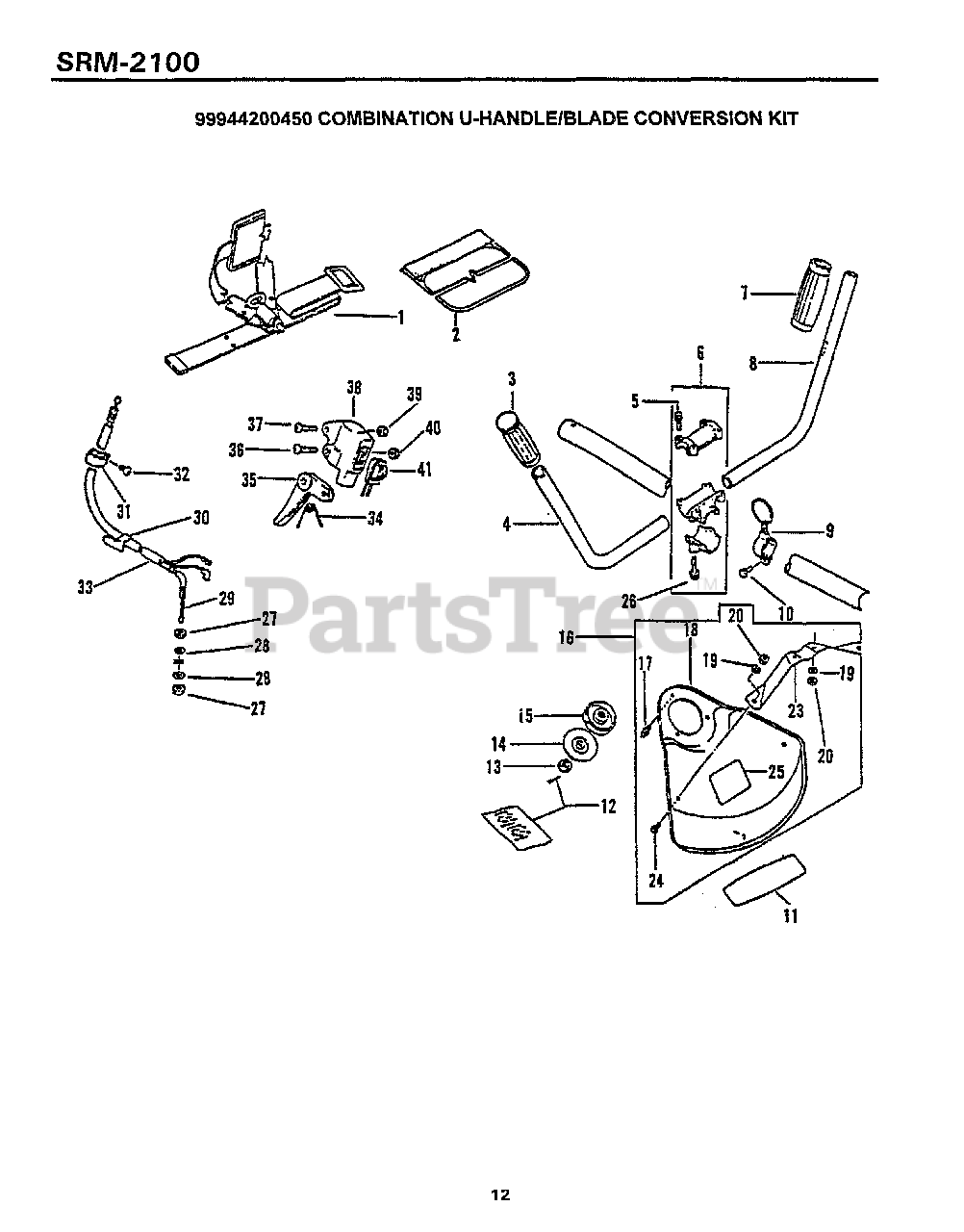

U-Handle / Blade Conversion Kit Parts Diagram

  • Title

Echo 35130444630

BLADE CONVERSION KIT

Note: Includes 1-41

$

$

Not available

1

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$25.99

$

In Stock, only 2 left!

0

2

Echo 30110541830

PAD, HIP
(Superseded to C652000000)

$28.99

$

Usually ships in 2-4 days

0

3

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

4

Echo 351210-05530

HANDLE, LEFT

$

$

Not available

5

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

6

Echo 35130109230

HANDLE BRACKET KIT
(Superseded to P021000460)

Note: Includes Items 5, 26

$34.99

$

Usually ships in 2-4 days

0

7

Echo 35131522130

GRIP

$12.99

$

Usually ships in 2-4 days

0

8

Echo 35101005530

HANDLE

$33.99

$

Usually ships in 2-4 days

0

9

Echo 30120521330

HOOK
(Superseded to 30120021330)

$3.99

$

In Stock, Qty 20+

0

10

Echo 90010005012

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

11

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0

12

Echo 900300-20022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 14

0

13

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

14

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 8

0

15

Echo 61033808930

PLATE, ADAPTER - UPPER
(Superseded to C535000160)

$12.99

$

In Stock, Qty 16

0

16

Echo 69900023431

SHIELD ASSY
(Superseded to 69900023432)

Note: Includes Items 17-20, 23-24

$27.99

$

In Stock, only 2 left!

0

17

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

18

Echo 69901023531

SHIELD
(Superseded to C550000200)

$17.99

$

In Stock, only 2 left!

0

19

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

20

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

23

Echo 69901523431

BRACKET, SHIELD MOUNTING

$12.99

$

Usually ships in 2-4 days

0

24

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

25

Echo 89016841030

LABEL - CAUTION
(Superseded to 89016841031)

$2.49

$

Usually ships in 2-4 days

0

26

Echo 900142-06030

BOLT - 6×30

$0.99

$

Usually ships in 2-4 days

0

27

Echo 90050300006

NUT 6 MM

$0.99

$

In Stock, Qty 5

0

28

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

29

Echo 17800141330

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

30

Echo 17811104930

BRACKET

$1.99

$

Usually ships in 2-4 days

0

31

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

32

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

33

Echo 17812708030

TUBE
(Superseded to V475002270)

$1.99

$

Usually ships in 2-4 days

0

34

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

35

Echo 17801006460

TRIGGER, THROTTLE

$5.99

$

In Stock, only 2 left!

0

36

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

37

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

38

Echo 17802441830

BRACKET, THROTTLE
(Superseded to 17802451830)

$8.49

$

Usually ships in 2-4 days

0

39

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

40

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

41

Echo 163401-49230

IGNITION SWITCH ASSY
(Superseded to A440000340)

$14.99

$

In Stock, only 1 left!

0
