SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Carburetor Parts Diagram

String Trimmer (Type 1)

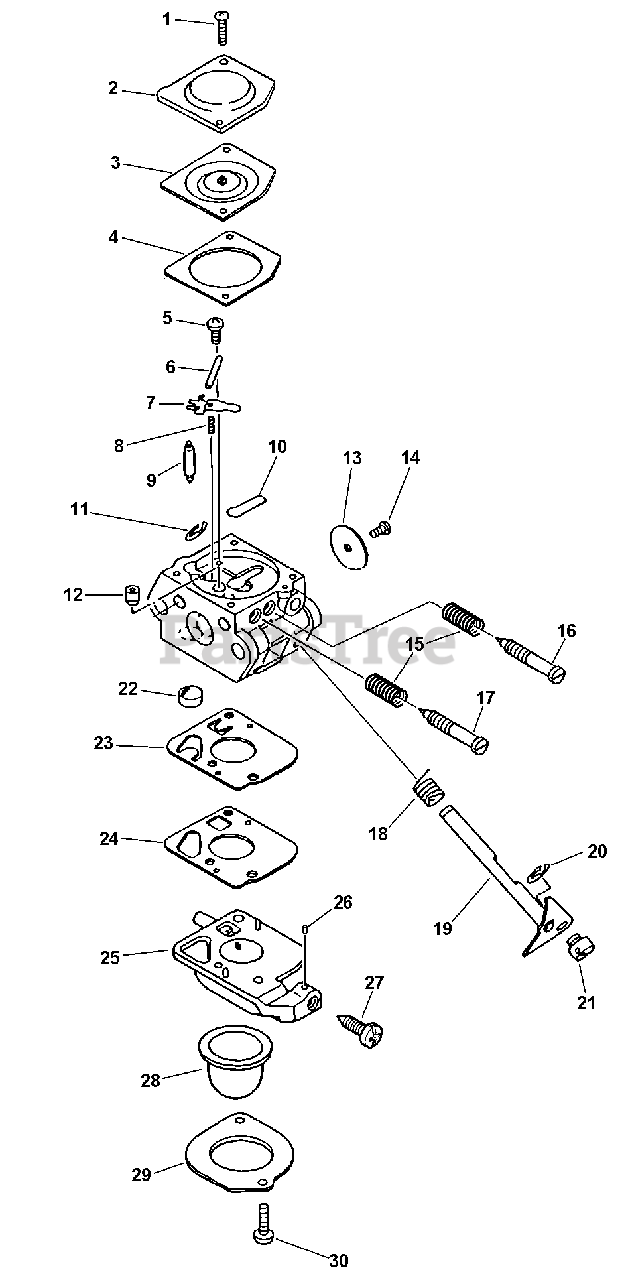

Carburetor Parts Diagram

  • Title

Echo 125200 50632

Carburetor C1U-K16

Note: Includes The Following Items:

$

$

Not available

1

Echo 12534413931

Screw

$2.49

$

In Stock, Qty 10

0

2

Echo 12534252130

Cover, Diaphragm

$3.99

$

Usually ships in 2-4 days

0

3

Echo 12530042030

Diaphragm

$17.99

$

In Stock, Qty 20+

0

3

Echo 12530342030

Diaphragm

$13.99

$

In Stock, only 1 left!

0

4

Echo 12530042030

Gasket, Diaphragm

$17.99

$

In Stock, Qty 20+

0

4

Echo 12530342030

Gasket, Diaphragm

$13.99

$

In Stock, only 1 left!

0

5

Echo 12533942030

Screw

$0.99

$

In Stock, Qty 12

0

6

Echo 12530042030

Pin

$17.99

$

In Stock, Qty 20+

0

7

Echo 12530042030

Arm, Valve

$17.99

$

In Stock, Qty 20+

0

8

Echo 12530042030

Spring, Coil

$17.99

$

In Stock, Qty 20+

0

9

Echo 12530042030

Valve, Needle

$17.99

$

In Stock, Qty 20+

0

10

Echo 12530042030

Plug, Welch

$17.99

$

In Stock, Qty 20+

0

11

Echo 12532715130

Clip

$0.99

$

Usually ships in 2-4 days

0

12

Echo 12537611610

Nozzle, Check Valve
(Superseded to Discontinued)

$

$

Not available

13

Echo 12531642030

Valve, Throttle

$2.49

$

In Stock, only 2 left!

0

14

Echo 12531413930

Screw

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12531942030

Spring, Coil

$1.49

$

In Stock, only 1 left!

0

16

Echo 12532047630

Needle, High Speed

$3.99

$

In Stock, only 1 left!

0

17

Echo 12531842030

Needle, Idle
(Superseded to 12531851330)

$

$

Not available

18

Echo 12531342030

Spring, Throttle Return

$1.49

$

In Stock, Qty 12

0

19

Echo 12531742030

Shaft, Throttle

$5.99

$

Usually ships in 2-4 days

0

20

Echo 12532713930

Clip

$0.99

$

Usually ships in 2-4 days

0

21

Echo 12537242030

Swivel

$4.49

$

Usually ships in 2-4 days

0

22

Echo 12530042030

Strainer

$17.99

$

In Stock, Qty 20+

0

23

Echo 12530042030

Diaphragm, Fuel Pump

$17.99

$

In Stock, Qty 20+

0

23

Echo 12530342030

Diaphragm, Fuel Pump

$13.99

$

In Stock, only 1 left!

0

24

Echo 12530042030

Gasket, Fuel Pump

$17.99

$

In Stock, Qty 20+

0

24

Echo 12530342030

Gasket, Fuel Pump

$13.99

$

In Stock, only 1 left!

0

25

Echo 12532411610

Cover, Pump

$21.99

$

In Stock, only 3 left!

0

26

Echo 12537813930

Piece, Friction

$1.99

$

Usually ships in 2-4 days

0

27

Echo 12533413930

Screw, Idle Adjust

$1.49

$

In Stock, only 4 left!

0

28

Echo 12538146730

Pump, Primer
(Superseded to P005003110)

$6.99

$

In Stock, Qty 20+

0

29

Echo 12536311610

Ring

$2.49

$

In Stock, Qty 15

0

30

Echo 12531011610

Screw

$1.49

$

In Stock, Qty 16

0
