SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Carburetor Parts Diagram

String Trimmer (Type 1)

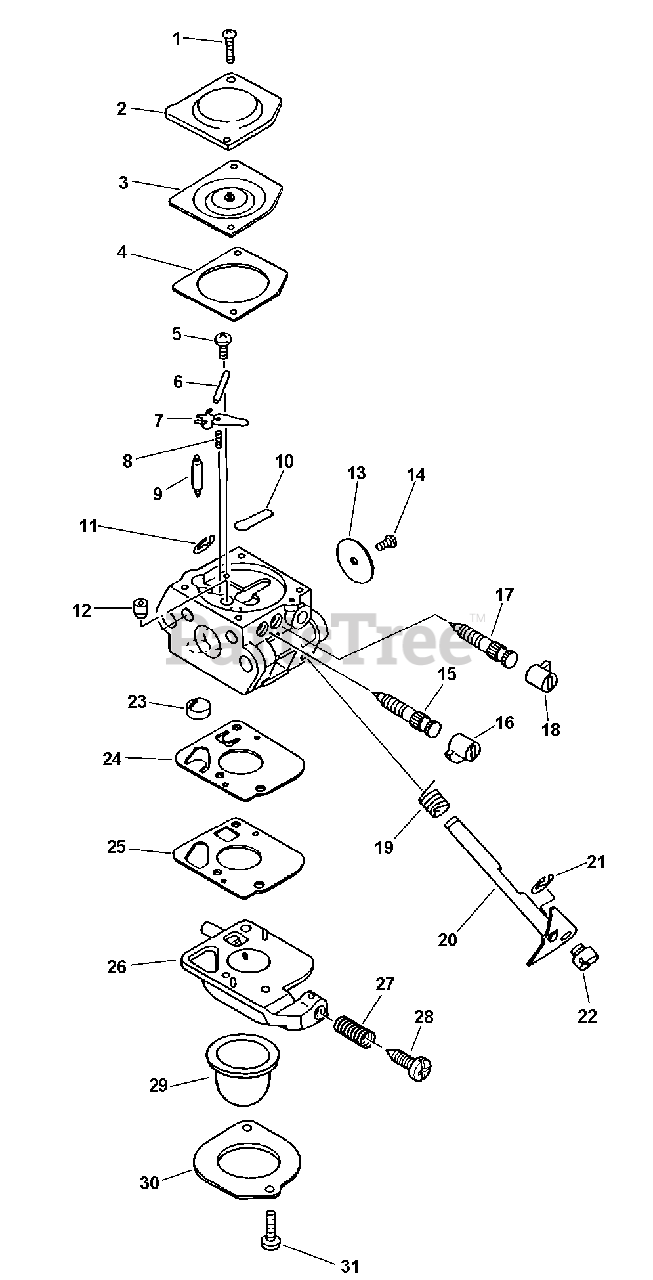

Carburetor Parts Diagram

  • Title

Echo 12520013312

Carburetor C1U-K52
(Superseded to 12520013313)

$78.99

$

In Stock, Qty 20+

0

1

Echo 12534452130

Screw

$0.99

$

In Stock, Qty 8

0

2

Echo 12534213210

Cover, Metering Chamber
(Superseded to 12534252130)

$3.99

$

Usually ships in 2-4 days

0

3

Echo 12530013310

Diaphragm, Metering
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

3

Echo 12530313310

Diaphragm, Metering

$8.99

$

In Stock, Qty 11

0

4

Echo 12530013310

Gasket, Diaphragm Metering
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

4

Echo 12530313310

Gasket, Diaphragm Metering

$8.99

$

In Stock, Qty 11

0

5

Echo 12533942030

Screw, Metering Pin

$0.99

$

In Stock, Qty 12

0

6

Echo 12530013310

Pin, Metering Lever
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

7

Echo 12530013310

Lever, Metering
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

8

Echo 12530013310

Spring, Metering Lever
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

9

Echo 12530013310

Valve, Needle
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

10

Echo 12530013310

Plug, Welch
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

11

Echo 12532715130

Clip, Throttle Shaft

$0.99

$

Usually ships in 2-4 days

0

12

Echo 12537649030

Nozzle, Check Valve
(Superseded to Discontinued)

$

$

Not available

13

Echo 12531649030

Valve, Throttle

$2.49

$

Usually ships in 2-4 days

0

14

Echo 12531413930

Screw, Throttle Valve

$1.49

$

Usually ships in 2-4 days

0

15

Echo 12532013310

Needle, High Speed

$3.99

$

Usually ships in 2-4 days

0

16

Echo 12532939030

Cap, limiter H.S.

$1.99

$

In Stock, Qty 11

0

17

Echo 12531813310

Needle, Idle
(Superseded to 12531813120)

$4.99

$

Usually ships in 2-4 days

0

18

Echo 12532909860

Cap, limiter l.S.

$1.99

$

In Stock, Qty 13

0

19

Echo 12531342030

Spring, Throttle Return

$1.49

$

In Stock, Qty 12

0

20

Echo 12531713310

Shaft, Throttle

$6.49

$

In Stock, only 1 left!

0

21

Echo 12532713930

Clip, Swivel

$0.99

$

Usually ships in 2-4 days

0

22

Echo 12537242030

Swivel

$4.49

$

Usually ships in 2-4 days

0

23

Echo 12530013310

Strainer
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

24

Echo 12530013310

Diaphragm, Fuel Pump
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

24

Echo 12530313310

Diaphragm, Fuel Pump

$8.99

$

In Stock, Qty 11

0

25

Echo 12530013310

Gasket, Fuel Pump
(Superseded to P005002840)

$18.99

$

In Stock, Qty 17

0

25

Echo 12530313310

Gasket, Fuel Pump

$8.99

$

In Stock, Qty 11

0

26

Echo 12538313310

Base, Purge
(Superseded to P005000990)

$22.99

$

In Stock, Qty 5

0

27

Echo 12533306960

Spring, Idle Adjuster

$1.49

$

In Stock, Qty 10

0

28

Echo 12533406960

Screw, Idle Adjust

$4.99

$

Usually ships in 2-4 days

0

29

Echo 12538108660

Pump, Purge
(Superseded to P005003120)

$6.99

$

In Stock, Qty 20+

0

30

Echo 12536311610

Ring

$2.49

$

In Stock, Qty 15

0

31

Echo 12531011610

Screw

$1.49

$

In Stock, Qty 16

0
