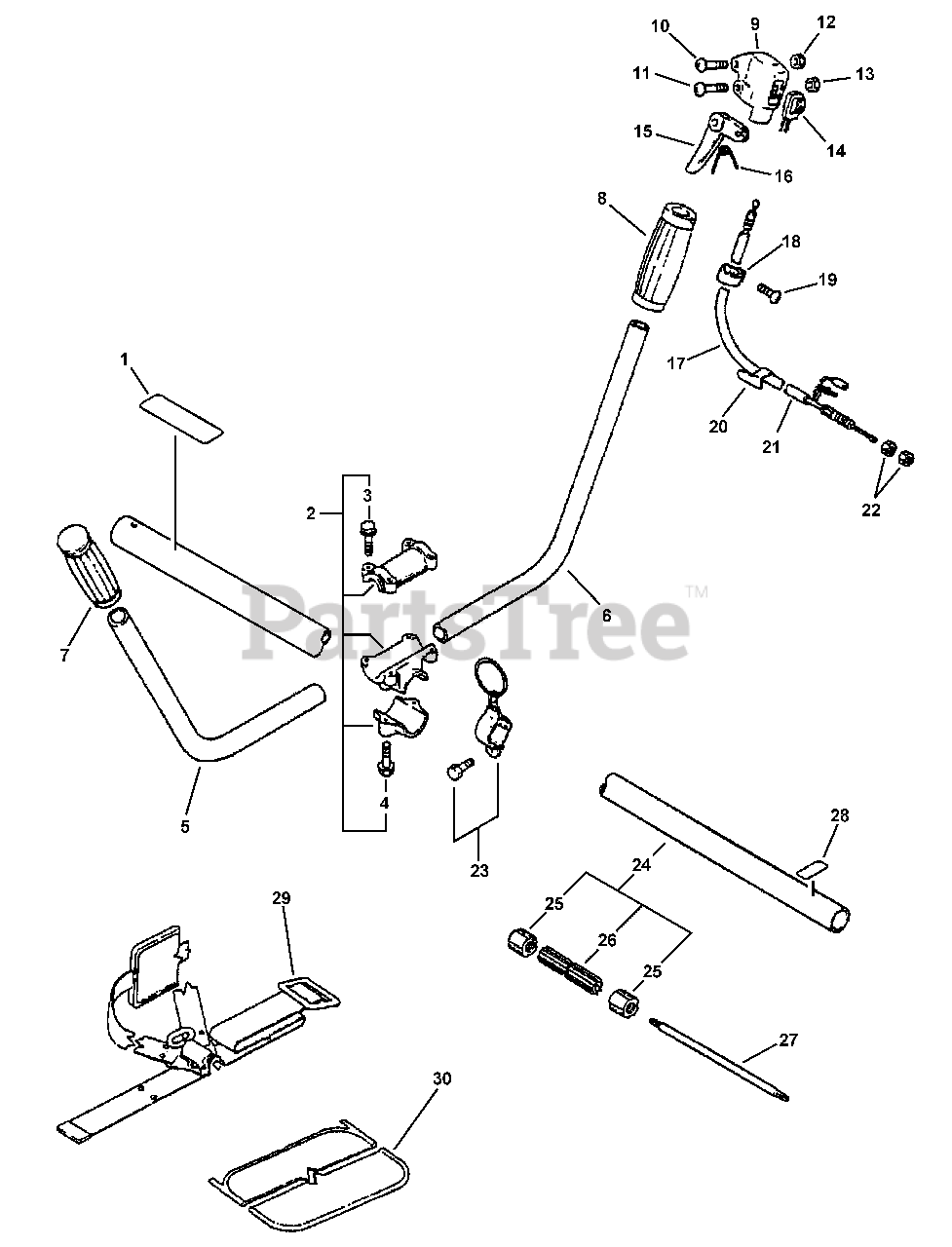

SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Drive Shaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

String Trimmer (Type 1)

Drive Shaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

  • Title

1

Echo 89016054130

Label, Caution

$1.49

$

In Stock, only 2 left!

0

2

Echo P021000460

Handle Bracket Asy

Note: Includes Items 3-4

$28.99

$

Usually ships in 2-4 days

0

3

Echo 90014205025

Bolt 5x25

$0.99

$

In Stock, Qty 10

0

4

Echo 90014206030

Bolt 6x30

$0.99

$

Usually ships in 2-4 days

0

5

Echo 35121005530

Handle, Front - Left

$

$

Not available

6

Echo 35101005530

Handle, Front - Right

$27.99

$

Usually ships in 2-4 days

0

7

Echo 35131102330

Grip, Handle

$6.49

$

In Stock, Qty 10

0

8

Echo 35131522130

Grip, Handle

$10.99

$

Usually ships in 2-4 days

0

9

Echo 17802451830

Bracket, Throttle

$7.49

$

In Stock, only 1 left!

0

10

Echo 90022005025

Screw 5x25

$0.99

$

In Stock, Qty 5

0

11

Echo 17811005330

Screw

$0.99

$

In Stock, Qty 17

0

12

Echo 90056000005

Locknut 5

$1.49

$

In Stock, Qty 20+

0

13

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 16340149230

Switch, Ignition
(Superseded to A440000340)

$11.99

$

In Stock, only 1 left!

0

15

Echo 17801006460

Control, Throttle

$4.99

$

In Stock, Qty 13

0

16

Echo 17804305230

Spring, Throttle Return

$0.99

$

In Stock, Qty 13

0

17

Echo 17800141330

Cable, Throttle
(Superseded to Discontinued)

$

$

Not available

18

Echo 17810605330

Band

$4.99

$

Usually ships in 2-4 days

0

19

Echo 90022005010

Screw 5x10

$0.99

$

In Stock, Qty 10

0

20

Echo 17811104930

Clip, Throttle Wire

$1.99

$

Usually ships in 2-4 days

0

21

Echo 17812708030

Tube 10x11x750
(Superseded to V475002270)

$1.49

$

Usually ships in 2-4 days

0

22

Echo 17802105530

Locknut

$2.99

$

Usually ships in 2-4 days

0

23

Echo 30120021330

Hook Asy
(Superseded to C646000060)

$3.49

$

In Stock, Qty 20+

0

24

Echo 61060944730

Driveshaft Housing Asy

Note: Includes Items 25-26

$51.99

$

In Stock, only 1 left!

0

25

Echo 61024644730

Fixture, Liner

$1.49

$

In Stock, Qty 20+

0

26

Echo 61021744730

Liner, Flexible
(Superseded to C507000260)

$25.99

$

In Stock, Qty 20+

0

27

Echo 61001344730

Shaft, Flexible
(Superseded to C506000390)

$16.99

$

In Stock, Qty 20+

0

28

Echo 89015204930

Label, Location

$0.99

$

In Stock, Qty 9

0

29

Echo 30100052131

Harness Asy
(Superseded to C062000070)

$21.99

$

In Stock, Qty 5

0

30

Echo 30110541830

Pad, Waist
(Superseded to C652000000)

$24.99

$

Usually ships in 2-4 days

0
