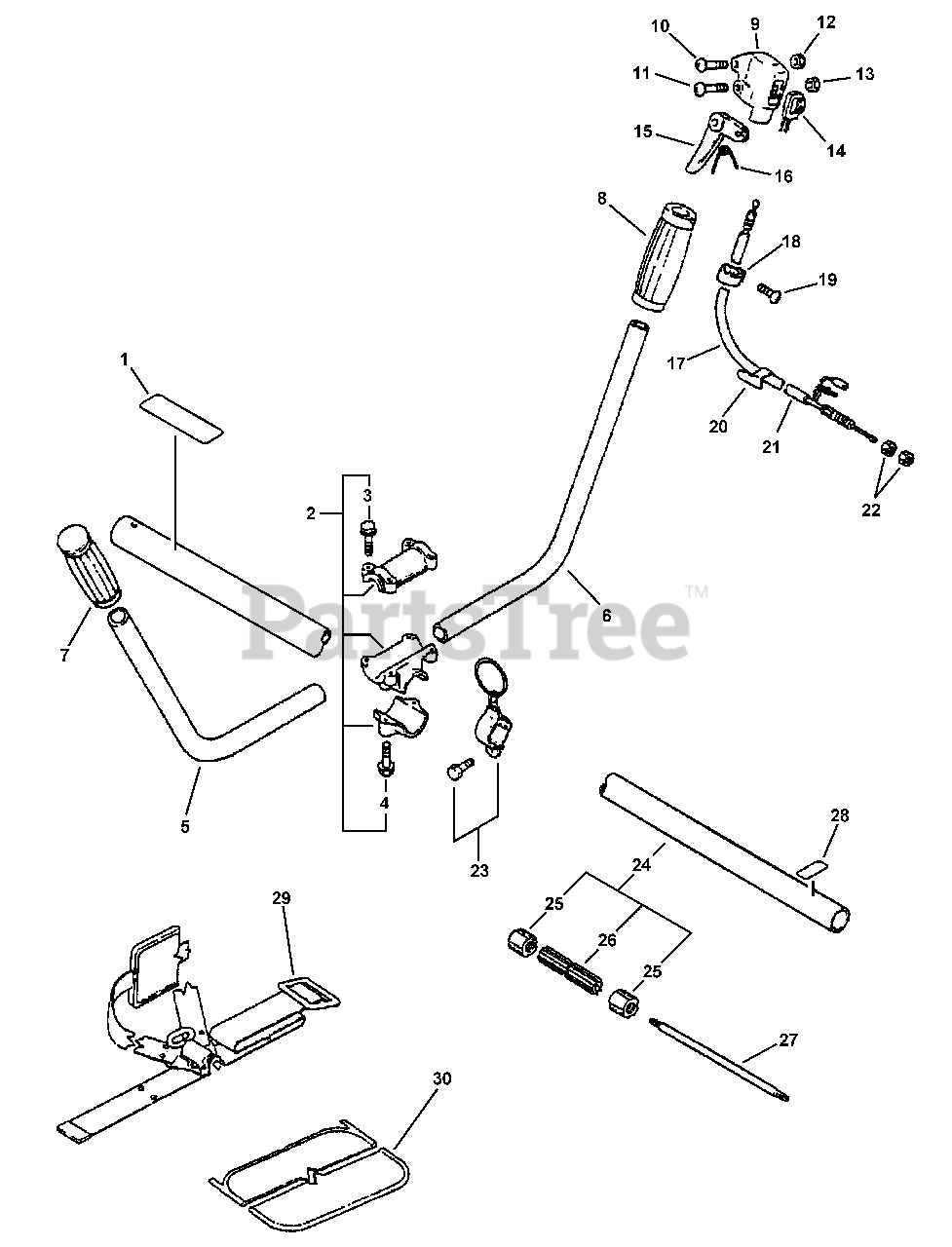

SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Drive Shaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

String Trimmer (Type 1)

Drive Shaft, Handles, Throttle, Stop Switch, Harness Parts Diagram

  • Title

1

Echo 89016054130

LABEL, CAUTION

$1.49

$

Usually ships in 2-4 days

0

2

Echo P021000460

BRACKET KIT, HANDLE

Note: Includes Items 3-4

$34.99

$

Usually ships in 2-4 days

0

3

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

4

Echo 900142-06030

BOLT - 6×30

$0.99

$

Usually ships in 2-4 days

0

5

Echo 351210-05530

HANDLE, LEFT

$

$

Not available

6

Echo 35101005530

HANDLE

$33.99

$

Usually ships in 2-4 days

0

7

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

8

Echo 35131522130

GRIP

$12.99

$

Usually ships in 2-4 days

0

9

Echo 17802451830

BODY, THROTTLE CONTROL

$8.49

$

Usually ships in 2-4 days

0

10

Echo 90022005025

SCREW 5×25

$0.99

$

In Stock, Qty 19

0

11

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

12

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 163401-49230

IGNITION SWITCH ASSY
(Superseded to A440000340)

$14.99

$

In Stock, only 1 left!

0

15

Echo 17801006460

TRIGGER, THROTTLE

$5.99

$

In Stock, only 2 left!

0

16

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

17

Echo 17800141330

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

18

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

19

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

20

Echo 17811104930

BRACKET

$1.99

$

Usually ships in 2-4 days

0

21

Echo 17812708030

TUBE
(Superseded to V475002270)

$1.99

$

Usually ships in 2-4 days

0

22

Echo 178021-05530

NUT

$3.49

$

Usually ships in 2-4 days

0

23

Echo 30120021330

HANGER ASSY, HARNESS
(Superseded to C646000060)

$3.99

$

In Stock, Qty 20+

0

24

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: Includes Items 25-26

$55.99

$

Usually ships in 2-4 days

0

25

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

26

Echo 61021744730

LINER - FLEXIBLE
(Superseded to C507000260)

$

$

Not available

27

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, only 3 left!

0

28

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0

29

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$25.99

$

In Stock, only 2 left!

0

30

Echo 30110541830

PAD, HIP
(Superseded to C652000000)

$28.99

$

Usually ships in 2-4 days

0
