SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Gear Case, Shield, Tools Parts Diagram

String Trimmer (Type 1)

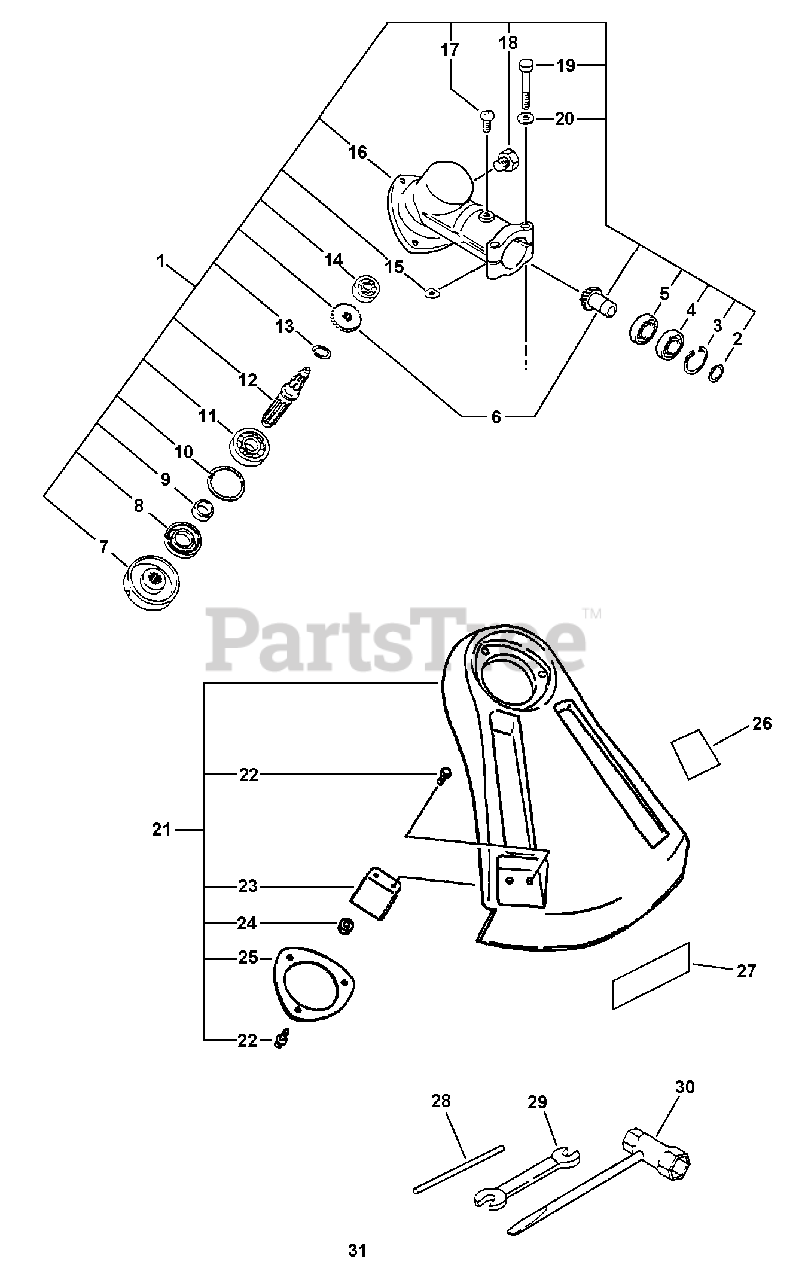

Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 61040247731

Gear Housing Asy
(Superseded to 61040247732)

Note: Includes Items 2-20

$98.99

$

Usually ships in 2-4 days

0

2

Echo 90070600010

Circlip 10

$1.49

$

In Stock, Qty 20+

0

3

Echo 90070200022

Circlip 22

$1.99

$

In Stock, only 2 left!

0

4

Echo 90085806900

Bearing, Ball 6900

$22.99

$

In Stock, Qty 8

0

5

Echo 90085506900

Bearing, Ball 6900

$18.99

$

In Stock, Qty 7

0

6

Echo 61030044830

Gear Set, Bevel

$88.99

$

Usually ships in 2-4 days

0

7

Echo 61031347731

Plate, Adapter (U)

$12.99

$

In Stock, Qty 20+

0

8

Echo 61041307130

Oilseal

$5.99

$

In Stock, Qty 20+

0

9

Echo 61031507130

Spacer

$3.99

$

In Stock, Qty 15

0

10

Echo 90070200032

Circlip 32

$1.99

$

In Stock, Qty 20+

0

11

Echo 90081006201

Bearing, Ball 6201

$6.99

$

Usually ships in 2-4 days

0

12

Echo 61036008931

Shaft, p.t.o.
(Superseded to C534000270)

$67.99

$

In Stock, Qty 6

0

13

Echo 90070600012

Circlip 12

$1.49

$

In Stock, Qty 10

0

14

Echo 90080000609

Bearing, Ball 609

$9.99

$

In Stock, Qty 16

0

15

Echo 61023904130

Washer, Shim

$0.99

$

In Stock, Qty 7

0

16

Echo 61046027430

Housing, Gear
(Superseded to 61046027431)

$98.99

$

Usually ships in 2-4 days

0

17

Echo 90024205010

Screw 5x10

$0.99

$

In Stock, Qty 20+

0

18

Echo 90010008008

Bolt 8x8

$0.99

$

In Stock, Qty 12

0

19

Echo 90010005035

Bolt 5x35

$0.99

$

In Stock, Qty 20+

0

20

Echo 90060000005

Washer 5

$0.99

$

In Stock, Qty 20+

0

21

Echo P021001391

Shield Asy
(Superseded to P021001392)

Note: Includes Items 22-25

$14.99

$

In Stock, Qty 20+

0

22

Echo 90024205016

Screw 5x16

$0.99

$

In Stock, Qty 20+

0

23

Echo 69901644330

Knife, Cord
(Superseded to C554000080)

$3.99

$

In Stock, Qty 20+

0

24

Echo 90050000005

Nut 5

$0.99

$

In Stock, Qty 20+

0

25

Echo 69901840830

Bracket, Shield
(Superseded to C552000110)

$2.49

$

In Stock, Qty 20+

0

26

Echo 89016844830

Label, Caution

$3.49

$

Usually ships in 2-4 days

0

27

Echo 89011848830

Label, Echo
(Superseded to X502000320)

$0.99

$

In Stock, Qty 15

0

28

Echo 89751801131

Locking Tool

$

$

Not available

29

Echo 89511200330

Spanner 8x10

$0.99

$

In Stock, Qty 9

0

30

Echo 89541008030

Wrench, W/Screwdriver
(Superseded to X602000020)

$3.49

$

In Stock, Qty 20+

0
