SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Handle, Stop Switch, Throttle Cable, Driveshaft Parts Diagram

String Trimmer (Type 1)

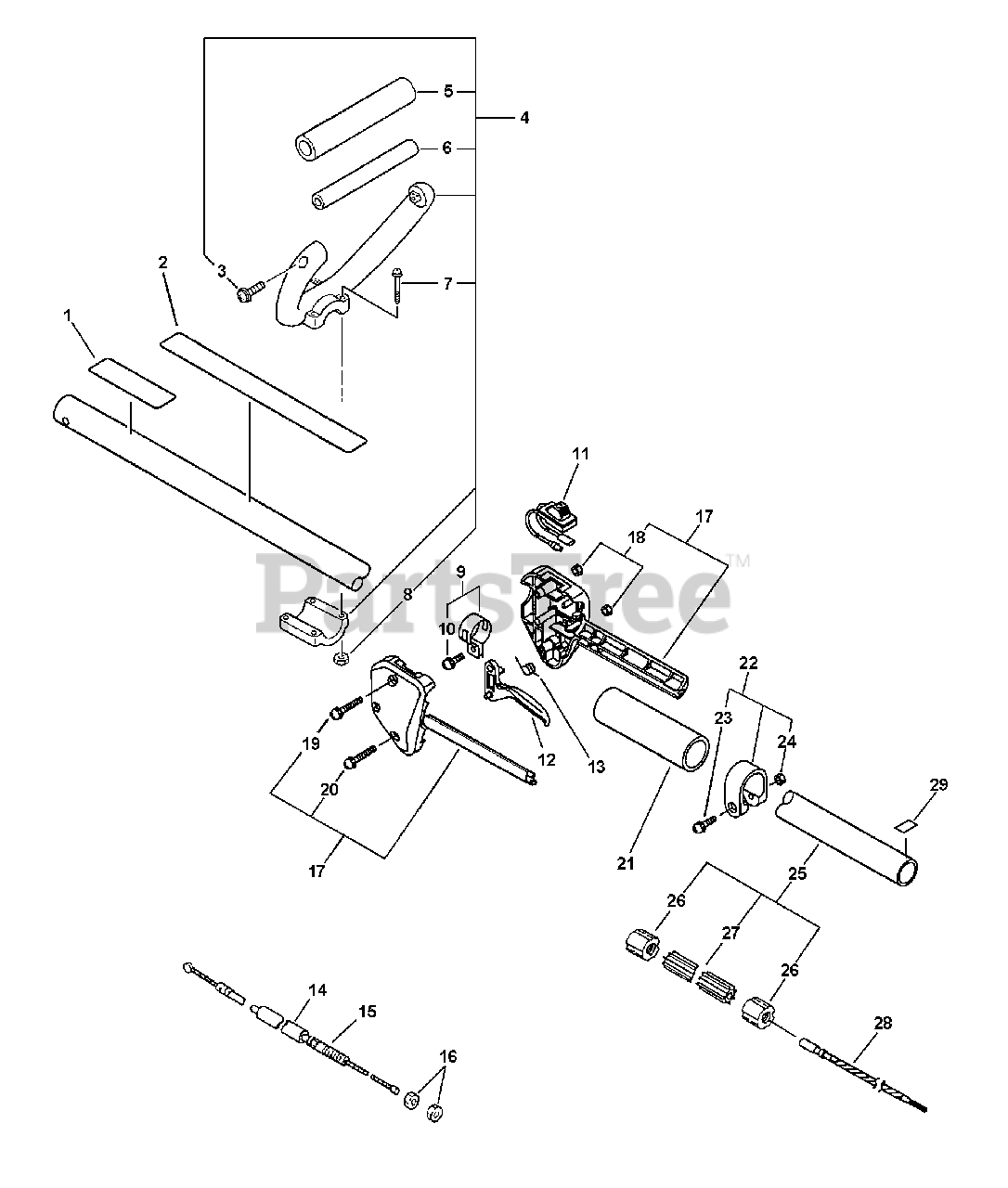

Handle, Stop Switch, Throttle Cable, Driveshaft Parts Diagram

  • Title

1

Echo 89016044430

LABEL - CAUTION
(Superseded to 89016052730)

$1.99

$

Usually ships in 2-4 days

0

2

Echo 89016047630

LABEL - CAUTION
(Superseded to 89016049630)

$7.49

$

Usually ships in 2-4 days

0

3

Echo 90024605030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 35120152130

LOOP HANDLE ASSY

Note: Includes Items 5-8

$78.99

$

Usually ships in 2-4 days

0

5

Echo 35121351730

GRIP, HANDLE

$9.99

$

In Stock, only 2 left!

0

6

Echo 35121051730

HANDLE

$5.49

$

Usually ships in 2-4 days

0

7

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

8

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

9

Echo 301200-29430

CLAMP KIT
(Superseded to 30120029431)

Note: Includes Item 10

$11.99

$

In Stock, only 2 left!

0

10

Echo 900242-05014

SCREW 5×14

$0.99

$

In Stock, Qty 20+

0

11

Echo 16340049230

IGNITION SWITCH ASSY
(Superseded to 16340155631)

$10.99

$

In Stock, only 2 left!

0

12

Echo 17801052130

TRIGGER, THROTTLE

$4.49

$

In Stock, Qty 20+

0

13

Echo 178043-42230

SPRING, TORSION

$0.99

$

In Stock, Qty 20+

0

14

Echo 17812706960

PIPE

$2.99

$

In Stock, only 2 left!

0

15

Echo 17800144430

CABLE, THROTTLE

$12.99

$

In Stock, only 2 left!

0

16

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 11

0

17

Echo 17800352130

HANDLE KIT, CONTROL

Note: Includes Items 18-20

$5.99

$

In Stock, only 3 left!

0

18

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205035

SCREW 5×35

$0.99

$

In Stock, Qty 20+

0

20

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

21

Echo 35121352130

GRIP, HANDLE

$11.99

$

In Stock, Qty 16

0

22

Echo 61027252130

CLAMP KIT

Note: Includes Items 23-24

$11.99

$

In Stock, only 2 left!

0

23

Echo 90024205030

SCREW 5×30

$0.99

$

In Stock, only 2 left!

0

24

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

25

Echo 61060944730

MAIN PIPE ASSY 25×1500

Note: Includes Items 26-27

$55.99

$

Usually ships in 2-4 days

0

26

Echo 61024644730

STOPPER

$1.49

$

In Stock, Qty 20+

0

27

Echo 61021744730

LINER - FLEXIBLE
(Superseded to C507000260)

$

$

Not available

28

Echo 61001344730

DRIVESHAFT - FLEXIBLE L= 1522
(Superseded to C506000390)

$20.99

$

In Stock, only 3 left!

0

29

Echo 890152-04930

LABEL - ALIGNMENT

$0.99

$

In Stock, Qty 11

0
