SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Intake, Exhaust Parts Diagram

String Trimmer (Type 1)

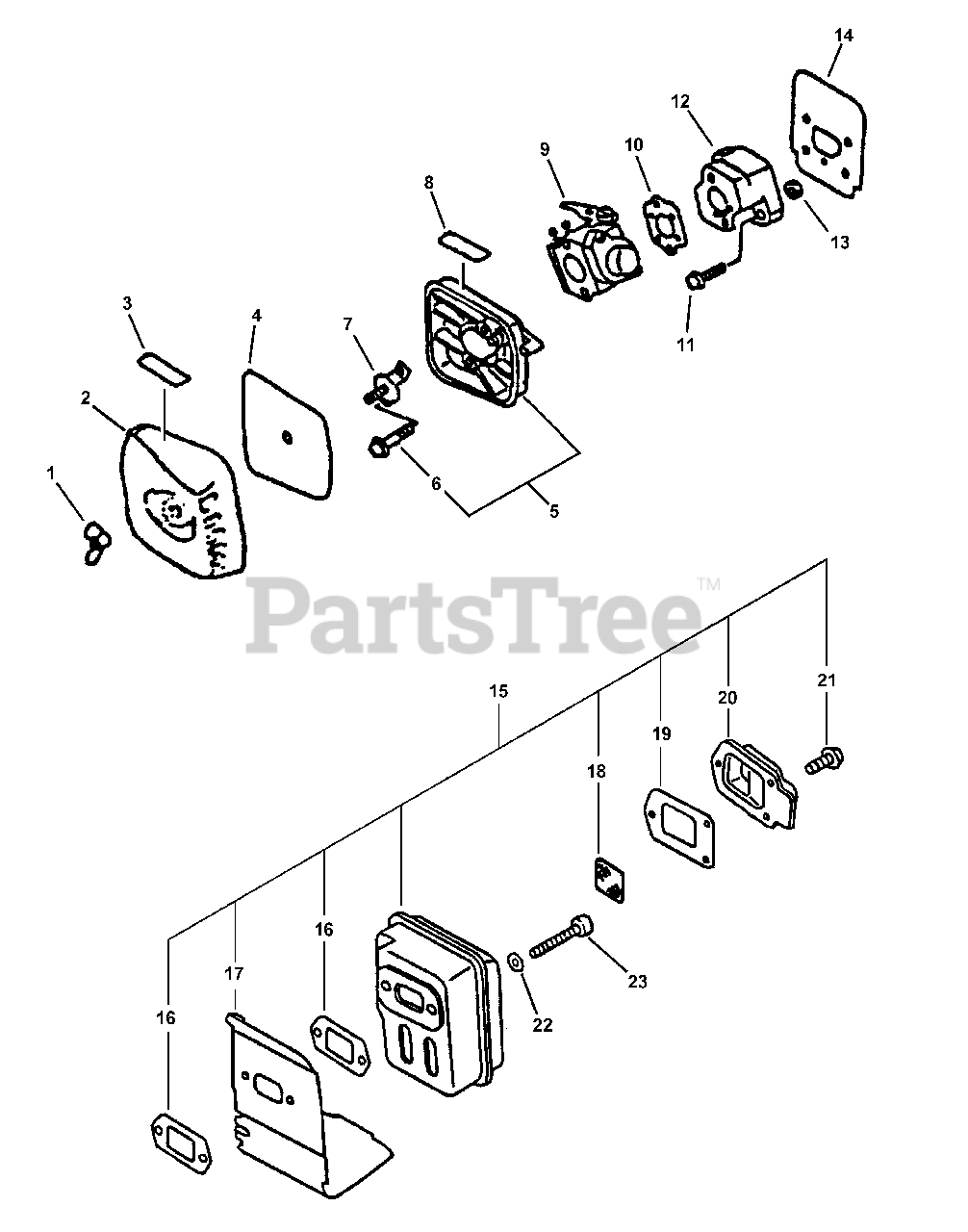

Intake, Exhaust Parts Diagram

  • Title

1

Echo 90052800005

WINGNUT - 6

$1.99

$

In Stock, Qty 5

0

2

Echo 13030206561

COVER, AIR FILTER

$9.49

$

In Stock, only 2 left!

0

3

Echo 89018706960

LABEL - TOP

$3.99

$

Usually ships in 2-4 days

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$8.99

$

In Stock, Qty 20+

0

5

Echo 13030706561

AIR FILTER CASE ASSY
(Superseded to P021002921)

Note: Includes Item 6

$14.99

$

In Stock, Qty 9

0

6

Echo 90024205065

SCREW 5×65

$0.99

$

In Stock, Qty 20+

0

7

Echo 12901105060

PLATE, PREVENT

$6.99

$

In Stock, Qty 7

0

8

Echo 89012106360

LABEL, CHOKE

$1.99

$

In Stock, only 4 left!

0

9

Echo 125200 50632

CARBURETOR - C1U-K16

Note: Carburetor

$

$

Not available

9

Echo 12520049030

CARBURETOR - C1U-K47
(Superseded to 12520013311)

Note: Carburetor

$94.99

$

In Stock, Qty 7

0

9

Echo 12520013312

CARBURETOR - C1U-K52
(Superseded to 12520013313)

Note: Carburetor

$94.99

$

In Stock, Qty 7

0

10

Echo V103000111

GASKET, INTAKE
(Superseded to 13001642031)

$1.49

$

In Stock, Qty 20+

0

11

Echo 900238-05020

SCREW 5×20

$0.99

$

In Stock, Qty 10

0

12

Echo 130017-42031

INSULATOR, INTAKE

$11.99

$

In Stock, Qty 8

0

13

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

14

Echo 130010-42032

HEAT SHIELD, INTAKE

$2.99

$

In Stock, Qty 12

0

15

Echo 14580042031

MUFFLER ASSY
(Superseded to 14580642030)

Note: Includes Items 16-21

$55.99

$

In Stock, only 1 left!

0

16

Echo V104000160

GASKET, EXHAUST

$2.49

$

In Stock, Qty 20+

0

17

Echo 14587152130

COVER, EXHAUST
(Superseded to A320000250)

$5.99

$

In Stock, only 2 left!

0

18

Echo 14586240630

SCREEN, SPARK ARRESTER

$2.49

$

In Stock, Qty 6

0

19

Echo 145866-42031

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

20

Echo 145809-42030

GUIDE, EXHAUST - INNER

$8.99

$

Usually ships in 2-4 days

0

21

Echo 90023804010

SCREW 4×10

$0.99

$

In Stock, only 2 left!

0

22

Echo 900600-00005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 900105-05055

BOLT 5×55

$1.99

$

In Stock, Qty 20+

0
