SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Optional Combination U-Handle/Blade Conversion Kit 99944200451 Parts Diagram

String Trimmer (Type 1)

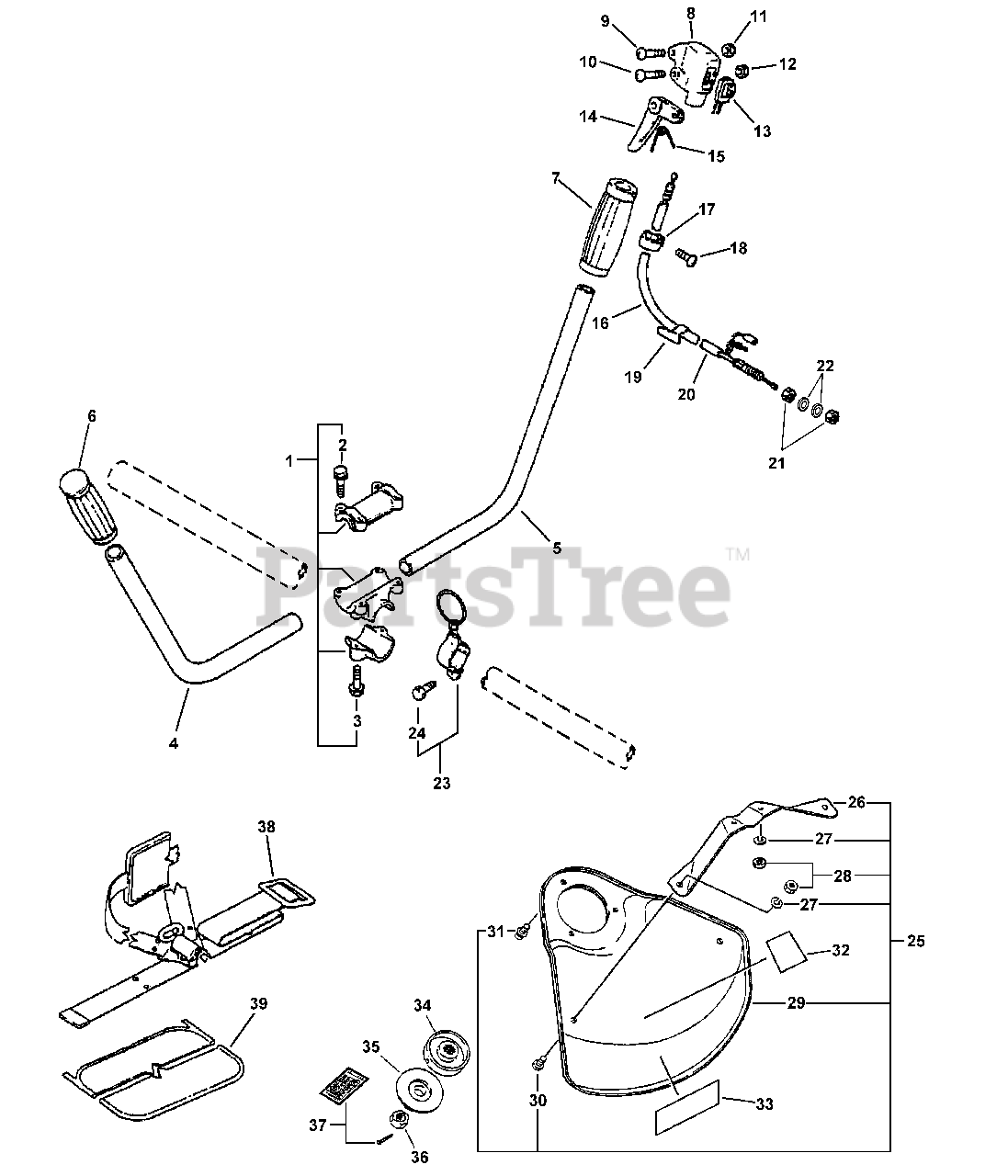

Optional Combination U-Handle/Blade Conversion Kit 99944200451 Parts Diagram

  • Title

1

Echo P021000460

BRACKET KIT, HANDLE

Note: Includes Items 2-3

$34.99

$

Usually ships in 2-4 days

0

2

Echo 900142-05025

BOLT - 5×25

$0.99

$

In Stock, Qty 9

0

3

Echo 900142-06030

BOLT - 6×30

$0.99

$

Usually ships in 2-4 days

0

4

Echo 351210-05530

HANDLE, LEFT

$

$

Not available

5

Echo 35101005530

HANDLE

$33.99

$

Usually ships in 2-4 days

0

6

Echo 35131122430

GRIP, HANDLE
(Superseded to 35131122431)

$6.49

$

In Stock, only 3 left!

0

7

Echo 35131522130

GRIP

$12.99

$

Usually ships in 2-4 days

0

8

Echo 17802451830

BODY, THROTTLE CONTROL

$8.49

$

Usually ships in 2-4 days

0

9

Echo 17811005330

SCREW

$0.99

$

In Stock, Qty 11

0

10

Echo 900242-05025

SCREW 5×25

$0.99

$

In Stock, Qty 20+

0

11

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 14

0

12

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 163401-49230

IGNITION SWITCH ASSY
(Superseded to A440000340)

$14.99

$

In Stock, only 1 left!

0

14

Echo 17801006460

TRIGGER, THROTTLE

$5.99

$

In Stock, only 2 left!

0

15

Echo 17804305230

SPRING

$0.99

$

In Stock, only 3 left!

0

16

Echo 17800141330

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

17

Echo 17810605330

CLAMP

$5.99

$

Usually ships in 2-4 days

0

18

Echo 90022005010

SCREW 5×10

$0.99

$

In Stock, Qty 7

0

19

Echo 17811104930

BRACKET

$1.99

$

Usually ships in 2-4 days

0

20

Echo 17812708030

TUBE
(Superseded to V475002270)

$1.99

$

Usually ships in 2-4 days

0

21

Echo 90050300006

NUT 6 MM

$0.99

$

In Stock, Qty 5

0

22

Echo 90060000006

WASHER 6.5×11.5×0.8

$0.99

$

In Stock, Qty 20+

0

23

Echo 30120021330

HANGER ASSY, HARNESS
(Superseded to C646000060)

$3.99

$

In Stock, Qty 20+

0

24

Echo 90010005012

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

25

Echo 69900023431

SHIELD ASSY
(Superseded to 69900023432)

Note: Includes Items 26-31

$27.99

$

In Stock, only 2 left!

0

26

Echo 69901523431

BRACKET, SHIELD MOUNTING

$12.99

$

Usually ships in 2-4 days

0

27

Echo 900605-00005

WASHER, SPRING 5

$0.99

$

In Stock, Qty 9

0

28

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

29

Echo 69901023531

SHIELD
(Superseded to C550000200)

$17.99

$

In Stock, only 2 left!

0

30

Echo 90022005008

SCREW 5×8

$0.99

$

In Stock, only 3 left!

0

31

Echo 900242-05010

SCREW 5×10

$0.99

$

In Stock, Qty 20+

0

32

Echo 89016841030

LABEL - CAUTION
(Superseded to 89016841031)

$2.49

$

Usually ships in 2-4 days

0

33

Echo 89011848830

LABEL, ECHO
(Superseded to X502000320)

$0.99

$

In Stock, Qty 5

0

34

Echo 61033808930

PLATE, ADAPTER - UPPER
(Superseded to C535000160)

$12.99

$

In Stock, Qty 16

0

35

Echo 61031404131

PLATE, ADAPTOR - LOWER
(Superseded to C535000150)

$10.99

$

In Stock, Qty 8

0

36

Echo 900511-00010

NUT 10

$1.99

$

In Stock, Qty 20+

0

37

Echo 900300-20022

PIN, COTTER 2×22

$0.99

$

In Stock, Qty 14

0

38

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$25.99

$

In Stock, only 2 left!

0

39

Echo 30110541830

PAD, HIP
(Superseded to C652000000)

$28.99

$

Usually ships in 2-4 days

0
