SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Optional Offset U-Handle Kit 35130454130 Parts Diagram

String Trimmer (Type 1)

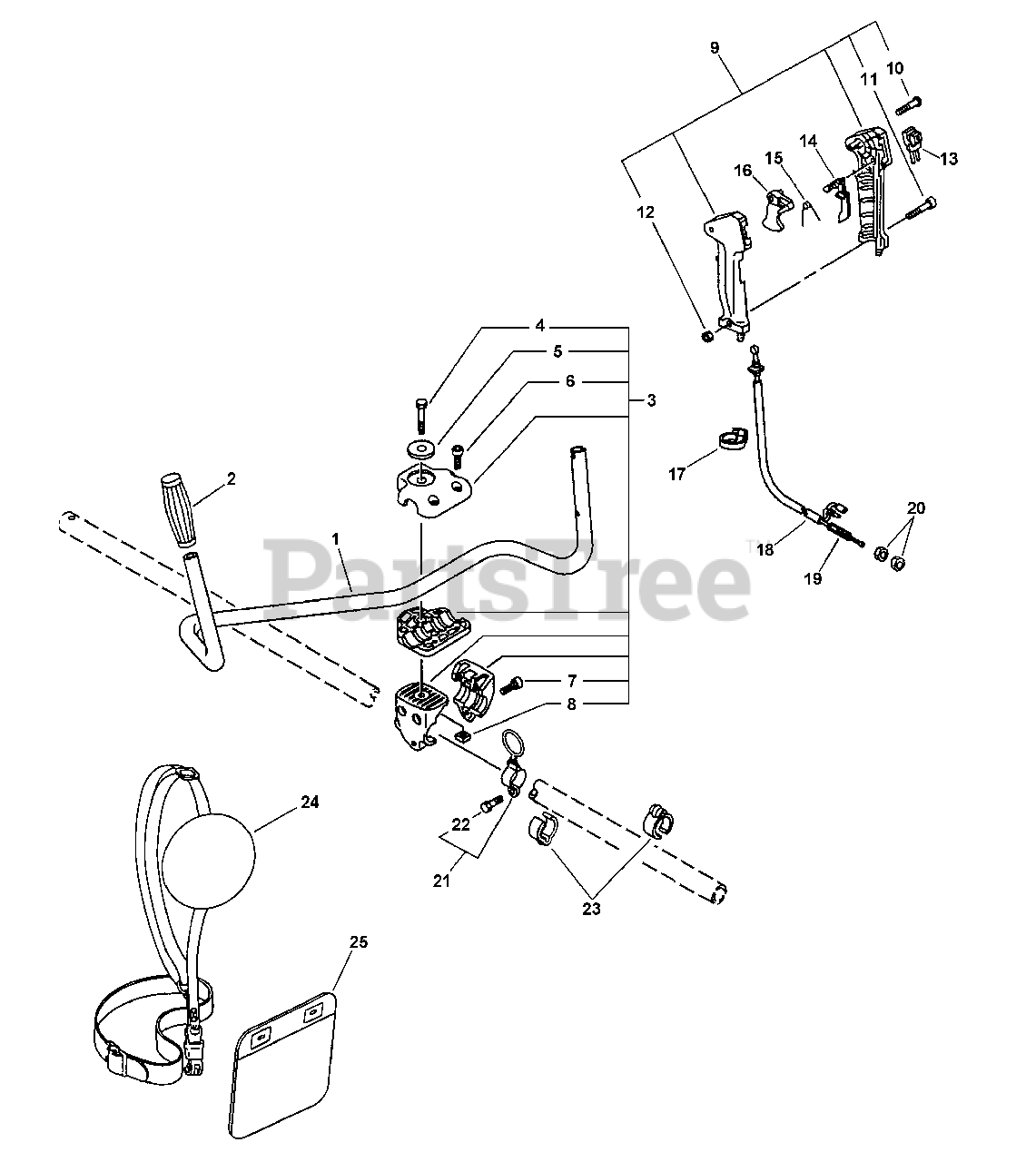

Optional Offset U-Handle Kit 35130454130 Parts Diagram

  • Title

1

Echo C400000000

HANDLEBAR

$102.99

$

Usually ships in 2-4 days

0

2

Echo 351311-02330

GRIP, HANDLE

$7.49

$

In Stock, only 2 left!

0

3

Echo 35130152130

BRACKET ASSY, HANDLE
(Superseded to P021012790)

Note: Includes Items 4-8

$105.99

$

In Stock, only 1 left!

0

4

Echo 35142152130

BOLT 8×55

$3.49

$

Usually ships in 2-4 days

0

5

Echo 60501454230

WASHER 8

$4.49

$

Usually ships in 2-4 days

0

6

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

7

Echo 90016205030

BOLT 5×30

$1.49

$

In Stock, only 2 left!

0

8

Echo 90056550008

NUT 8×1.25

$1.49

$

Usually ships in 2-4 days

0

9

Echo 351102-47530

CONTROL HANDLE KIT

Note: Includes Items 10-12

$41.99

$

In Stock, only 2 left!

0

10

Echo 900246-03025

SCREW 3×25

$0.99

$

Usually ships in 2-4 days

0

11

Echo 900220-05030

SCREW 5×30

$0.99

$

Usually ships in 2-4 days

0

12

Echo 900500-00005

NUT M5
(Superseded to 90050000005)

$0.99

$

In Stock, Qty 20+

0

13

Echo 163401-49230

IGNITION SWITCH ASSY
(Superseded to A440000340)

$14.99

$

In Stock, only 1 left!

0

14

Echo 178012-05960

LOCKOUT, THROTTLE

$6.99

$

In Stock, only 2 left!

0

15

Echo 178013-35631

SPRING, TORSION

$2.99

$

In Stock, Qty 5

0

16

Echo 178010-05960

TRIGGER, THROTTLE

$6.49

$

In Stock, only 2 left!

0

17

Echo 15911209960

CLIP
(Superseded to 15911209961)

$4.99

$

Usually ships in 2-4 days

0

18

Echo V475000000

TUBE, FLEXIBLE 7×790

$6.49

$

Usually ships in 2-4 days

0

19

Echo 178001-47530

CABLE, THROTTLE

$17.99

$

Usually ships in 2-4 days

0

20

Echo 900502-00006

NUT M6

$0.99

$

In Stock, Qty 12

0

21

Echo 30120021330

HANGER ASSY, HARNESS
(Superseded to C646000060)

Note: Includes Item 22

$3.99

$

In Stock, Qty 20+

0

22

Echo 90010005012

BOLT 5×12

$0.99

$

Usually ships in 2-4 days

0

23

Echo 22492452130

CLIP, CABLE 25 MM

$7.99

$

In Stock, only 3 left!

0

24

Echo 30100052131

SHOULDER STRAP ASSY
(Superseded to C062000070)

$25.99

$

In Stock, only 2 left!

0

25

Echo 30110541830

PAD, HIP
(Superseded to C652000000)

$28.99

$

Usually ships in 2-4 days

0
