SRM-2100 - Echo String Trimmer (Type 1) (SN: 159491 - 999999) Starter, Fuel System Parts Diagram

String Trimmer (Type 1)

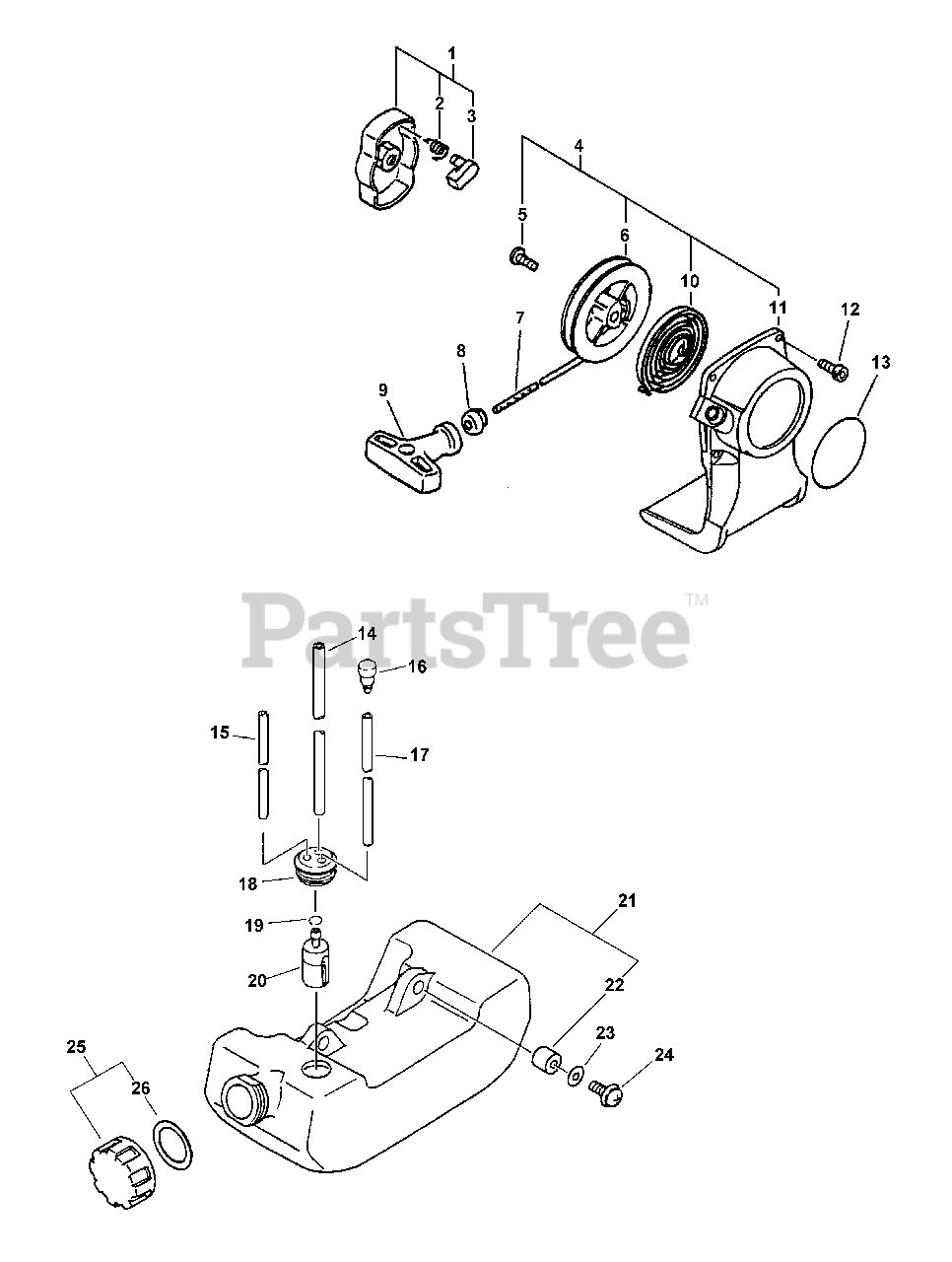

Starter, Fuel System Parts Diagram

  • Title

1

Echo 177202-44330

PAWL ASSY, STARTER

Note: Includes Items 2-3

$11.99

$

In Stock, Qty 9

0

2

Echo 177234-42030

SPRING, RETURN
(Superseded to 17723412220)

$4.99

$

In Stock, Qty 13

0

3

Echo 177218-44330

PAWL, STARTER - BLACK

Note: Includes Items 5-11

$4.49

$

In Stock, Qty 20+

0

4

Echo 17720054130

STARTER ASSY

$53.99

$

In Stock, only 3 left!

0

5

Echo 177236-44330

SCREW
(Superseded to 17723644330)

$3.99

$

In Stock, Qty 10

0

6

Echo 177215-44430

REEL, ROPE

$10.99

$

In Stock, Qty 6

0

7

Echo 177226-10120

ROPE, STARTER 3.0×1000

Note: Optional Bulk Rope 99944444000 3mm(1/8in) X 1000mm(39-1/2in)

$6.99

$

In Stock, only 2 left!

0

8

Echo 177227-42030

GUIDE, ROPE
(Superseded to 17722742030)

$2.99

$

Usually ships in 2-4 days

0

9

Echo 177228-06530

GRIP, STARTER

$5.99

$

In Stock, Qty 5

0

10

Echo 177220-42030

SPRING, RECOIL
(Superseded to P022019680)

$11.99

$

In Stock, Qty 10

0

11

Echo 17723244333

CASE, RECOIL STARTER

$48.99

$

In Stock, only 1 left!

0

12

Echo 90016204016

BOLT 4×16
(Superseded to 90016304016)

$1.99

$

In Stock, Qty 18

0

13

Echo 890118-49130

LABEL, ECHO

$0.99

$

In Stock, Qty 20+

0

14

Echo 13201013930

PIPE, FUEL
(Superseded to V471001190)

Note: Optional Bulk Line 90014

$1.49

$

In Stock, Qty 20+

0

15

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

Note: Optional Bulk Line 90017

$3.49

$

In Stock, Qty 9

0

16

Echo 131300-56430

VENT ASSY
(Superseded to 13130056431)

$8.99

$

In Stock, Qty 7

0

17

Echo 13131239130

PIPE, FUEL VENT
(Superseded to V471001200)

Note: Optional Bulk Line 90014

$2.49

$

In Stock, Qty 20+

0

18

Echo 13211546730

GROMMET, FUEL Ø5

$2.49

$

In Stock, Qty 20+

0

19

Echo 132013-09820

CLIP 6 MM

$0.99

$

In Stock, Qty 7

0

20

Echo 131205-07320

FILTER, FUEL

$6.49

$

In Stock, Qty 20+

0

21

Echo 131005-44331

TANK, FUEL
(Superseded to 13100544332)

Note: Includes Item 22

$21.99

$

In Stock, Qty 6

0

22

Echo 13104528230

SPACER 6.2×7.8×6

$1.99

$

In Stock, Qty 20+

0

23

Echo 900603-00005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

24

Echo 90023805016

SCREW 5×16

$0.99

$

In Stock, Qty 20+

0

25

Echo 13100455830

CAP ASSY, FUEL
(Superseded to P200000830)

Note: Includes Item 26

$5.49

$

In Stock, only 2 left!

0

26

Echo 13101640930

GASKET, FUEL CAP

$3.49

$

In Stock, Qty 8

0
