SRM-2100 - Echo String Trimmer (Type 1E) Gear Case, Shield, Tools Parts Diagram

String Trimmer (Type 1E)

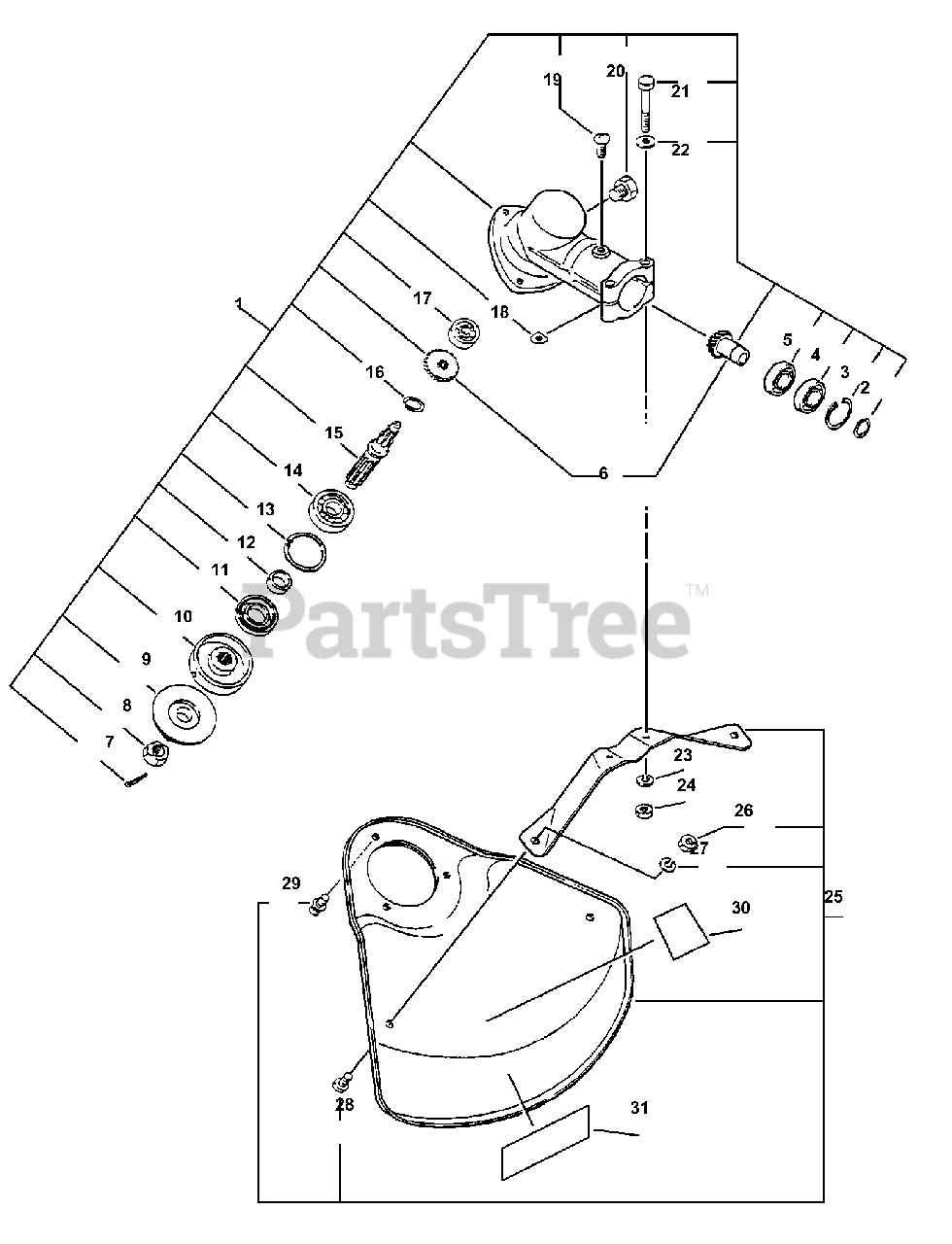

Gear Case, Shield, Tools Parts Diagram

  • Title

1

Echo 61040240930

GEAR CASE ASSY
(Superseded to 61040240932)

Note: INCLUDES ITEMS 2-22; SRM-2110 TYPE 1E ONLY

$189.99

$

Usually ships in 2-4 days

0

2

Echo 90070600010

RING, RETAINING - 10

Note: SRM-2110 TYPE 1E ONLY

$1.49

$

In Stock, Qty 20+

0

3

Echo 90070200022

RING, RETAINING - 22

Note: SRM-2110 TYPE 1E ONLY

$2.49

$

In Stock, Qty 14

0

4

Echo 90085806900

BEARING, BALL - 6900Z

Note: SRM-2110 TYPE 1E ONLY

$27.99

$

In Stock, only 2 left!

0

5

Echo 90085506900

BEARING, BALL - 6900

Note: SRM-2110 TYPE 1E ONLY

$21.99

$

In Stock, only 2 left!

0

6

Echo 61030044830

GEAR SET - BEVEL

Note: SRM-2110 TYPE 1E ONLY

$106.99

$

Usually ships in 2-4 days

0

7

Echo 90030020022

PIN, SPLIT - 2X22

Note: BULK OPTION: 89850201130 - 10 PACK

$0.99

$

In Stock, Qty 20+

0

8

Echo 90051100010

NUT - 10 -- LEFT HAND

Note: SRM-2110 TYPE 1E ONLY

$1.99

$

In Stock, Qty 20+

0

9

Echo C535000150

ADAPTOR, BLADE - LOWER

Note: SRM-2110 TYPE 1E ONLY

$10.99

$

In Stock, Qty 12

0

10

Echo 61033808930

ADAPTOR, BLADE - UPPER
(Superseded to C535000160)

Note: SRM-2110 TYPE 1E ONLY

$12.99

$

In Stock, Qty 18

0

11

Echo 61041307130

SEAL, OIL

Note: SRM-2110 TYPE 1E ONLY

$6.99

$

In Stock, only 1 left!

0

12

Echo 61031507130

SPACER

Note: SRM-2110 TYPE 1E ONLY

$4.49

$

Usually ships in 2-4 days

0

13

Echo 90070200032

RING, RETAINING - 32

Note: SRM-2110 TYPE 1E ONLY

$2.49

$

In Stock, only 2 left!

0

14

Echo 9403536201

BEARING, BALL - 6201

Note: SRM-2110 TYPE 1E ONLY

$9.99

$

Usually ships in 2-4 days

0

15

Echo 61036008931

GEAR - SHAFT
(Superseded to C534000270)

Note: SRM-2110 TYPE 1E ONLY

$80.99

$

In Stock, Qty 5

0

16

Echo 90070600012

RING, RETAINING - 12

Note: SRM-2110 TYPE 1E ONLY

$1.49

$

In Stock, Qty 20+

0

17

Echo 90080000609

BEARING, BALL - 609

Note: SRM-2110 TYPE 1E ONLY

$11.99

$

In Stock, Qty 5

0

18

Echo 61023904130

SHIM

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

19

Echo 90024205010

SCREW - 5X10

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

20

Echo 90010008008

BOLT - 8X8

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 10

0

21

Echo 90010005035

BOLT - 5X35

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 9

0

22

Echo 90060000005

WASHER - 5

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

23

Echo 90060500005

LOCKWASHER - 5

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 10

0

24

Echo 90050000005

NUT - 5

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

25

Echo 69900023431

DEBRIS SHIELD KIT - METAL
(Superseded to 69900023432)

Note: INCLUDES ITEMS 26-29; SRM-2110 TYPE 1E ONLY

$27.99

$

In Stock, only 2 left!

0

26

Echo 90050000005

NUT - 5

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

27

Echo 90060500005

LOCKWASHER - 5

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 10

0

28

Echo 90022005008

SCREW - 5X8

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, only 2 left!

0

29

Echo 90024205010

SCREW - 5X10

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 20+

0

30

Echo 89016844830

LABEL - CAUTION

Note: SRM-2110 TYPE 1E ONLY

$3.99

$

Usually ships in 2-4 days

0

31

Echo 89011848830

LABEL - ECHO
(Superseded to X502000320)

Note: SRM-2110 TYPE 1E ONLY

$0.99

$

In Stock, Qty 6

0
